bmcm MAL-UI Quick Start Manual

MAL-UI
Miniature amplifiers for voltage and current
Perfectly conditioned.
Voltage and current.
Voltage and current signals can optimally be ad-
justed to the input of a PC data acquisition system
with the miniature measuring amplifier MAL-UI.
It features a 5V sensor supply for connected sen-
sors.
Minimum size.
Great performance. Small price.

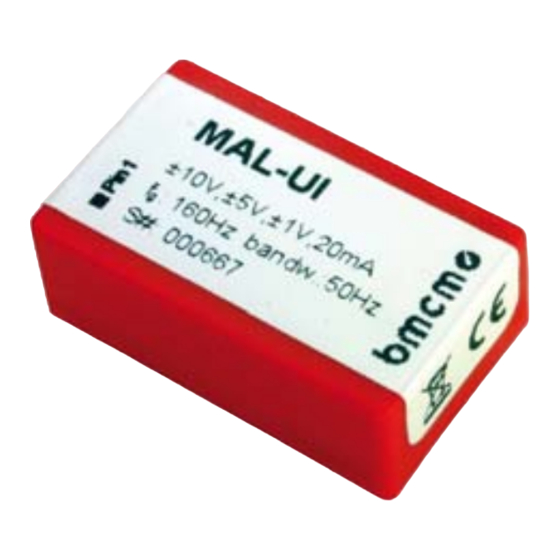

The miniature format of the MAL-UI is ideal to
realize measurement applications even if the in-
stallation is in problematic locations. Despite the
small size, the measuring amplifier features great
functionality. All this at a reasonable price.
±10V, ±5V, ±1V in. ±5V out.
Input ranges of ±10V, ±5V, or ±1V can be con-
figured for the MAL-UI via solder bridges. A
±5V signal proportional to the input signal is pro-
vided at the output.

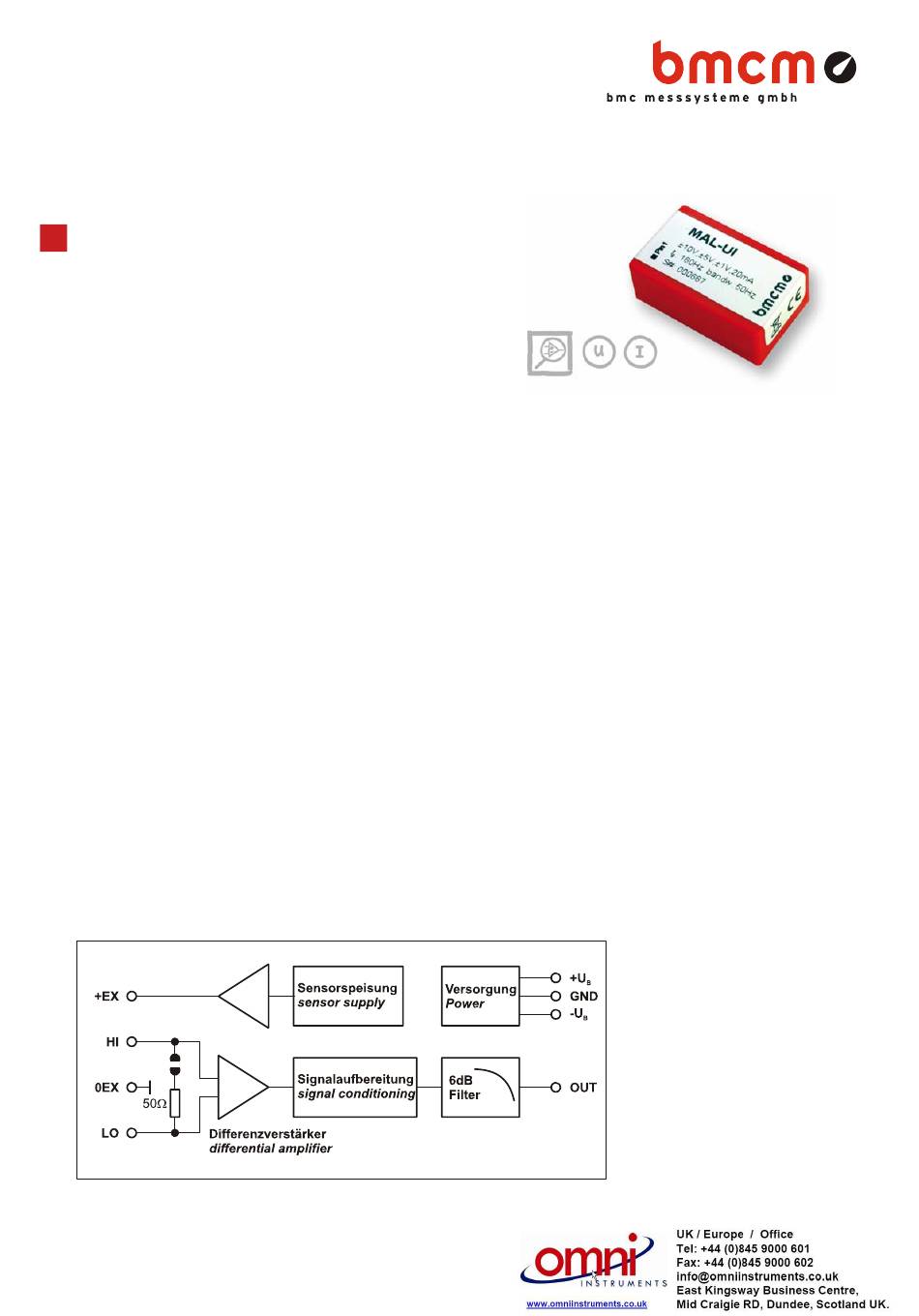

Functional diagram
Versatile.
In addition to signal conditioning of voltages, the
MAL-UI can be used for current measurement in
the ±20mA range. Changing the operating mode
is done via soldering bridges on the bottom side
of the board.
Compatibility.
The MAL series provides a great variety of
measuring amplifiers, measuring converters, or
filter modules. They can be used in any combina-
tion allowing for the solution of the most individ-
ual measuring tasks.
Get connected.
With the backplanes of the BP series varying in
size and design, signal connection is easy. The
modules just have to be plugged on the relevant
slot of the backplane.
