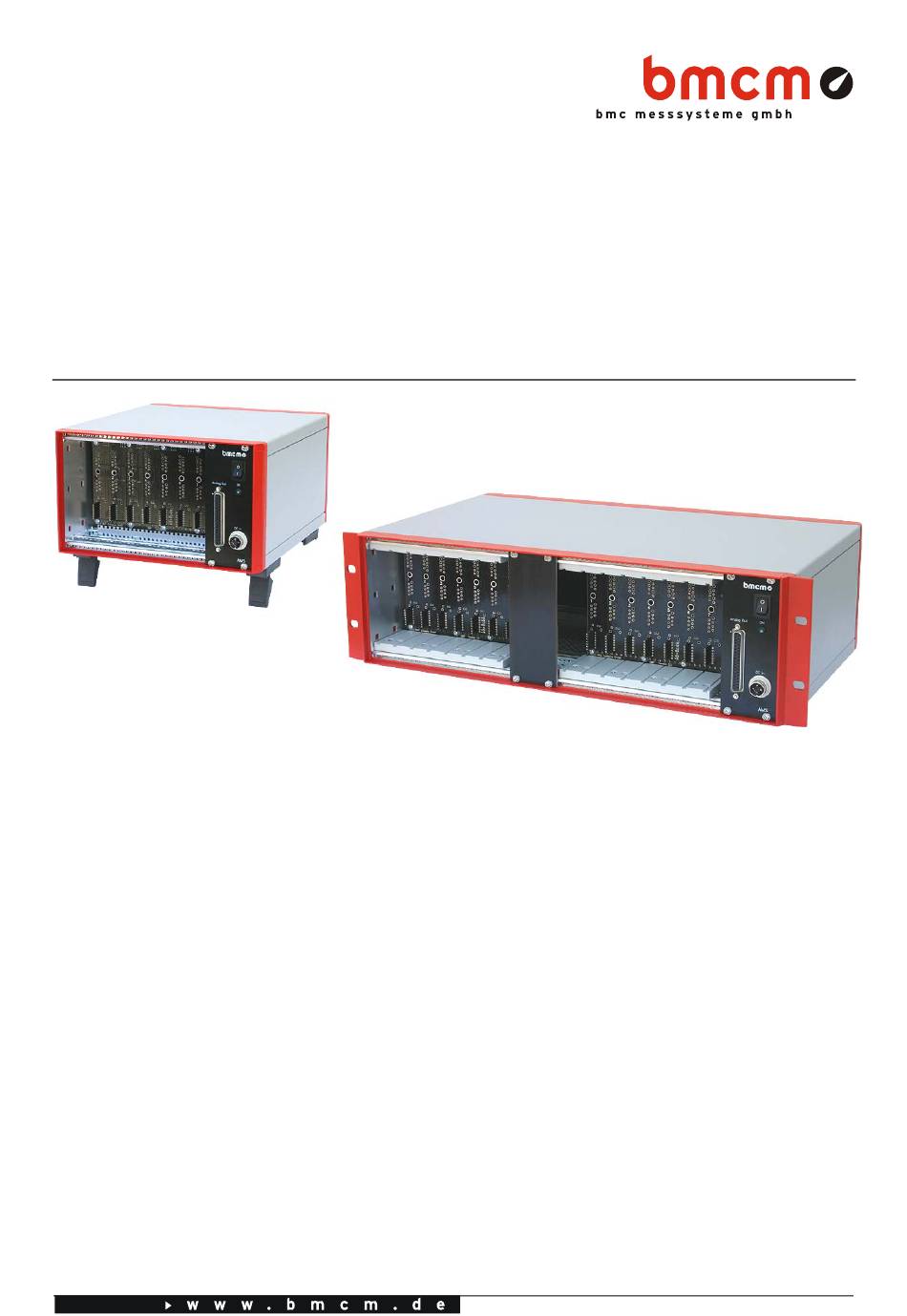

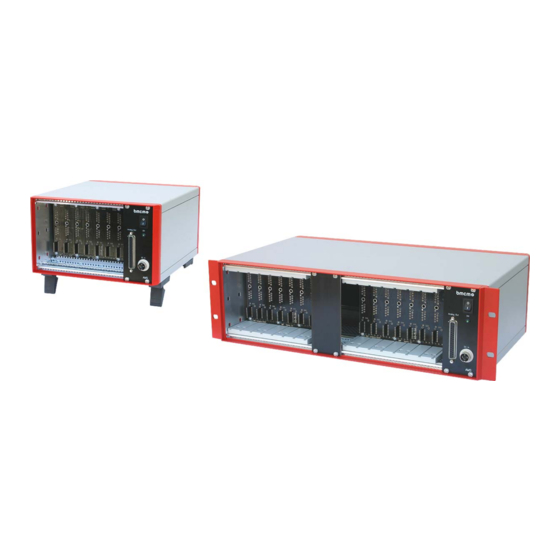

AMS42 / AMS84
Amplifier rack for 8 / 16 channels with 5B modules
Features
• 5B compatible
• AMS42:
8 channels, ½ x 19'' 3HE aluminum
housing (42TE), skid-proof retractable feet
• AMS84:
16 channels, 19'' 3HE module metal rack
(84TE)
• individual plug-in cassettes installable per channel
• power supply 9..45V
• options:
add. 8 channels, carrying handle
With the AMS42/AMS84 (Ampli-
fier Measurement System) BMC
Messsysteme GmbH introduces a
compact 19'' amplifier system in
19'' format accommodating
... 8 (AMS42) or 16 (AMS84)
5B modules ... .
With
the 8-channel extension
AMS-EXT8 the number of chan-
nels can optionally be increased to
16 (AMS42) or 32 (AMS84) at the
maximum.
The wide range of available 5B
modules provides for the solution
of most specific measuring tasks
with the AMS42/AMS84.
In particular, the 5B modules al-
low
... potential-free measurement ...,
Applications
• for all 5B modules
• stand-alone in connection with a
measuring system
• AMS84: for 19''-systems
which is essential for many appli-
cations.
If connected to a PC data acquisi-
tion
system
or
logger,
AMS42/AMS84 represents a uni-
versal and compact instrument for
the acquisition of measured data.
Besides that, the AMS84 can be
incorporated in a
... 19" 3 height module rack... .
The AMS42/AMS84 is equipped
with
... 8 (AMS42) or 16 (AMS84)
individual cassettes ... .
The relevant 5B module is moun-
ted on the cassette. The suitable
input connector at the cassette
bracket guarantees for the relevant
connection to be available when
exchanging the cassette.
the
... Power (9-45V) ...
is supplied by an external DC
power unit.
Provided with a metal housing the
AMS42/AMS84 impresses with
robustness and is perfect for mo-
bile and rough use.
In addition the AMS42 is equip-
ped with skid-proof retractable
feet.
The plug-in cassettes and all con-
nections are screwed tightly.
A handle (AMS-HANDLE) is op-
tionally available.
Page 1
Advertisement
Table of Contents
Summary of Contents for bmcm AMS42
- Page 1 Besides that, the AMS84 can be nels can optionally be increased to incorporated in a Provided with a metal housing the 16 (AMS42) or 32 (AMS84) at the AMS42/AMS84 impresses with maximum..19" 3 height module rack..robustness and is perfect for mo- bile and rough use.
- Page 2 2 Installation Equip the AMS42/AMS84 with the plug-in cassettes (see chapter 4.4) carrying the required 5B modules. Carefully push the cassette along the guide bars of the relevant slot until the 7-pole pin connector of the cassette and the pins of the 5B module are plugged into the corresponding connectors on the AMS backplane.
- Page 3 AMS84 are accessible on the right-hand side of the device front. 3.1 Switch and LED 37-pol. Sub-D Buchse With the switch the AMS42/AMS84 is turned on (press "1") and 37-pole Sub-D female off (press "0"). The LED directly below indicates the operation of the device.
- Page 4 The AMS backplane provides 8 slots for 5B modules and the AMS-K-xxx plug-in cassettes carrying the 5B modules. In the AMS84 two backplanes are integrated. If the optional add-on AMS-EXT8 is used, 8 (AMS42) or 16 (AMS84) slots each are available at the front and at the back of the device.
- Page 5 (AMS42) or 16 (AMS84) plug-in cassettes. With the option AMS- EXT8 a package of 8 extra channels can be added, so that the AMS42 can be extended to 16 channels, the AMS84 to 32 chan- nels at the maximum. Each cassette is equipped with the relevant 5B module and suitable input connector, thus providing the relevant connection to be avail- able when exchanging the cassette.
- Page 6 Do not dispose of the product in the domestic waste or at any waste collection places. It has to be either duly disposed according to the WEEE directive or can be returned to bmcm at your own expense. 6 Technical data AMS42/AMS84 (typical at 20°C and 24V supply) •...
