IMPORTANT - RETAIN FOR FUTURE REFERENCE - READ CAREFULLY.
Tools Needed
Helpline
If you have any problems with this product or require
any replacement fittings please contact Customer
Services Tel: 0333 777 8999
Regrettably self assembly items cannot be returned once assembly is part or fully completed unless the item is
found to be faulty. Should you need to return the unassembled product, please repack in the original packaging.
IMPORTANT
• We suggest you spend a short time reading through this leaflet and then follow the simple step-by-step
instructions.
• Carefully check that you have all parts before beginning assembly.
• Keep fittings out of children's reach and keep children well away from the construction area.
• We recommend that the packaging is used to protect the surfaces during assembly.
• A minimum of 2 persons is required to assemble this product.
PRODUCT INFORMATION
• Made from Pine with lacquer finish.
• Made in China.
• Natural features ensure that each piece is individual. Every effort is made to ensure colour continuity between
pieces, however this is a natural product, slight colour variations and natural grain markings may occur.
CARE INSTRUCTIONS
• For general cleaning, periodically dust with a soft cloth.
• Do not rub or scrub the surface when cleaning.
• Always use a non-silicone based furniture polish. Silicone in furniture polishes can break down the lacquer finish.
• Any spills should be removed immediately with a soft clean damp cloth and dried immediately.
• Ensure the product is protected with mats and coasters when items are placed on the surfaces, to prevent
scratching or damage.
• Do not put hot dishes directly on the surfaces of the item.
• Avoid keeping furniture in direct sunlight or close to any heat sources as this can cause cracking, discolouration
or warping.
• Never drag pieces of furniture across the floor as this will cause damage to the joints.
• All assembly fixings should always be tightened properly and periodically check all fixings and tighten if
necessary.

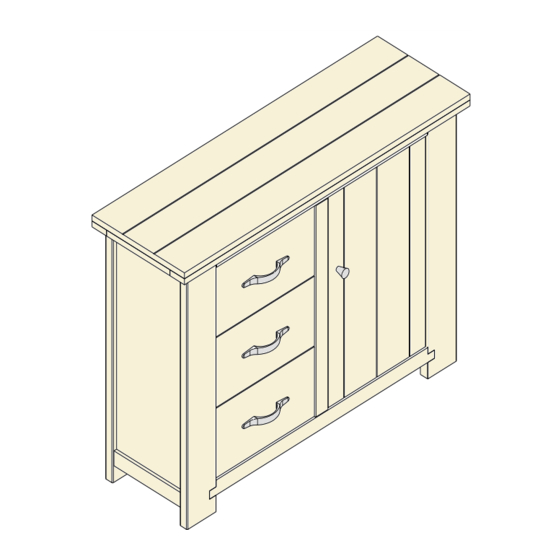

116911 HARTFORD PAINTED SMLSDBO
ASSEMBLY INSTRUCTIONS.
Page 1 of 10

Advertisement

loading
Need help?

Need help?

Do you have a question about the 116911 HARTFORD PAINTED SMLSDBO and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Next 116911 HARTFORD PAINTED SMLSDBO

  • Page 1 116911 HARTFORD PAINTED SMLSDBO ASSEMBLY INSTRUCTIONS. IMPORTANT - RETAIN FOR FUTURE REFERENCE - READ CAREFULLY. Tools Needed Helpline If you have any problems with this product or require any replacement fittings please contact Customer Services Tel: 0333 777 8999 Regrettably self assembly items cannot be returned once assembly is part or fully completed unless the item is found to be faulty.
  • Page 2 FITTINGS PARTS Page 2 of 10...
  • Page 3 STEP ONE 1. Insert 13 x cambolts (A) into top panel 1. 2. Insert 3 x cambolts (A) and 8 x dowels (E) into side panel 3. 3. Insert 4 x cambolts (A) and 2 x dowels (E) into rail 4.
  • Page 4 STEP THREE 1. Insert 2 x cambolts (A) into rail 11. 2. Insert 8 x cambolts (A) into leg 6. 3. Insert 5 x cambolts (A) into leg 4. 4. Attach 2 x hinges (I) to leg 4 using 4 x screws (R). Tighten with a screwdriver.
  • Page 5 STEP FIVE 1. Attach legs 2 & 4 to panel 3. 2. Insert 8 x camlocks (B) into panel 3. Ensure the arrow indicators on the camlocks are pointing towards the panel edges and ensure the assembly bolts locate properly into the camlocks before turning clockwise with a screwdriver to tighten.
  • Page 6 STEP SEVEN 1. Attach rail 9 to panel 8. 2. Insert 4 x camlocks (B) into panel 8. Tighten with a screwdriver. STEP EIGHT 1. Attach rail 11 to panel 12. 2. Insert 2 x camlocks (B) into panel 12. Tighten with a screwdriver STEP NINE 1.
  • Page 7 STEP TEN 1. Attach side panel 2, 3 & 4 and side panel 5, 6, & 10 to rail 7 and panel 12. 2. Insert 8 x camlocks (B) into rail 7 and panel 12. Tighten with a screwdriver. STEP ELEVEN 1.
  • Page 8 STEP THIRTEEN 1. Insert 4 x cambolts (A) into drawer front 18. 2. Attach drawer sides 19 & 20 to drawer front 18. 3.Insert 4 x camlocks (B) into drawer sides 19 & 20. Tighten with a screwdriver. 4. Slide drawer bottom 22 into the grooves of drawer sides 19 &...
  • Page 9 STEP FOURTEEN 1. Insert 4 x pin supports (L) into panels 3 & 8. Ensure they are at the same height. 2. Insert shelf 15 onto the pin supports within the unit. STEP FIFTEEN 1. Attach back panels 16 & 17 to the assembled unit using 18 x screws (K) and 4 x washers (S).
  • Page 10 5. NOTE: Wall fixings are not included, please source suitable fixings for your wall type. If in doubt, please consult a qualified tradesman. Next Retail Ltd, Desford Road, Enderby, Leicester, LE19 4AT Page 10 of 10...
