5.1 Breaker Panel Interface Replacement (alarm strip)

This procedure outlines how to remove and replace the breaker panel interface boards (P/N 7050244-001).
The alarm strip boards are difficult to install when the breakers are in place. It is recommenced that all breakers
be removed before installing the alarm strips.
WARNING!
Hazardous voltages are present at the input of power systems. The DC output from rec-
tifiers and batteries, though not dangerous in voltage, has a high short-circuit current
capacity that may cause severe burns and electrical arcing.
• Before working with any live battery or power system, follow these precautions:
a. Remove all metallic jewelry, such as watches, rings, metal rimmed glasses, or necklaces.
b. Wear safety glasses with side shields at all times during the installation.
c. Use OSHA approved insulated hand tools.

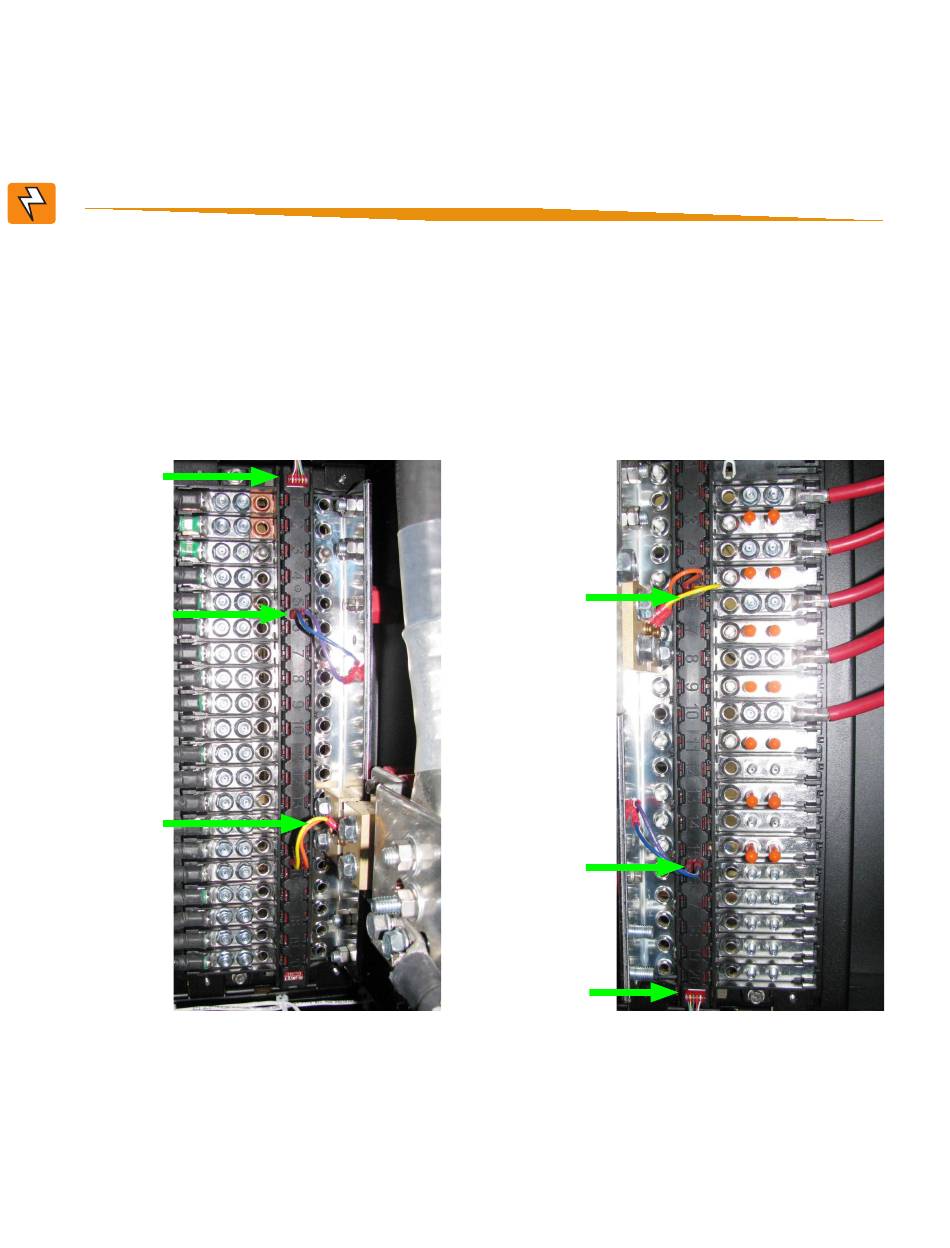

Quick Disconnect
Voltage Sensor
Shunt
9400009-J0 Rev K
Left side
Shunt
Voltage Sensor
Quick Disconnect
Right side
67
