ULS ULSHIM Manual

18 x 15 watt rgbwa+uv pixel map
Hide thumbs Also See for ULSHIM:

Advertisement

Quick Links

Download this manual

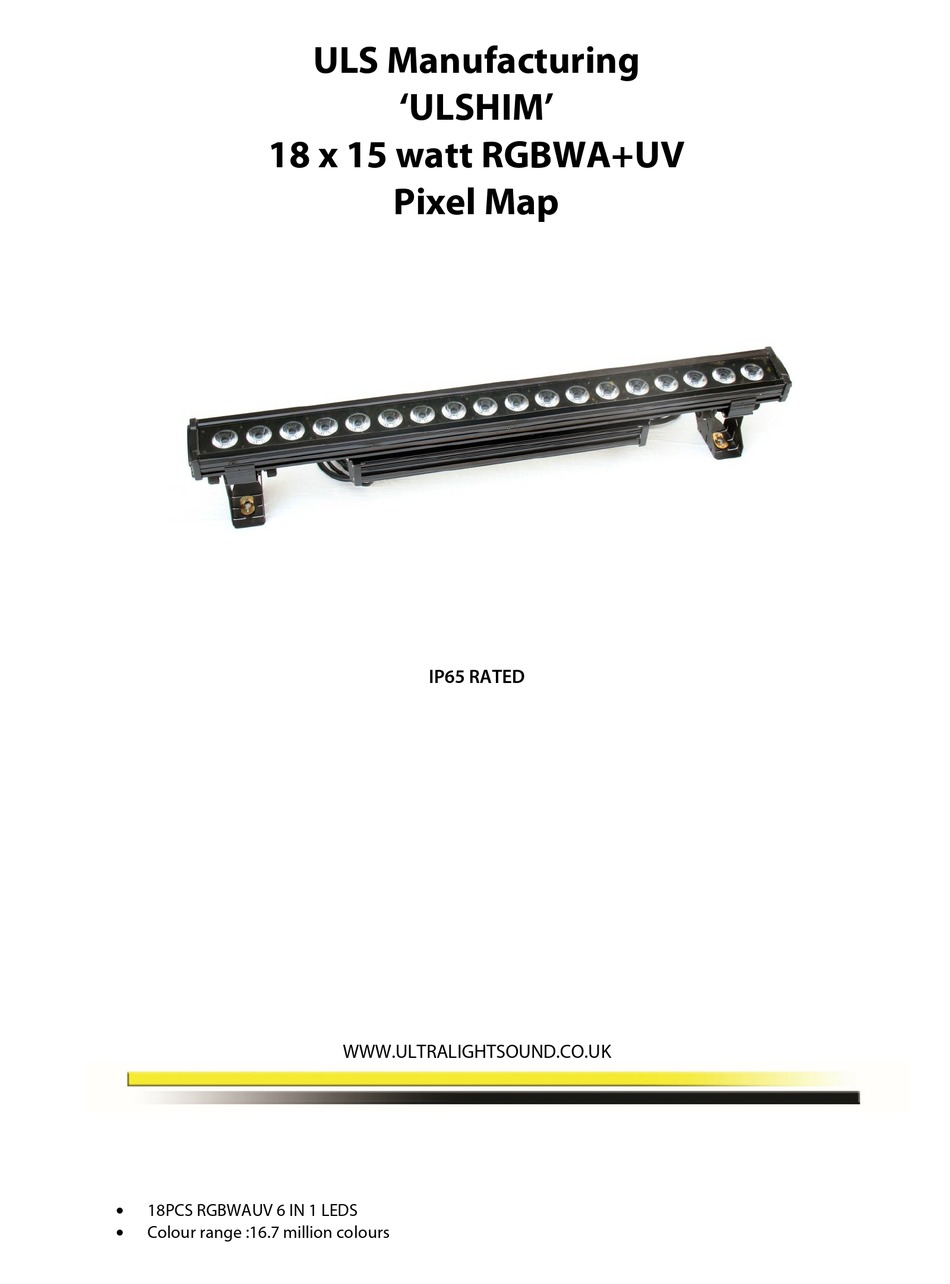

18 x 15 watt RGBWA+UV
18PCS RGBWAUV 6 IN 1 LEDS
Colour range :16.7 million colours
ULS Manufacturing
'ULSHIM'
Pixel Map
IP65 RATED
WWW.ULTRALIGHTSOUND.CO.UK

Advertisement

loading
Need help?

Need help?

Do you have a question about the ULSHIM and is the answer not in the manual?

Questions and answers

Related Manuals for ULS ULSHIM

Summary of Contents for ULS ULSHIM

  • Page 1 ULS Manufacturing ‘ULSHIM’ 18 x 15 watt RGBWA+UV Pixel Map IP65 RATED WWW.ULTRALIGHTSOUND.CO.UK  18PCS RGBWAUV 6 IN 1 LEDS  Colour range :16.7 million colours...
  • Page 2  Beam Angle: 25 degree  Life 50,000 hours  Dimmer : 0 -100% with regulated constant colour control  Strobe: 10 flashes per second  Control panel: 4 digit led segment display  Supply volts 90-240v AC 50/60hz  Waterproof IP65 ...

  • Page 3: Risk Of Electric Shock

    Should the fuse in the plug need replacing ensure a 3amp fuse with a British kite mark is used. ULS manufacturing will not accept liability for any damages caused by the non-observance of this manual, or any modification to this device.
  • Page 4 Rugged Design and build for out on the road use with a feature set to rival existing products on the market. Key features Dmx control modes 11, 29, 119, 108 and Dmx channel modes Pixel mapping ability with individual Dmx control of 6 colours per led. On board standalone control of patterns, chases and fixed colours.
  • Page 5 11 Channel Dmx Mode control of each colour available from channel 5 channel Strobe speed 6 - 11 Master dmx 1 dimmer dmx 2 Strobe open - fast Chases from channel 3 generally are more complex with longer sequence times to complete each loop dmx 3 0-035...
  • Page 6 speed of each colour available from channel 6 - 11 dmx 4 0-035 no function    036-045 chase effect 1    046-060 chase effect 2    061-075 chase effect 3    076-090 chase effect 4 ...
  • Page 7 Master dmx 1 dimmer dmx 2 Strobe open - fast Chases from channel 3 generally are more complex with longer sequence times to complete each loop dmx 3 0-035 no function Waterfall effect sharp – set your    036-045 own colour Waterfall effect fade –...
  • Page 8 channel 6 - 11 dmx 4 0-035 no function    036-045 chase effect 1    046-060 chase effect 2    061-075 chase effect 3    076-090 chase effect 4    091-105 chase effect 5 ...
  • Page 9 Chases from channel 3 generally are more complex with longer sequence times to complete each loop dmx 3 0-035 no function Waterfall effect sharp – set your    036-045 own colour Waterfall effect fade – set your  ...
  • Page 10 dmx 4 0-035 no function    036-045 chase effect 1    046-060 chase effect 2    061-075 chase effect 3    076-090 chase effect 4    091-105 chase effect 5 ...
  • Page 11 Uv - 18 0 - 100% ULS Manufacturing is a trading name of Ultra Light & Sound Limited. UK based with readily available spares and new units in the UK. This product was designed and manufactured in the UK by ULS Manufacturing.
  • Page 12 This symbol indicates that this piece of electrical equipment must be disposed of separately from normal waste at the end of its operational life. Please dispose of this produced by contacting ULS manufacturing or taking it to your local recycling or collection...
