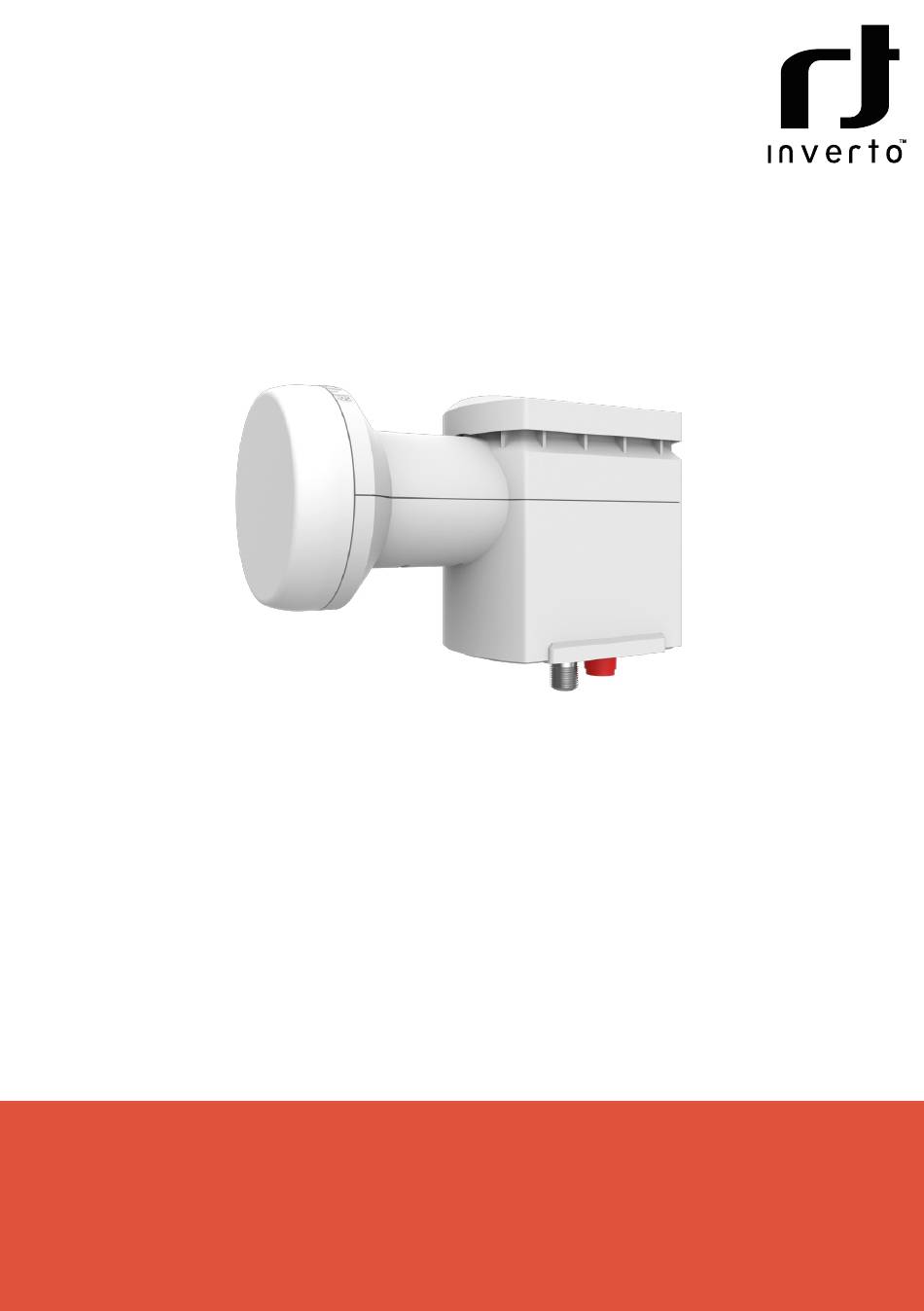

- Page 1 Unifiber ™ 1310nm Optical LNB with 10.40\10.41GHz LO IDLF-OPL410-1314X-OPR Item:6286, 6295 User manual...
- Page 2 Product description Wideband 40 mm low noise down converter units 6286, 6295 are dedicated for operation with the Inverto Unifiber optical receivers in satellite-only installations that do not require distribution of DTT signal. Safety instructions ■ Installation of the products must be done according IEC60728-11 and national safety standards.
-
Page 3: Installation Instructions
Optical connections Note: All optical connectors and adapters should be cleaned before connecting them. If optical reception power of the receiver decrease, fiber connection should be cleaned and maintained. Reel cleaners or prepackaged lint free wipes or swabs with alcohol are the most convenient means of cleaning optical connectors. -
Page 4: Technical Specifications
Requirements for external power supply unit (PSU) ■ Output voltage +20 V ± 1 V ■ Output current Recommended to use PSU with 50% extra power reserve ■ Ripple at single and/or double < 10 mV p-p mains frequency ■ Ripple & noise <... - Page 6 For purpose of brevity, some product descriptions in this sheet remain at platform level and may not be referred to as de- tailed datasheets of the products. Inverto Digital Labs reserves the right to amend, omit or add products, product-lines, and / or features without notice.
