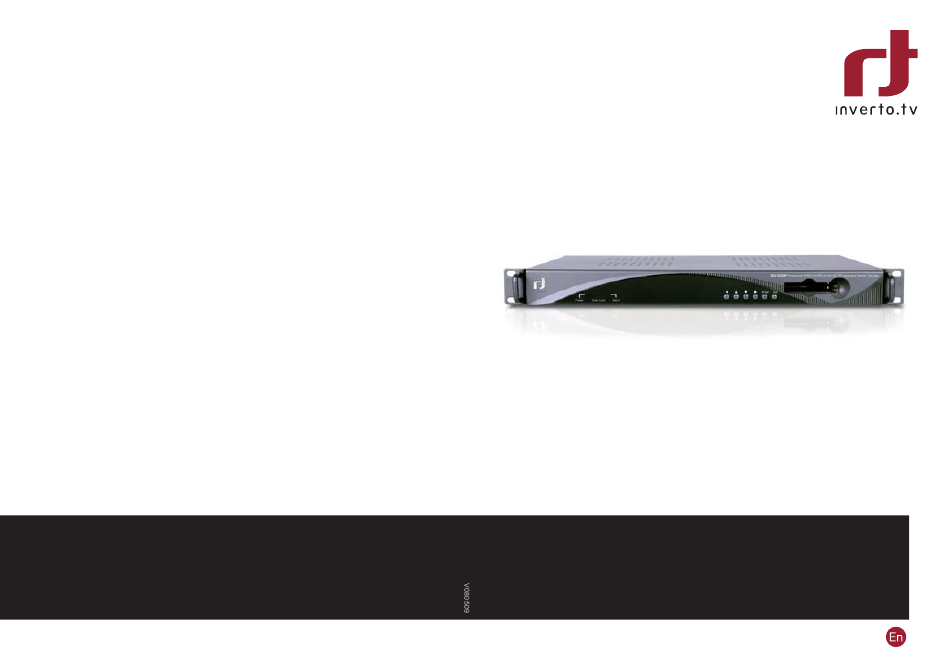

- Page 1 IDLV-5000P FTA Communication Technologies 18 Duchscherstroos, L-6868 Wecker, Luxembourg Professional MPEG-2/MPEG-4 AVC SD/HD Tel: +352 264 367 1 Fax: +352 264 313 68 Integrated Receiver Decoder e-mail: info@inverto.tv Web: www.inverto.tv...
- Page 2 IDLV-5000P Professional MPEG-2/ MPEG-4 AVC SD/HD Integrated Receiver Decoder User Manual Model IDLV-5000P...
-
Page 3: Table Of Contents
Table of Contents BEFORE USE THE DEVICE INTRODUCTION INSTALLATION Inspection Operating voltage The fuses Connecting up the device Power on the device NAVIGATING THE FRONT PANEL MENU STRUCTURE AND OPERATING THE DEVICE Inputs menu Outputs menu System menu TECHNICAL SPECIFICATIONS Input Output I/O interface... -
Page 4: Before Use The Device
Do not remove the covers of this equipment. Hazardous voltages are present within this equipment and may be exposed if the covers are removed. Only Inverto trained and approved service engineers are permitted to service this equipment. -
Page 5: Introduction
The IDLV-5000P is full compliant with MPEG-2 (MP@ ML& MP@HL), H.264 and DVB-S2/S/-C/-T standards. With a wide choice of input options for all transmission mediums, the IDLV-5000P provides significant benefits and the maximum flexibility for professionals who wish to migrate their operations from MPEG-2 SD to H.264 HD. -
Page 6: Installation
3. Installation 3.1 INSPECTIoN Open the packaging box, check if all accessories are in the box according to the packing list, and if the device has any visible damage, please contact the agent. 3.2 oPERATING VoLTAGE Do not connect AC power until you have verified that the line voltage is correct and the proper fuses are installed. -
Page 7: Power On The Device
If no message is shown in the display or there is not light in the display, the device is defective and has to be returned for servicing. 4. Navigating the Front Panel IDLV-5000P Professional MPEG-2/MPEG-4 AVC SD/HD Integrated Receiver Decoder Enter... -
Page 8: Inputs Menu
5.1 INPUTS MENU There are four options: Status, DVB-S2, RSSI and Ethernet (optional): Inputs Status DVB-S2 RSSI Ethernet 5.1.1 Status Menu It contains four options, ASI1, ASI2, TUNER and IP IN, to show the status of signal input: • ASI1: When signal from ASI1 input port is locked, it will display package format and code rate;... -
Page 9: Outputs Menu
• Multicast IP Addr: Enter the IP address of the multicast stream for the transport stream over IP. • Multicase UDP Port: Enter the UDP port number of the TS over IP stream. • Protocol: select the protocol for multicast: UDP or RTP. •... - Page 10 • Program: under this sub menu, you will see all program names detected by IDLV-5000P. The programs could be coming from ASI input, Tuner, TS/IP input, the internal CI de-encryption block, BISS De-encryption block or MUX TS. Use the <UP> or <DOWN> key to roll up or down between the program names, and use <LEFT>...
- Page 11 <ENTER> key to enter ‘Mux List’ sub-menu. • It shows all programs detected by IDLV-5000P. The programs could be come from ASI input, Tuner, TS/IP input or the internal CI de-encryption block. Use <UP> <DOWN> keys to roll up the program names, and use <LEFT>...
- Page 12 ‘Multicast IP’ on the first row, the stream itself is Unicast. The IP address of receiver device (maybe PC with VLC) needed to be set to as the unicast address on IDLV-5000P, please don’t use DHCP to get a dynamic IP address for receiver device.
-
Page 13: System Menu
Setup Each IDLV-5000P has an IP address, a network sub mask and a gateway. These must be set to an appropriate value for the network over which the unit can be accessed by the remote control system such as the HDMS. -
Page 14: Faq
• Decoder version: show Decoder version • FPGA version: show FPGA version • TS/IP IN (or OUT) NIOS: it’s changed when TS/IP board is set to “IP Out” or “IP IN”. • TS/IP IN (or OUT) FPGA: it’s changed when TS/IP board is set to “IP Out” or “IP IN”. 5.3.5 Factory Setting All the user configurable parameters will be set to the factory default settings, including IP address and the unit name. -
Page 15: Technical Specifications
7. Technical Specifications INPUT DVB-S2 QPSK/8PSK Demodulation Input frequency range 950~2150MHz Input level -65~-25dBm Input impedance 75Ω Connector F Connector Symbol rate 5~45Msps for QPSK; 10~31Msps for 8PSK Rolling off factor 0.35 for QPSK; 0.35, 0.25, 0.2 for DVB-S2 Punctured rates DVB-S2 QPSK: 1/2,3/5,2/3,3/4,4/5,5/6,8/9,8/10 DVB-S2 8PSK: 3/5,2/3,3/4,5/6,8/9,9/10 DVB-S: 1/2,2/3,3/4,5/6,6/7,7/8... -
Page 16: I/O Interface
2 x 9 pins D-type connector (optional) GENERAL Power supply AC 90V~250V 50Hz/60Hz Net weight 5Kg Dimensions 483x255x44mm ° Operating temperature 0~45C ° Storage temperature 20~70C Accessory List IDLV-5000P-xx User Manual Power Cord RCA A/V Cable BNC Cable RS232-to-XRL cable 2pcs...
