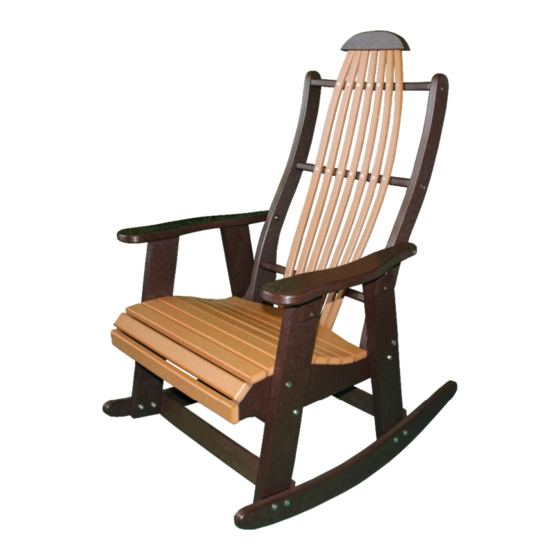

- Page 1 Blue Ridge Bent Back Rocker Instruction Manual P/N: FF-BRRO Buck Stove, New Buck Corp |200 Ethan Allen Dr, Spruce Pine, North Carolina 28777, United States | (828) 765-6144 | www.buckstove.com...
-
Page 3: Included Parts
Included Parts 2.5in Bolt 3in Bolt 3.5in Bolt Washer 1.25in 4PCS 2PCS 4PCS 18PCS 10PCS Screw 1.625in Left/Right Leg/Arm Back Seat Rear Front/Rear Screw Assembly Assembly Assembly Cover Brace 8PCS 2PCS 1PCS 1PCS Strip 2PCS *Hardware without piece count comes preinstalled (F, G[1], K) -
Page 4: Required Tools
Required Tools 7/16 Socket Wrench 7/16 Wrench #2 Square Bit... - Page 5 Assembly Instructions Step 1 Unscrew the loosely attached 1.25 in(F) & 1.625 in(G) screws, and remove the rear cover strip (K) and place aside for final assembly. Step 2 Begin the assembly process by placing the chair in the orientation shown to the right, with the back (I) and seat assembly (J) on their side.
- Page 6 Step 3 Align the holes on the arm assembly (H) with the holes going through the back (I) and seat assemblies(J). Step 4 Insert the 3.5 inch bolt (C) through a washer (D) and into the leg/arm (H), back (I) and seat (J) assemblies.
- Page 7 Step 5 Insert the 2.5 inch bolt (A) through a washer (D) and into the leg/arm (H) and seat (J) assemblies. Step 6 On the back side of the bolts (A & C) that were inserted through the seat (J), place a washer and then thread a nut onto all of the bolts placed in steps 3-4.
- Page 8 Step 8 On the back side of the bolt placed in step 6 (B), place a washer (D) and then thread a nut (E) onto the bolt. Tighten with a 7/16 socket and wrench. Step 9 Repeat steps 1-7 for other leg/arm assembly (H) of chair.
- Page 9 Step 12 Align the holes that are predrilled in the rear of the leg/arm assembly (H) with the holes in the rear brace (L). Using the provided 1.625 inch screws (G) attach the rear brace (L)to the leg/arm assemblies (H). The screws are a #2 Square bit.
