BEX ProBEX PBO Instruction Sheet

MULTIBEX CRIMP TOOL WITH ROTATIONAL DIES
Country of origin: Croatia (EU)
Manufacturer: BEX d.o.o., Mučići 37b, 51213 Jurdani
INSTRUCTION MANUAL
1.

INTRODUCTION AND TOOL FEATURES

2. CONFIGURATION OF THE TOOL
3. DIE SET CHART
4. STRIPPING OF WIRE OUTER INSULATION
5. WORKING WITH DIE SET
6. CRIMPING PROCEDURE
7. UNBLOCKING THE TOOL
8. TOOL REGULATION PROCEDURE
9. MAINTENANCE AND INSPECTION
10. WARRANTY
1. INTRODUCTION AND TOOL FEATURES
1.1. Instruction sheet provides application and maintenance procedures for Probex hand tool with die sets. The hand tool consists of
the die assembly and hand tool frame assembly. Die assembly can be purchased separately or with the hand tool.
❑
With this tool only plugs of appropriate type have to be used. Crimping plugs of unsuitable type may result with unsatisfactory
characteristics of crimped connections and eventually with damaging of the tools and is to be strictly avoided.
1.2. FEATURES
❑
Each insert can crimp 4 crossections
❑
Crimp nests are fully machined in high carbon steel, heat treated and nickel coated
❑
Quality crimp due to parallel crimping performance
❑
Precise eccentric adjustment
❑
Safety ratchet relief

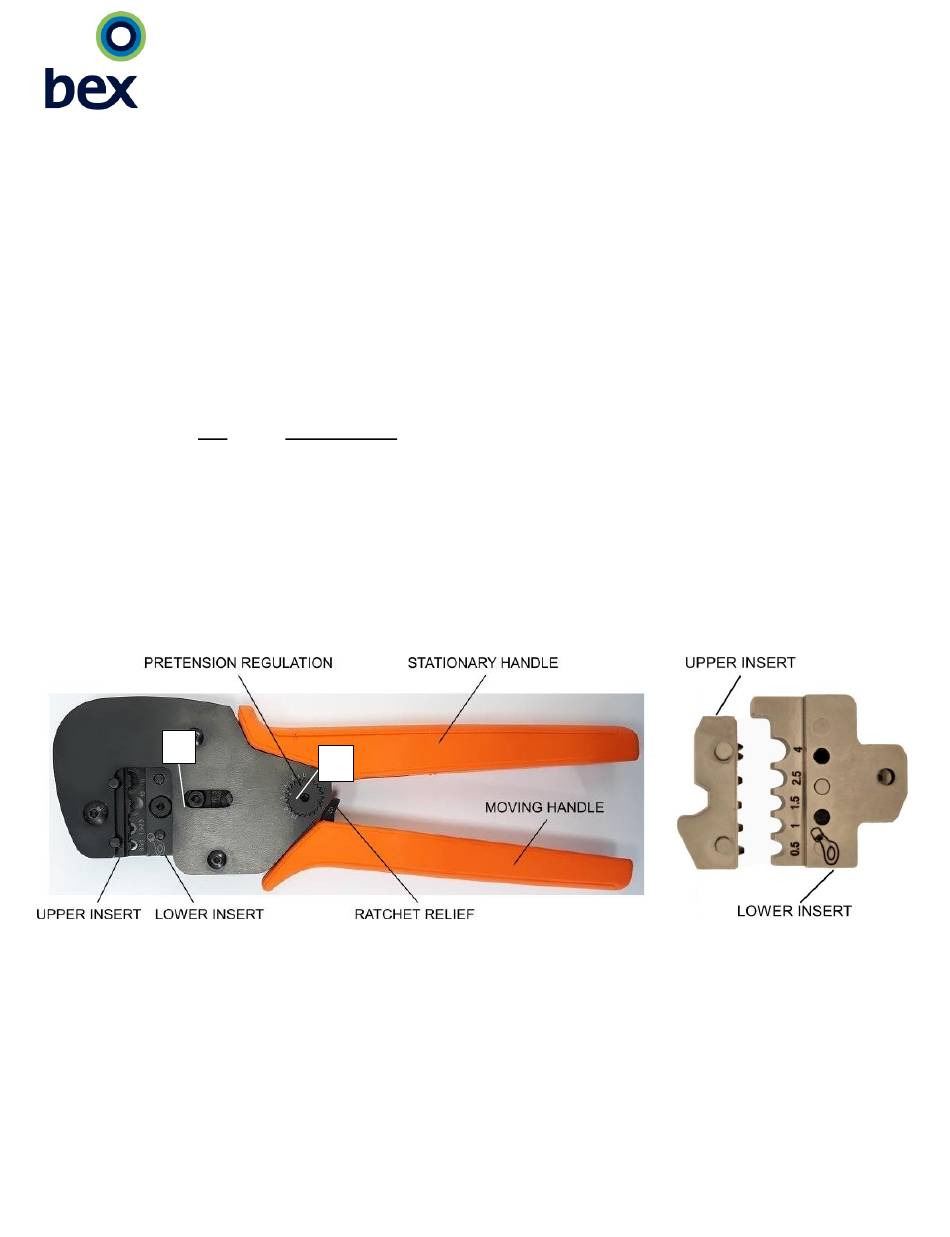

2. CONFIGURATION OF THE TOOL
A
-1-
B
Fig. 1
Instruction Sheet
ProBEX PBO
06 SEP 22 REV 00
Fig. 2
