MULTIBEX CRIMP TOOL WITH ROTATIONAL DIES
Country of origin: Croatia (EU)
Manufacturer: BEX d.o.o., Mučići 37b, 51213 Jurdani
INSTRUCTION MANUAL
1.
INTRODUCTION AND TOOL FEATURES

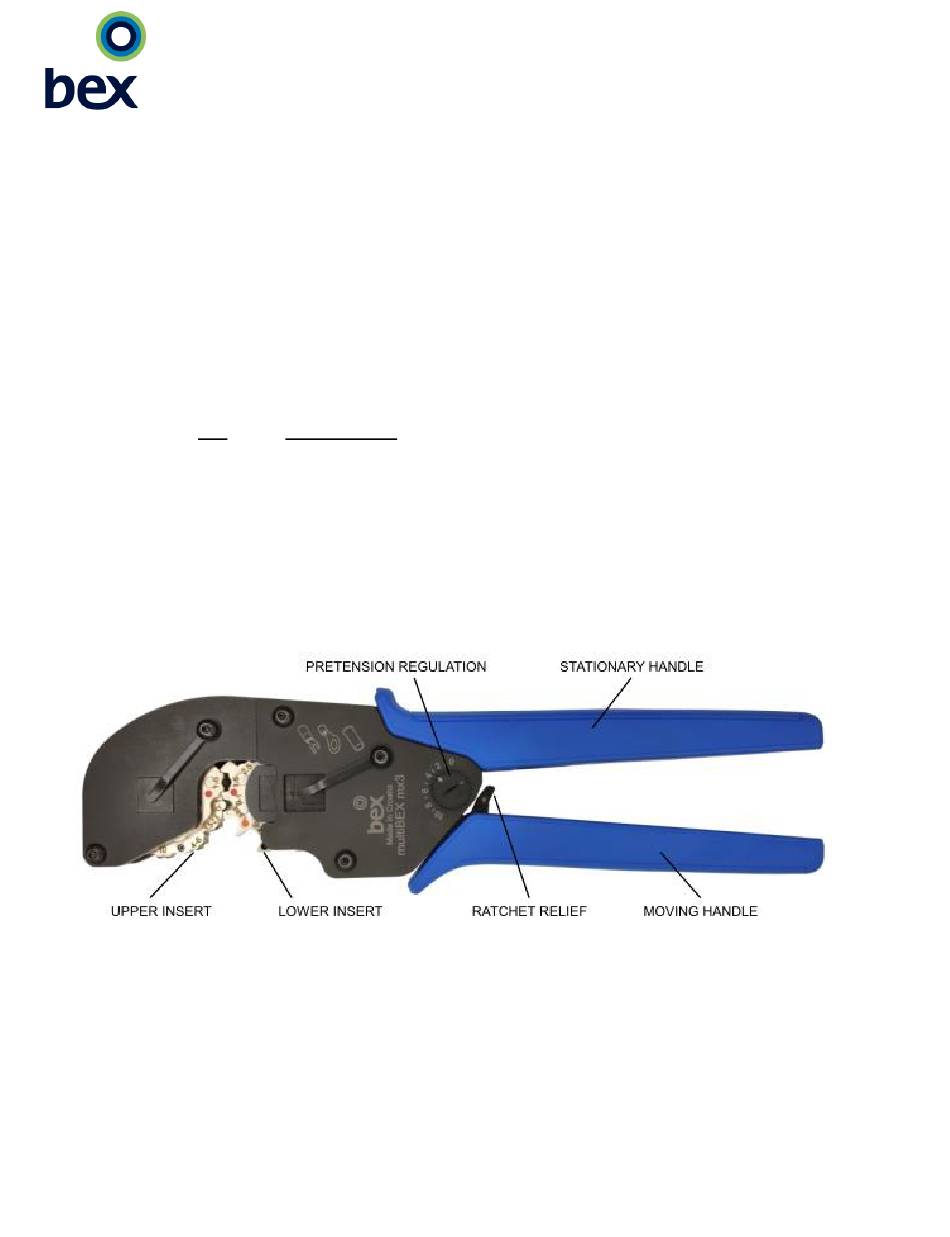

2.
CONFIGURATION OF THE TOOL
3.
STRIPPING OF WIRE OUTER INSULATION
4.
TERMINAL CHART
5.
WORKING WITH DIE SET
6.
CRIMPING PROCEDURE
7.
UNBLOCKING THE TOOL
8.
TOOL REGULATION PROCEDURE
9.
MAINTENANCE AND INSPECTION
10. WARRANTY
1.
INTRODUCTION AND TOOL FEATURES
1.1. Instruction sheet provides application and maintenance procedures for Multibex hand tool with inserts. The hand tool consists
of the insert assembly and hand tool frame assembly.
❑
With this tool only plugs of appropriate type have to be used. Crimping plugs of unsuitable type may result with unsatisfactory
characteristics of crimped connections and eventually with damaging of the tools and is to be strictly avoided.
1.2. FEATURES
❑
Each insert can crimp 16 sleeve crossections
❑
Crimp nests are fully machined in high carbon steel, heat treated and nickel coated
❑
Quality crimp due to parallel crimping performance
❑
Precise eccentric adjustment
❑
Safety ratchet relief
2.
CONFIGURATION OF THE TOOL
3.
STRIPPING OF WIRE OUTER INSULATION
Correct stripping length: Cable stripping dimension should be as specified by plug manufacturer.
Sleeve should be free from any damage or broken strands.
The center conductor and crimp sleeve measures must be within the manufacturer's specifications.
-1-
Instruction Sheet
MultiBEX mx3
06 SEP 22
REV 00
Fig. 1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for BEX MultiBEX mx3
Summary of Contents for BEX MultiBEX mx3
- Page 1 Instruction Sheet MULTIBEX CRIMP TOOL WITH ROTATIONAL DIES MultiBEX mx3 Country of origin: Croatia (EU) Manufacturer: BEX d.o.o., Mučići 37b, 51213 Jurdani 06 SEP 22 REV 00 INSTRUCTION MANUAL INTRODUCTION AND TOOL FEATURES CONFIGURATION OF THE TOOL STRIPPING OF WIRE OUTER INSULATION...
- Page 2 WORKING WITH DIE SET MultiBEX mx3 crimp tool consist of two rotational inserts. Inserts should be adjusted by pressing the release pin as shown in Fig. 3 and rotating until reaching the right value. Rotation is possible in both ways. Handle should be open before die set rotating. Upper and lower part of die set should be set to the same value to achieve the proper crimping.
- Page 3 MULTIBEX CRIMP TOOL WITH ROTATIONAL DIES MultiBEX mx3 Country of origin: Croatia (EU) Manufacturer: BEX d.o.o., Mučići 37b, 51213 Jurdani 06 SEP 22 REV 00 In case the tool becomes block for any reason, please follow unblocking procedure described in section 7.
- Page 4 ❑ Crimping handtool MultiBEX mx3 is intended to be used for crimping end sleeves, insulated and uninsulated terminals. Using this handtool for any other purpose, or for crimping of any other objects, can result in damaging the tool and the objects being crimped and prevention of its normal further functioning, for what manufacturer cannot be held responsible.
