SOKOYO CAPSOL KY-Y-YY-001 Installation Manual

Installation Manual For CAPSOL
SOKOYO
All In One Solar Garden Light
Light up every road back home

1. Instruction

This model includes solar panel, lithium battery, controller and LED light source.
You can assembly it easily according to the product label.
2.Application
Mainly used for lighting in public places such as countryside roads, branch roads, family
yards, tourism areas, parking lots, parks and public squares.

3. Specification

Lamp Photo
Model No.
Light Source
Solar Panel
Lithium Battery
Rated Power
Color Temperature
Light Efficiency
CRI
Working Environment
Lamp Dimension
IP Rate
Lamp Weight
Packing Dimension
KY-Y-YY-001
Bridgelux 3030
5V/17W Mono PV
LiFePO4 3.2V/30AH
10W
6000K
110LM/W
Ra≥70
-10 ℃～ +60 ℃
660x189x67mm
IP65
3.75KG
711x117x240mm

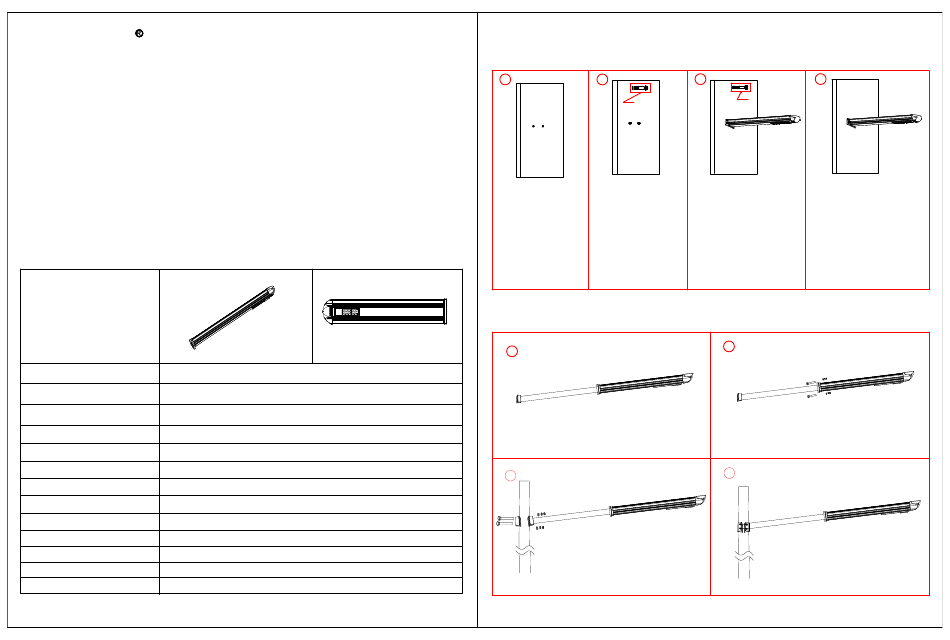

4. Installation Process

Installation process for Wall-mounted CAPSOL.
1 2
φ8mm
expansion Bolts
1. Drill 2 φ9mm holes Punch two φ8mm
on a wall, as expansion Bolts into
selected; the holes and lock
2. Ensure that the them tightly.
selected location has
sufficient sunlight.
Installation process for CAPSOL with arm.
1
Connect the lamp to the support arm.
3
Place the arm hoop tightly on
the position to be installed,
then align the other hoop with
the hoop on the arm, and lock
it with screws.
3
4
φ8mm
expansion Bolts
Align the mounting holes
Installation is completed
of the base with the
after the above steps.
expansion Bolts and put
the Bolts in. Secure the
Bolts with washers and
nuts in the following
sequence: flat washers,
spring washers and finally
nuts. Tighten.
2
Put on the screws and tighten them
4
Installation is completed after
the above steps.
.
