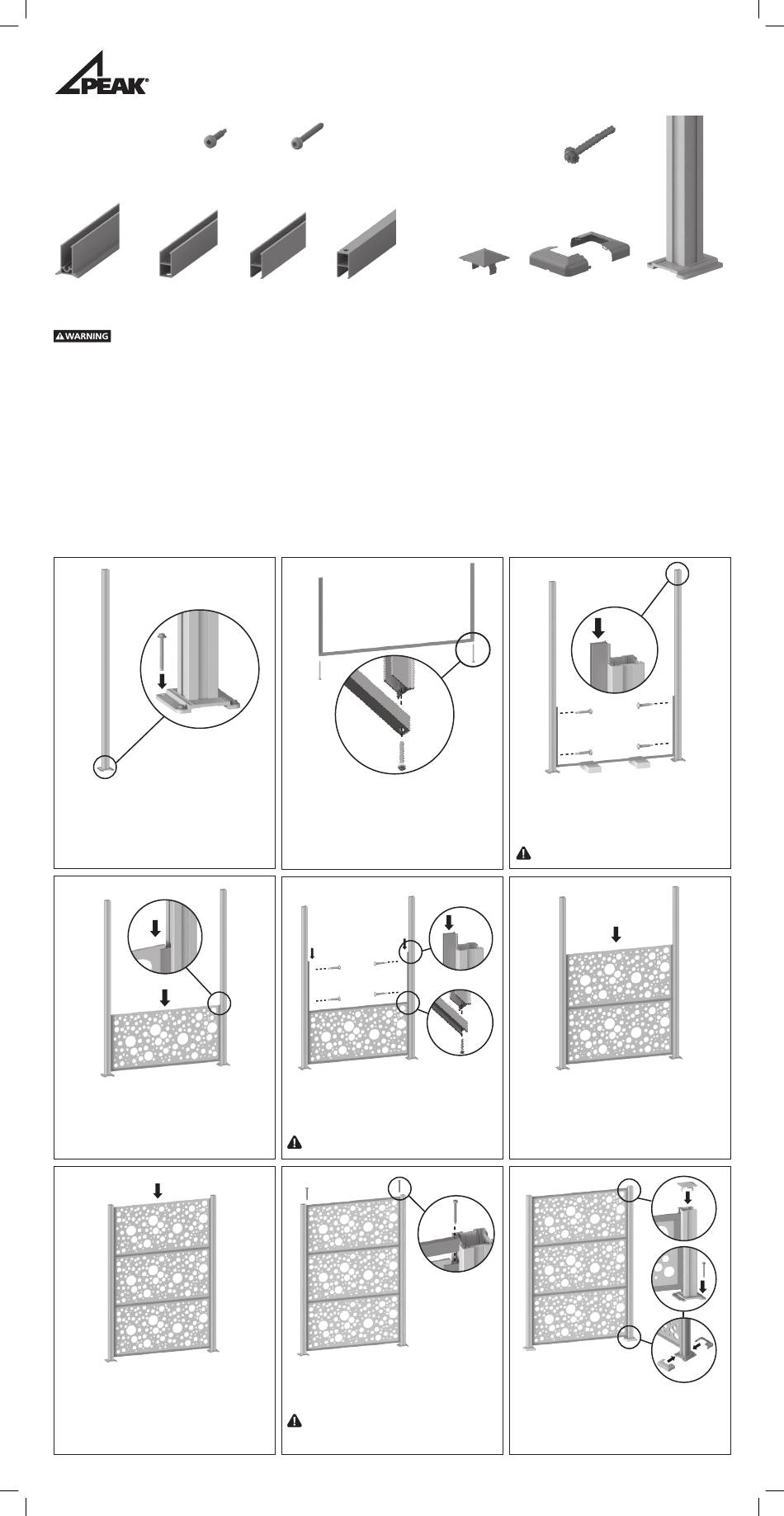

Peak Starburst Installation Instructions

Decorative Screens

Screen Frame
Contents:
12x
#10 x 1"
Self-drilling screw
6x 1x
Vertical Frame Bottom Frame
No representation or warranty is given that your particular application of these products complies with relevant building codes. Therefore consult with
professionals and local building officials before beginning work: (i) to ensure compliance with relevant building codes for your application; (ii) to identify appropriate safety
gear that is to be used during installation such as a safety harness when working above ground; (iii) to ensure that the work area is free from utilities, services and hazards;
and, (iv) to clarify any instructions or warnings that may not be clear. It is the responsibility of the installer to evaluate the conditions and determine the appropriate hardware
and procedure. Failure to do so could result in personal injury, damage to the product, or other damage. Work in a safe manner wearing protective gear such as gloves,
eyewear, headwear, footwear and clothing. When using tools always comply with operation manuals and instructions. Metal and other materials may have sharp edges and
could fragment or splinter during or as a result of handling or cutting. Do not use these products in connection with any substance that is or may be harmful or corrosive to the
products. Inspect and maintain these products on a regular basis.
No member of The Peak Group of Companies (as defined at www.peakproducts.com) shall be liable for any loss or damage resulting from the improper installation or use of
this product. In the unlikely event that any member of The Peak Group of Companies becomes liable for any loss or damage, the aggregate liability shall be limited to the retail
purchase price of the product.
Peak® products and the materials associated therewith are protected by patents, designs, copyright and/or trademarks. All trademarks are used under license from Peak
Innovations Inc. May be subject to patent(s) or patent(s) pending.

Tools and Materials Needed

Drill Hammer drill
Driver bits 5/16" Drill bit for concrete
1
Position first post. For concrete attachment, use
hammer drill with 5/16" masonry bit to drill four
holes 3" deep through each corner of post base.
Clean holes. Use hammer to insert assembled
concrete anchors (provided) until washer is
touching post base. Use 7/16" wrench to tighten
nuts. Ensure post is plumb.
4
Slide 4' x 2' Decorative Screen down into Vertical
Frames and ensure it is fully seated in Bottom
Frame.
7
Repeat Steps 5 and 6 for third 4' x 2' Decorative
Screen.
8x
#10 x 2" Screw
2x 1x
Mid Frame Top Frame
7/16" Wrench Level
Hammer Tape measure
2
Secure Bottom Frame to two Vertical Frames using
two #10 x 2" screws.
5

Secure one Mid Frame to two Vertical Frames

using two #10 x 2" screws. Slide assembled Mid
Frame and Vertical Frames into slots on posts.
Secure Vertical Frames to posts using four #10 x 1"
self-drilling screws (provided).
Push each screw head into Vertical Frame
channel before driving.
8
Position Top Frame onto 4' x 2' Decorative Screen
and secure using two #10 x 2" screws.
Once complete frame is secured, Decorative
Screens will be slightly loose to allow for
thermal expansion.
Installation Instructions
Post
Contents:
4x
Concrete Anchor
1x 1x
Post Cap Post Base Cover
3
Position second post (do not secure it yet). Slide
assembled Bottom Frame and Vertical Frames into
slots on posts and use wood blocks to level. Ensure
bottom of frame is between 1-1/2" and 2" above
ground. Secure Vertical Frames to posts using four
#10 x 1" self-drilling screws (provided).
Push each screw head into Vertical Frame
channel before driving.
6
Repeat Step 4 for second 4' x 2' Decorative Screen.
9
Fasten second post in place (see Step 1 for full
details). Install post caps and post base covers.
©2021 Peak Innovations Inc. 2496_ScreenFrame_InstallGuide_ENG_V2
For 4' x 2' Screens
1x
Post
