Quick Links
• Mitre saw (recommended)
or hacksaw with non-ferrous
metal cutting blade
• Level
• Measuring tape
• Wire rope cutters
• Adjustable wrench
• 3/16" Hex key
1" Flat head screw
See our helpful installation videos on our website: peakproducts.com
Tools and Materials Needed
• Rotary tool with cutoff
wheel for metal
• Drill
• Drill bits for wood: 1/4"
• Drill bits for metal: 1/8",
7/32"
• T40 Star driver bit
• Square #2, #3 driver bits
Fasteners Supplied
1-1/2" Pan head screw

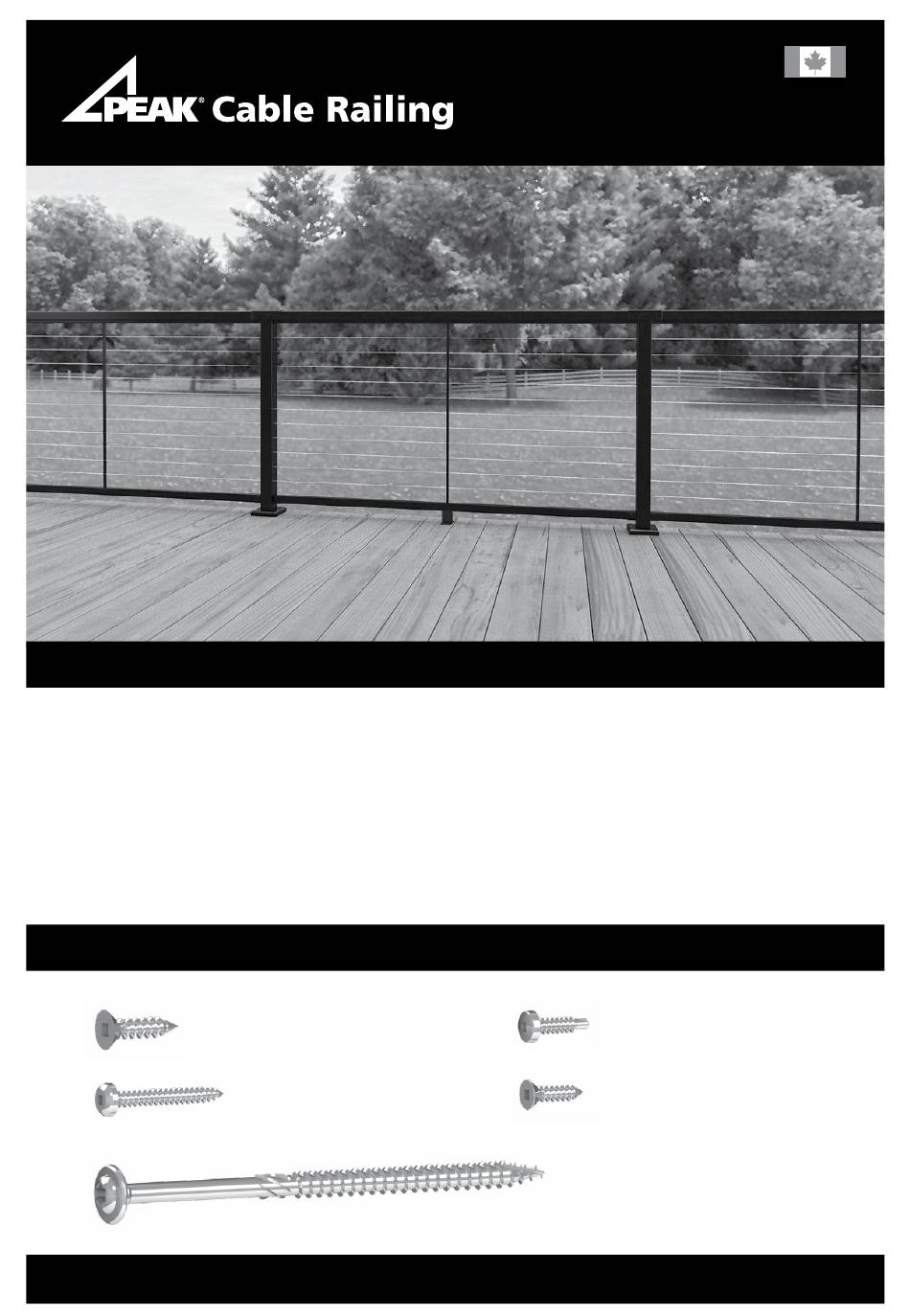

Installation Guide
• Non-corrosive exterior silicone
caulking
• String line
• Vise grip pliers
• Concrete anchoring fasteners
(for concrete applications only,
see page 3 for details)
3/4" Pan head self-drilling screw
3/4" Flat head screw
6" Self-drilling lag screw
1
Advertisement
Summary of Contents for Peak Cable Railing
- Page 1 Installation Guide Tools and Materials Needed • Mitre saw (recommended) • Rotary tool with cutoff • Non-corrosive exterior silicone or hacksaw with non-ferrous wheel for metal caulking metal cutting blade • Drill • String line • Level • Drill bits for wood: 1/4" •...
- Page 2 In the unlikely event that any member of The • For multi-residential construction, please call Peak Customer Service at 1-877-883-PEAK (7325) or Peak Group of Companies becomes liable for any loss or damage, the aggregate liability shall be limited to the retail email: cservice@peakproducts.com purchase price of the product.
-
Page 3: Deck Installation
DECK INSTALLATION Insert the rails into the first post. Then insert the rails into the second post but do not secure it yet. Measure and mark the position of all posts and space equally. A: Secure the handrail to the first post with 3/4"... - Page 4 A: Set the length of adjustable Adjustable fittings to 4-1/8". fitting Repeat for all 11 cables. B: Feed cable through holes of all posts and install into fitting. Ensure cable end is tightly wound (no loose strands) 4-1/8" before pushing into fitting. Ensure plastic ring is slid onto the fitting before inserting the cable.
- Page 5 STAIR INSTALLATION A: Temporarily position rail in upper Measure and mark the position of all posts and space equally. bracket and set rail parallel with stair angle. Maximum stair post spacing of 4' 4". Ask a helper to hold the rail while Put the top Stair End Post in position, ensuring the side with lower holes the rail height and angle are being is facing down the stairs.
- Page 6 A: Set the length of adjustable Adjustable stair fittings to 4-5/8". stair fitting B: Feed cable through holes of all Repeat for all 9 cables. posts and install into fitting. Ensure cable end is tightly wound (no loose strands) 4-5/8" before pushing into fitting.
