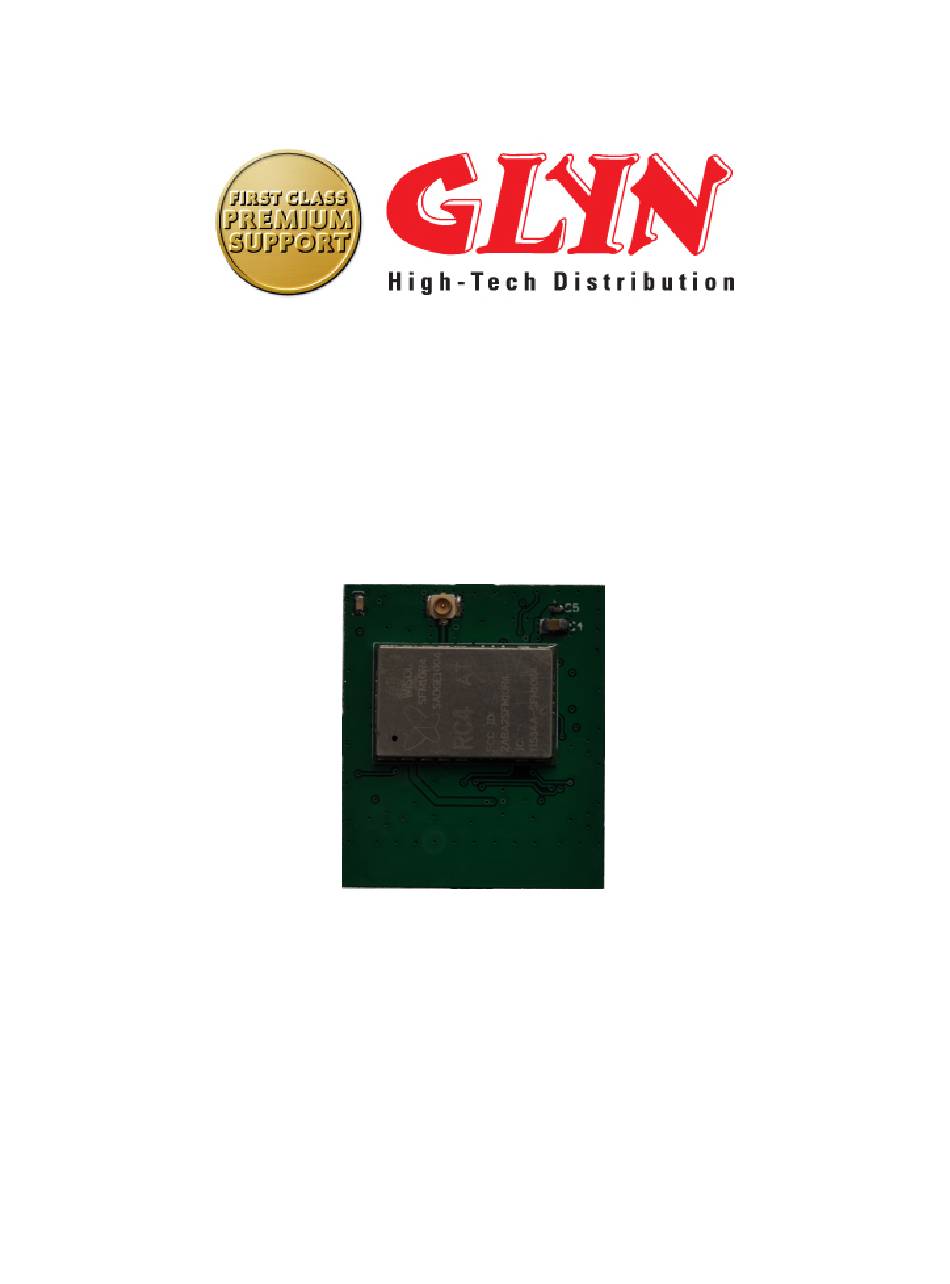

- Page 1 HARDWARE REFERENCE MANUAL XBeeSigfox A Wisol Sigfox module on an Xbee interface board February 1, 2019 Revision 1.0...
- Page 2 Revision Date Notes 22/06/2018 Initial hardware reference manual Glyn Ltd. XBee Hardware Reference Manual Pg.1...
- Page 3 3.6 Block Diagram ......3.7 Recommended Module Summary ....Glyn Ltd. XBee Hardware Reference Manual Pg.2...
- Page 4 Introduction The XBeeSigfox module has been designed to allow the user ease of use with plug & play Sigfox module with the Digi XBee interface. Options are available for all Sigfox regional zones, R1, 2, 3, & 4. By utilising the XBee...
- Page 5 10-Pin Right Angle Surface Mount Header Manufacturer: Samtec Inc. Part Number: TMM-110-01-T-S-SM Pitch - Mating: 0.079”(2.00mm) No. of Positions: 10 No. of Rows: 1 Mounting Type: Surface Mount 2.2.2 U.FL Connector Manufacturer: Attend Part Number: 321-33125 Glyn Ltd. XBee Hardware Reference Manual Pg.4...
- Page 6 VCC must be driven to open drain/collector Antenna Connectors The XBeeSigfox module is equipped with a 50 Ohm RF connector from At- tend, P/N: 321A-33125, for the wireless antenna connections. The connector is located on the top side of the module.
- Page 7 Power Consumption Please see the relevant Wisol Sigfox Hardware user guide for recommended power supply requirements for new designs. The document can be found at Wisol website. Block Diagram Block Diagram of WSSFM10R4AT Glyn Ltd. XBee Hardware Reference Manual Pg.6...
- Page 8 Band Support WSSFM10R4AT Europe & Middle East 868-869MHz WSSFM10R2AT North America 902-905MHz WSSFM10R3AT Japan 922-923MHz WSSFM10R4AT South America, Australia, NZ, & 920-922MHz parts of Asia WSSFM11R2DAT Region 2 + Region 4 RCZ2 & RCZ4 Glyn Ltd. XBee Hardware Reference Manual Pg.7...
