Burkert 2509 Operating Instructions

Type 2509
Cable plug
Conduit Connection, UR approved
Operating Instructions
Address
Germany / Deutschland / Allemagne
Bürkert Fluid Control Systems
Sales Center
Christian-Bürkert-Str. 13-17
D-74653 Ingelfingen
Tel. + 49 (0) 7940 - 10-91 111
Fax + 49 (0) 7940 - 10-91 448
E-mail: info@burkert.com
International: www.burkert.com
Manuals and data sheets on the Internet : www.burkert.com
© Bürkert Werke GmbH & Co. KG, 2018
Operating Instructions 1803/00_EN-EN_00810635 / Original DE
SymbOlS
→
designates a procedure which you must carry out.
Warning of serious or fatal injuries:
Danger!
In case of imminent danger.
Warning!
In case of potential danger.
1 SySTem
deScripTion
1.1

General description

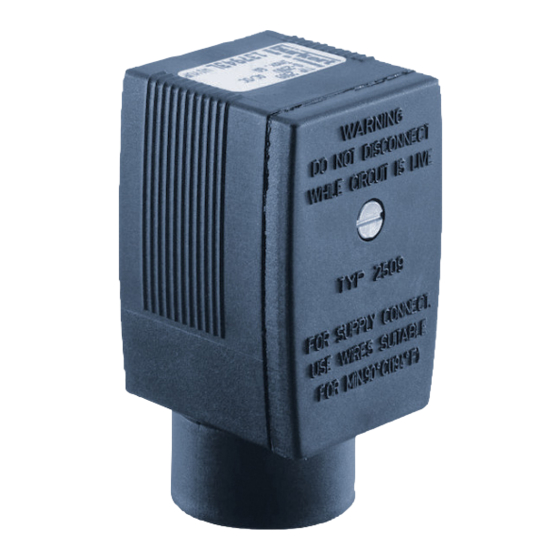

The cable plug Type 2509 with UL certification consists
of a polyamide housing without integrated electronics.
The connector is in accordance with DIN EN 175301-803
(previously DIN 43650 Form A).
1.2

Functions

The cable plug Type 2509 is used for joining conduit con-
nections to solenoid coils.
english
2

Technical daTa

2.1

conformity

The cable plug Type 2509 conforms to the EU directives
according to the EU Declaration of Conformity (where
applicable).
2.2

Standards

The applied standards, which are used to demonstrate
conformity with the EU Directives, are listed in the EU type
test certificate and/or the EU Declaration of Conformity
(where applicable).
2.3

operating conditions

Certification UR file no. E238288
Self-Declared Operating Conditions
Operating temperature –40 °C...+90 °C
(–40 °F...+194 °F)
Degree of protection NEMA 4X (IP65)
2.4

mechanical data

Dimensions see data sheet
(approx. 33 x 33 x 59 mm)
Materials
Housing Polyamide
Seal NBR
Contacts Copper alloy, silvered
Cable outlet Contact insert can be rotated
by
4 x 90° after removal
Poles 2-pole + protective conductor /
3-pole + protective conductor
Electrical Connection 3 or 4 terminals in the contact
insert Wire diameter AWG18
Thread of the
conduit screw
connection 1/2 " NPT
Approved conduit connections
• for use with flexible conduit only
2.5

electrical data

Power supply 0 ... 250 V AC/DC
Max. electrical current 6 A
2.6

pin assignment

Details of the pin assignment can be found in the data
sheet for the corresponding valve.
