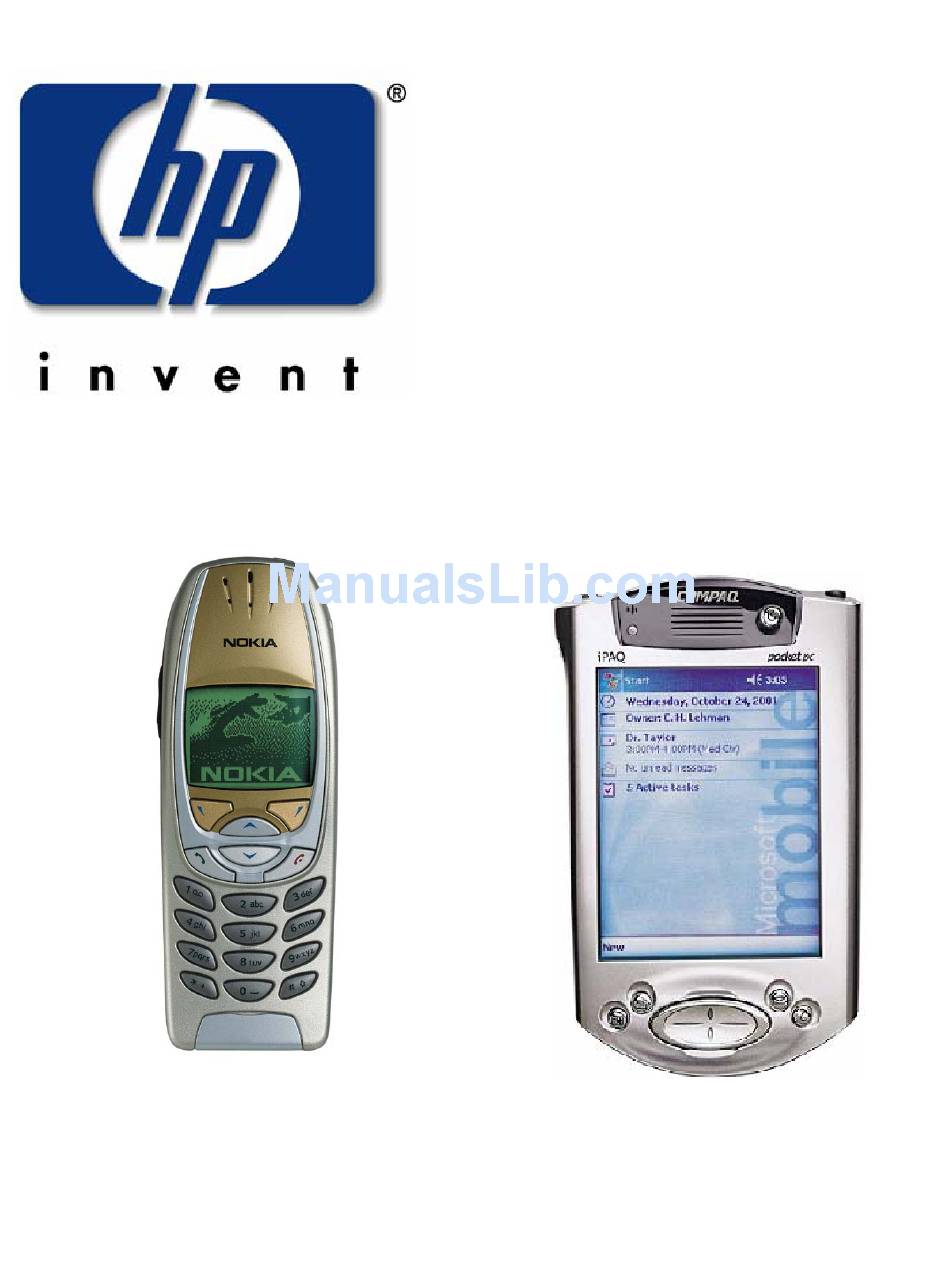

Page 1: Bluetooth Configuration
HP EMEA Wireless Solutions Nokia 6310/6310i and IPAQ 3870/3970 Bluetooth configuration guide Version 1.2, July 2002... - Page 2 Installation guide: 1. If you are using a 3870 jump to step 3. If you are using a 3970 jump to step 4. If you have a BT wireless pack install Bluetooth manager from the iPAQ CD via ActiveSync. Also check whether there is a later version of the driver on the Compaq web site.
- Page 3 ActiveSync. If you have a server tab under options the upgrade is installed continue with step 4. 3. If you have a 3870 with ROM version 2.15 upgrade to 2.20 by downloading the file from http://www.compaq.com/support/files/handheldiPAQ/us/download/14999.html. After the installation continue with step 4 4.
- Page 4 5. On the Nokia 6310 assign a name under Menu\Bluetooth\Bluetooth settings\My phones name. Make sure that the Bluetooth is turned on under Menu\Bluetooth. 6. Still on the Nokia 6310 make sure that the “visibility parameter” is on under Menu\Bluetooth\Bluetooth settings. It should be set to “Shown to all”. This is only necessary during the pairing process.
- Page 5 8. Click on the icon corresponding to your device name in the BT manager. All the available services will be presented under the actions menu. Choose create bond with this device. On the iPAQ enter a Pin code for example a single “1” without pressing OK. 9.
- Page 6 NOTE: If you get this message you need to start over from step 8 NOTE: This screen indicates a successful pairing with the iPAQ. 10. To turn off the need of pressing accept on the 6310 on each connection change menu\bluetooth\view paired devices\”name of the device”\options.
- Page 7 11. On the iPAQ, open the actions menu and choose “Set as Bluetooth Dialup Modem”. Click OK on the upper right corner then go to next step. 12. On the iPAQ go to start setting\connections\connections. Choose dialing locations and then dialing patterns. Set G as dialing pattern on all three areas. Press OK and then connections.
- Page 8 14. Start Pocket Internet Explorer and enter a web URL in the top field and press the green arrow. 15. Leave the username, password and domain fields empty. Check “save password” then press Ok. You only have to do this once. On the Nokia 6310 you will get “Connect to XXXX”...
