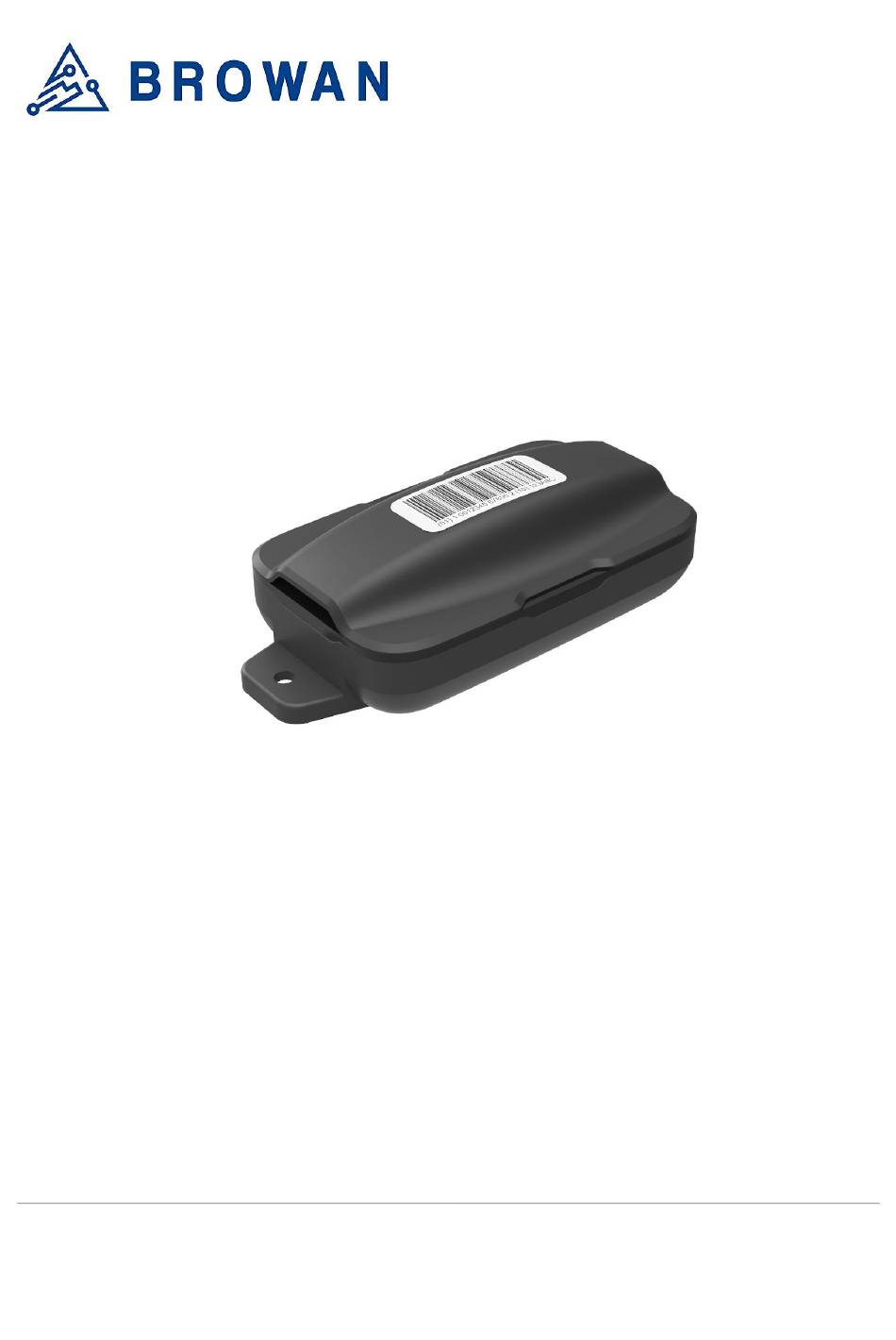

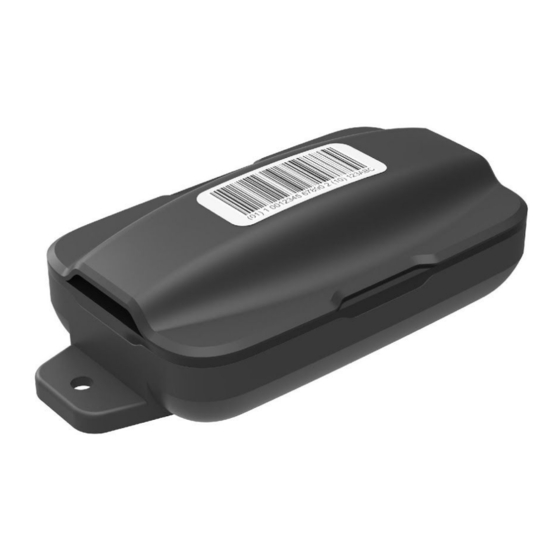

- Page 1 Industrial Tracker TNIT100-915 Reference Manual TNIT100-868...
-
Page 2: Table Of Contents
2.6 User Interface 2.7 Additional Features 3. Operation 3.1 Shipping Mode 3.2 User Mode 3.2.1 Stationary Mode 3.2.2 Moving Mode 4. Messages 4.1 Uplink Payload 4.2 Configuration Downlink Command 5 5. Battery Replacement © 2019 Browan Communications Inc. All rights reserved. -
Page 3: Specifications
Rx Sensitivity -138dBm conducted 2.7 Additional Features Antenna Gain 0dBi Peak, -3dBi Avg PCB Temperature NTC 100k ohm 2.4 Certifications and Conformity Battery Monitoring Resistor divider FCC ID: 2AMUGTNIT100 IC: 22980-TNIT100 ROHS REACH © 2019 Browan Communications Inc. All rights reserved. -
Page 4: Operation
If the GPS position is fixed, the device will never close GPS until entering the stationary mode. 3. Enter stationary mode when the device is not moving over 30 seconds (g-sensor is not triggered). © 2019 Browan Communications Inc. All rights reserved. -
Page 5: Messages
Note: If there is no GNSS fix (see sensor status), the Lat and Lon fields contain the last values reported by the GNSS receiver. If there has never been a GNSS fix acquired, the values may both be 0. © 2019 Browan Communications Inc. All rights reserved. -
Page 6: Configuration Downlink Command
● 0x01 - periodic GPS ● 0x02 - full tracking ● 0x03 - PSM tracking Bytes [29] indoor: number of SVs required above threshold Bytes [30] indoor: detection threshold (dbHz) Bytes [31] indoor: detection timeout (second) © 2019 Browan Communications Inc. All rights reserved. -
Page 7: Battery Replacement
5. Battery Replacement Use ER14250 or equivalent. Remove the screw and replace both batteries. Do not mix old and new batteries. © 2019 Browan Communications Inc. All rights reserved.
