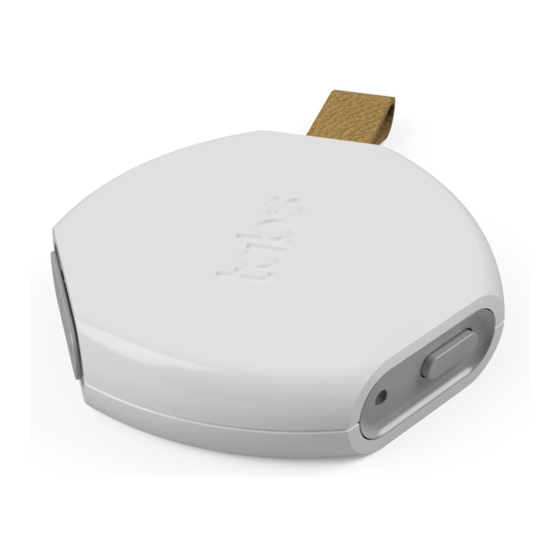

Object Locator
Reference Manual
Model Name: TBOL100
TBOL100-915
TBOL100-868
DOC ver.: ​
B QW_02_0003.001

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TBOL100 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Browan TBOL100

Summary of Contents for Browan TBOL100

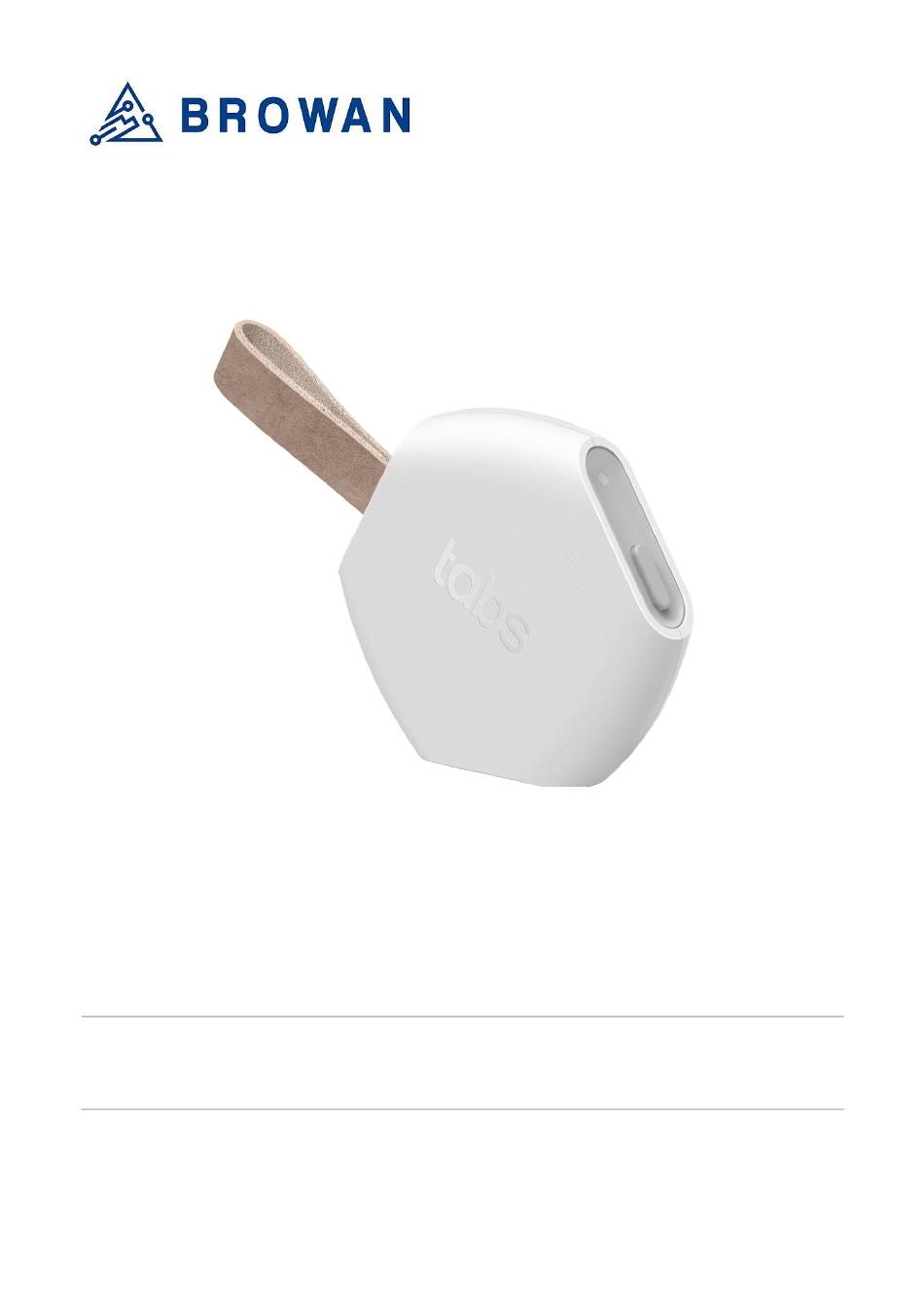

  • Page 1 Object Locator TBOL100-915 Reference Manual TBOL100-868 Model Name: TBOL100 DOC ver.: ​ B QW_02_0003.001...

  • Page 2: Table Of Contents

    10.2 Industry Canada statement: Appendix. Configuration Command Appx. 1 Payload Appx. 2 Command Description Appx. 3 Response Content Appx. 4 Sensor Vibration Command Appx. 4.1 Payload Appx. 5 Frame Count 0 Content © 2019 Browan Communications Inc. All rights reserved.

  • Page 3: Specifications

    Rx Sensitivity -140dBm conducted 2.7 Additional Features Antenna Gain -5dBi Peak, -8dBi Avg PCB Temperature NTC 100k ohm Battery Monitoring Resistor divider 2.4 Certifications and Conformity FCC ID: 2AMUGTBOL100 IC: 22980-TBOL100 ROHS REACH © 2019 Browan Communications Inc. All rights reserved.

  • Page 4: Operation

    LED shall be on continuously. If the battery is fully charged while a powered charger is connected, the green LED shall fade-in and out from 0% to 50% brightness at a rate of 12 cycles per minute. © 2019 Browan Communications Inc. All rights reserved.

  • Page 5: Messages

    1 - GNSS error, 0 - GNSS OK Bit[7:5] Battery Battery level unsigned value ν, range 1 – 14; Bits [3:0] battery voltage in V = (25 + ν) ÷ 10. Bits [7:4] © 2019 Browan Communications Inc. All rights reserved.

  • Page 6: Label Format Information

    ● The GS1 Application Identifier (21) indicates that the GS1 Application Identifier data field contains a serial number. ● The GS1 Application Identifier (92) assigned to the company’s internal information is DevEUI. © 2019 Browan Communications Inc. All rights reserved.

  • Page 7: Qr Code Label

    Uses a hexadecimal representation resulting in 16 characters. 5.1.4 SKU number Non-reserved characters(except ":" and space) with a maximum length of 20 characters. 5.1.5 Factory check code XXXXXXXX Checksum of the factory production line. 5.1.6 Model Name MODEL:TBOL100. © 2019 Browan Communications Inc. All rights reserved.

  • Page 8: Important Product & Safety Instructions

    (whether integrated or removable) can cause an explosion or fire. ● Do not dry the sensors or battery with an external heat source such as a microwave oven or hairdryer. © 2019 Browan Communications Inc. All rights reserved.

  • Page 9: Warnings

    If contact has been made, wash the affected area with copious amounts of water and seek medical advice. ● Do not use any charger other than that specifically provided for use with the equipment. © 2019 Browan Communications Inc. All rights reserved.

  • Page 10: Notices

    ​ E XPLOSION Incorrect Type. Dispose of Used Batteries or leakage of flammable liquid or gas. According to the Instructions. Discard used batteries according to the manufacturer's instructions. © 2019 Browan Communications Inc. All rights reserved.

  • Page 11: Regulatory

    10. Regulatory Hereby, Browan Communications Inc. declares that the radio equipment for Tabs products is in compliance with Directive 2014/53/EU. This device complies with Part 15 of the FCC Rules and RSS Standards of Industry Canada. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

  • Page 12: Industry Canada Statement

    Cet équipement doit être installé et utilisé avec un minimum de 0 cm de distance entre le radiateur et votre corps. © 2019 Browan Communications Inc. All rights reserved.

  • Page 13: Appendix. Configuration Command

    0x02 – Set g-sensor timeout interval when the sensor is moving. default value : 60 sec ​ 0 or 2 bytes Config Configuration Bits [15:0] unsigned value in seconds, range 15 – 65,535. *Note: little-endian format. © 2019 Browan Communications Inc. All rights reserved.

  • Page 14: Appx. 2 Command Description

    S et keep alive interval when the sensor is in stationary mode. : 0x1C20 -> ​ 7 200 sec => ​ 02 3C00​ S et g-sensor timeout interval when the sensor is in moving mode. : 0x003C -> ​ 6 0 sec © 2019 Browan Communications Inc. All rights reserved.

  • Page 15: Appx. 3 Response Content

    G -sensor timeout interval when the sensor is moving. ​ : 0x003C -> 60 ​ ( sec) Appx. 4 Sensor Vibration Command (Internal command) Port Payload Length 1 bytes Appx. 4.1 Payload Bytes Field Cmd: 0x01 – Trigger sensor vibration. © 2019 Browan Communications Inc. All rights reserved.

  • Page 16: Appx. 5 Frame Count 0 Content

    => HW ID : 0x00000100 ​ ( ​ 00010000​ little-endian format​ => ​ F W CRC : 0x02f1f17f ​ ( ​ 7ff1f102​ little-endian format​ ​ = > PubKey ID : 0xeef6d4e2 ​ ( ​ e2d4f6ee little-endian format​ © 2019 Browan Communications Inc. All rights reserved.
