Chungho A200 User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

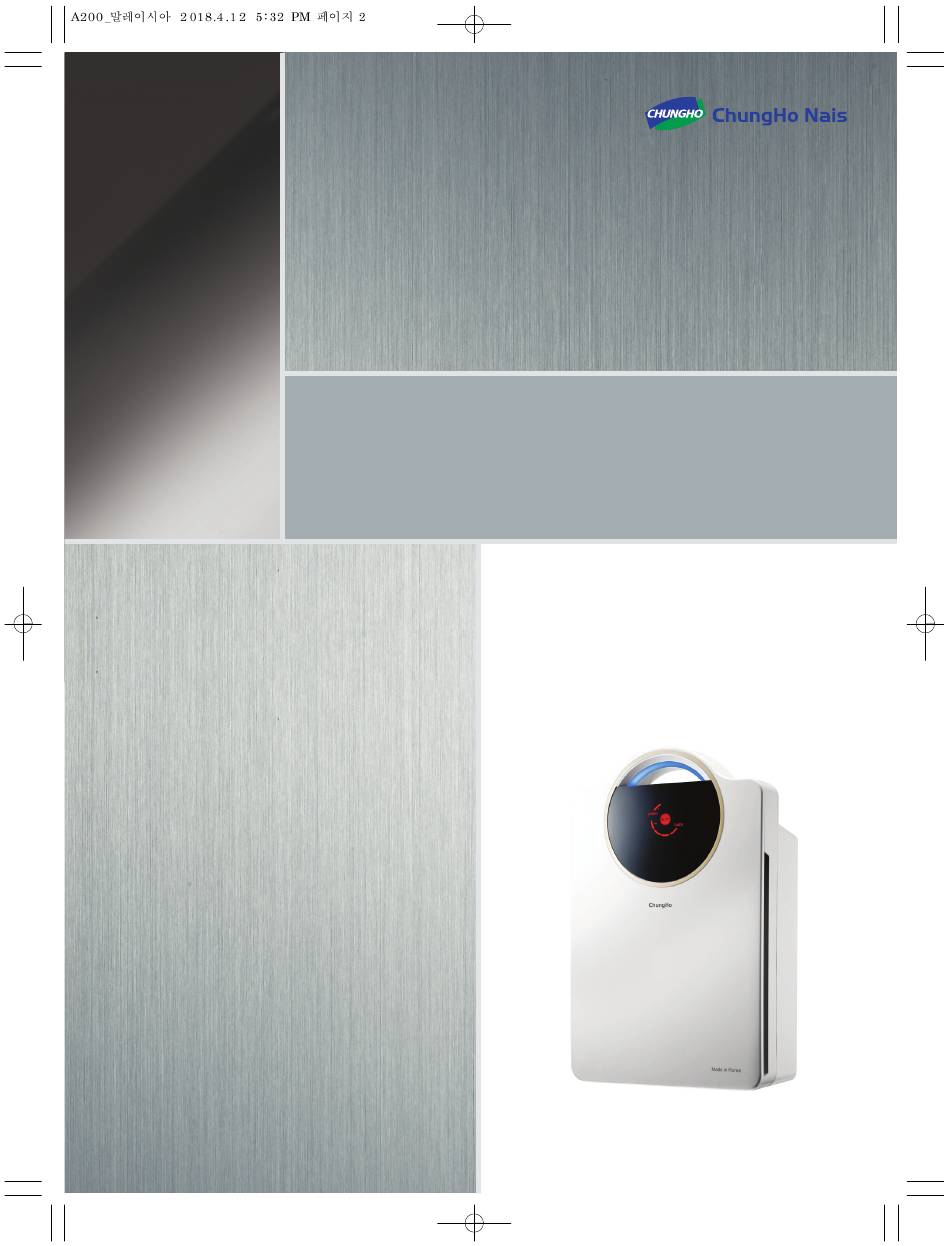

ChungHo Air Purifier A200
User's Manual
CHA-R300A
• Read the user's manual thoroughly before using the unit.
• Design and color may differ from the picture.
• Unit appearance, specification, etc. are subject to change without prior notice
if necessary for improving unit performance.
• The rated voltage of this unit is 220-240 V~ / 50 Hz only.

Advertisement

Table of Contents
loading

Related Manuals for Chungho A200

Summary of Contents for Chungho A200

  • Page 1 ChungHo Air Purifier A200 User's Manual CHA-R300A • Read the user's manual thoroughly before using the unit. • Design and color may differ from the picture. • Unit appearance, specification, etc. are subject to change without prior notice if necessary for improving unit performance.

  • Page 2: Table Of Contents

    There are also levels in technology for home appliance. As organic vegetables without pesticides protect the health of our families with better quality, better home appliance technology of ChungHo Nais opens up a world of healthy home appliances of different category. High technology with reason, ChungHo Nais! We will reward you with great happiness for your precious investment for health.

  • Page 3: Product Features

    1. Product features Superior air cleaning capacity 3 stages air cleaning system equipped with Pre filter, Integrated-type filter(HEPA filter + Deodorization filter) eliminates fine dust and odor substance. Auto operation by detecting the pollution level It displays the indoor air pollution level detected by particle sensor and enables user to know pollution level easily, and “Auto”...

  • Page 4: Safety Precautions 04

    2. Safety precautions ' ' D D a a n n g g e e r r ' ' ' ' C C a a u u t t i i o o n n . . ' ' Cautions are divided into 2 categories: Danger Associated with the possibility for serious injury or death.
  • Page 5 2. Safety precautions Danger Associated with the possibility for serious injury or death. If dust or water is on power plug, Do not bend the power cord nor allow it wipe it off well with dry cloth. to be pressed under heavy object. •Electric shock or fire •Dust or water on power may occur.
  • Page 6 2. Safety precautions Danger Associated with the possibility for serious injury or death. Do not place the product in damp place or at the Do not attempt to repair or adjust any electrical or place exposed to rain or snow. mechanical functions on this unit.
  • Page 7 2. Safety precautions Caution This product is for indoor usage only. Do not install the product in a sloped or unstable 41F (5°C) ~ 86F (30°C) position. •Using outdoor can cause •It can cause injury and damage. deformation and discoloration. •On the unstable ground, fine shake may occur.

  • Page 8: Name Of Each Part

    3. Name of each part Particle sensor Particle sensor cover Front cover Outlet Handle Pollution level display lamp Operation controller Operation display Display window Inlet Inlet Inlet...

  • Page 9: Display And Operation Function

    4. Display and operation function 4-1. Display function Speed : Display of fan speed. Pollution level display lamp : Display of indoor dust level. Timer : Display of time setting. Sleep mode ( Display of sleep mode. Auto : Display of automatic operation. Filter change : Filter change indicator informs the right time to change filter.

  • Page 10: Filter Function

    5. Filter function Integrated-type filter (HEPA filter + Deodorization filter) Pre filter Front Cover Eliminate visible particles such as dust, lint, pet hair, etc. Pre-filter Integrated-type HEPA filter removes fine dust (bacteria, cigarette smoke included) filter as small as 0.3 ㎛ which is potential causes of respiratory problems. (HEPA filter + Made of activated carbon which is powerful enough to remove Deodorization...

  • Page 11: Usage 11

    6. Usage •Plug in the power before using the product. •The product is automatically set level 1. 6-1. Power button ① Setting of ON/OFF. 6-2. Speed button ① Plug in the power •The product is set level 1 as flickering LED window two times. (Setting sound : Ding~dong~daeng~) •Display lamp changes its color for 30 seconds and display a color to the pollution level.

  • Page 12: Timer Button

    6. Usage 6-3. Timer button ① Initial setting is programmed for continuation ( ② Press timer button. • As you press timer button, timer is changed as follows continuation( ) – 8 hrs – 4 hrs – 2 hrs-continuation ( 8hrs 4hrs 2hrs...

  • Page 13: Filters 13

    7. Filters 7-1. Filter cleaning and replacement ① Turn off and unplug the unit. •If not, electric shock may occur. ② Pull out the front cover as holding upper side of the product. ③ Pull out forward the pre filter as pulling two holders. •Pre filter needs cleaning work with vacuum cleaner or running water once a month.

  • Page 14: Cleaning Of Particle Sensor

    7. Filters 7-3. Cleaning of particle sensor •Particle sensor is… Particle sensor detects fine dust going around from carpet, cigarette smoke and blanket etc. and send signal to the controller to indicate how polluted indoor air is. Pollution is displayed by lamp color. ※...

  • Page 15: Troubleshooting

    8. Troubleshooting Issue Checking point When the display is Is the power plug Make sure unit is properly turned off and the Request follow-up service. plugged in. inserted properly? product does not work. Is designated cleaning/ Replace filters with new ones and Decreased air flow.
  • Page 16 Less than 45 dB Installation Indoor Net weight 5 kg Dimension 326W X 162D X 512H(㎜) ChungHo Malaysia, 10TH FL, FABER IMPERIAL COURT, JALAN SULTAN ISMAIL, 50250 KUALA LUMPUR, MALAYSIA TEL:+60-32-603-1800 / 1800-886677 / E-MAIL: info@chunghomy.com.my / HOMPAGE: www.chunghomy.com.my MANUAL DOWNLOAD: http://www.chunghomy.com.my/base/download Rev,No.00...
