Chungho IGUASSU 900 User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

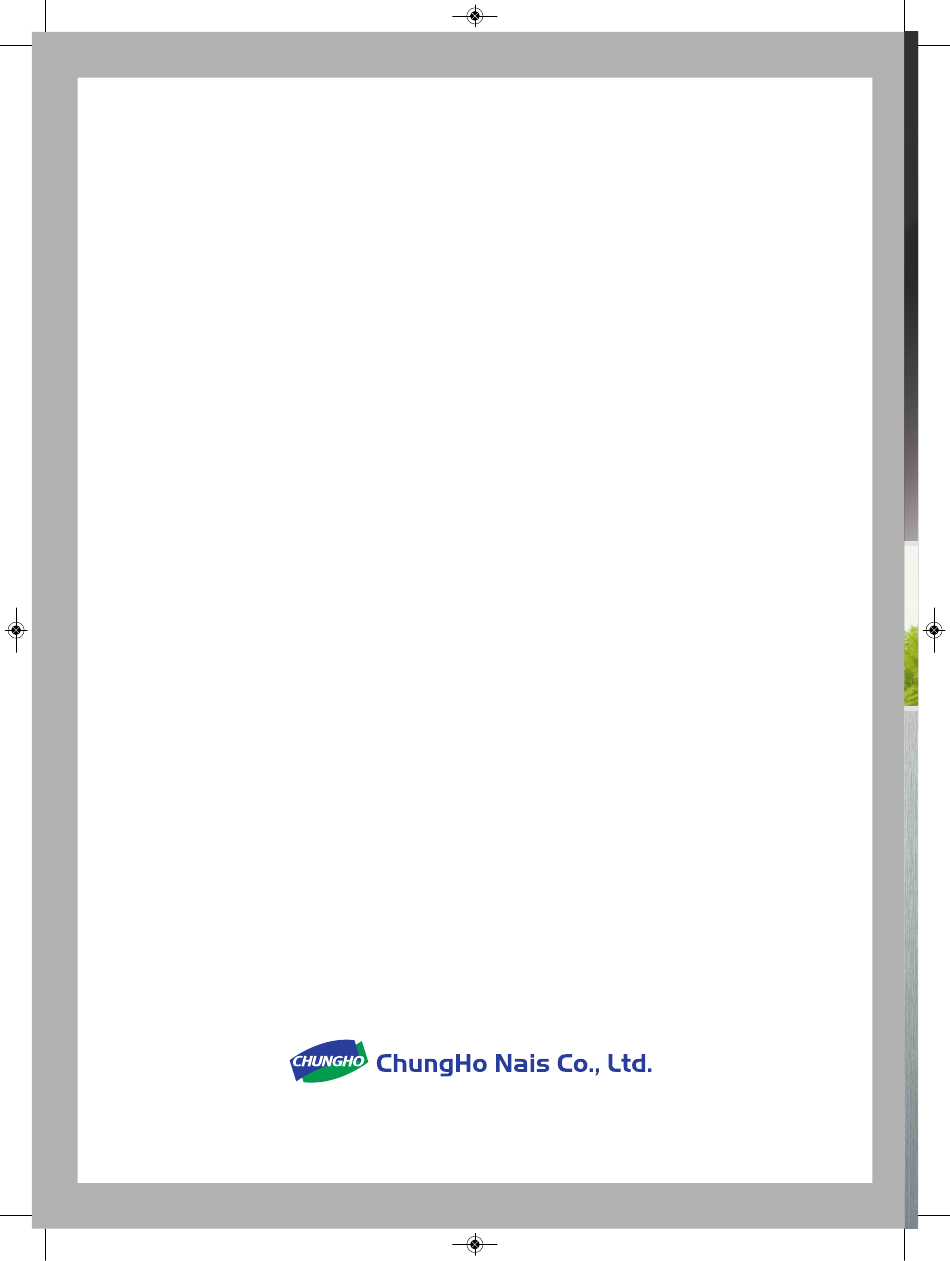

AP900영문_220_50_CHA-300WA_0914 12. 1. 20. 오전 10:07 페이지 1
2F. KOMOS B/D, 10, DODANG-DONG, WONMI-GU, BUCHEON-SI, GYEONGGI-DO, KOREA (P.O.BOX: 420-800)
TEL: +82-32-672-7431 / FAX: +82-32-671-6531 / E-MAIL: goodeal@chungho.co.kr / http://eng.chungho.co.kr
Rev,No.00

Advertisement

Table of Contents
loading

Related Manuals for Chungho IGUASSU 900

Summary of Contents for Chungho IGUASSU 900

  • Page 1 AP900영문_220_50_CHA-300WA_0914 12. 1. 20. 오전 10:07 페이지 1 2F. KOMOS B/D, 10, DODANG-DONG, WONMI-GU, BUCHEON-SI, GYEONGGI-DO, KOREA (P.O.BOX: 420-800) TEL: +82-32-672-7431 / FAX: +82-32-671-6531 / E-MAIL: goodeal@chungho.co.kr / http://eng.chungho.co.kr Rev,No.00...
  • Page 2 User's Manual ▶ Design and color may differ from the picture. ▶ Product appearance, specification, etc. are subject to change without prior notice if necessary for improving product performance. ✽Color : Black / White...

  • Page 3: Table Of Contents

    Table of Contents AP900영문_220_50_CHA-300WA_0914 12. 1. 20. 오전 10:07 페이지 3 We greatly appreciate your purchase of ChungHo Nais air purification system. “IGUASSU Air Purifier 900”. IGUASSU Air Purifier 900 is designed and programmed in accordance with industrial standards. Applied 3 stages filters (Pre-filter, medium carbon filter, HEPA filter) make it possible to remove fine dust as small as 0.3㎛, some of the potential causes of respiratory problems, yellow dust, germs, bacteria etc.

  • Page 4: Product Feature

    1. Product feature AP900영문_220_50_CHA-300WA_0914 12. 1. 20. 오전 10:07 페이지 4 Superior air cleaning capacity 3 stages air cleaning system equipped with Pre filter, Medium carbon filter and HEPA filter elimi- nates fine dust and odor substances as well as it inhibits microbial growth such as mold, germ and bacteria.

  • Page 5: Safety Precautions 4

    2. Safety precautions AP900영문_220_50_CHA-300WA_0914 12. 1. 20. 오전 10:07 페이지 5 Cautions are divided into 2 categories: 'Danger' 'Caution.' Danger Associated with the possibility for serious injury or death. Use the designated power rating. Do not operate any appliance with damgaged •Inappropriate voltage may cause a fire or cord or plug.
  • Page 6 2. Safety precautions AP900영문_220_50_CHA-300WA_0914 12. 1. 20. 오전 10:07 페이지 6 Danger Associated with the possibility for serious injury or death. If dust or water is on power plug, Do not bend the power cord nor allow it wipe it off well with dry cloth. to be pressed under heavy object.
  • Page 7 2. Safety precautions AP900영문_220_50_CHA-300WA_0914 12. 1. 20. 오전 10:07 페이지 7 Danger Associated with the possibility for serious injury or death. Do not place the product in damp place or at the Do not attempt to repair or adjust any electrical or place exposed to rain or snow.
  • Page 8 2. Safety precautions AP900영문_220_50_CHA-300WA_0914 12. 1. 20. 오전 10:07 페이지 8 aution This product is for indoor usage only. Do not install the product in a sloped or unstable 41F (5°C) ~ 86F (30°C) position. •Using outdoor can cause •It can cause injury and damage. deformation and discoloration.

  • Page 9: Name Of Each Part

    3. Name of each part AP900영문_220_50_CHA-300WA_0914 12. 1. 20. 오전 10:07 페이지 9 Particle sensor Particle sensor cover Front cover Outlet Handle Pollution level display lamp Operation controller Operation display Display window Inlet Inlet Inlet...

  • Page 10: Display And Operation Function

    4. Display and operation function AP900영문_220_50_CHA-300WA_0914 12. 1. 20. 오전 10:07 페이지 10 4-1. Display function Speed : Display of fan speed. Pollution level display lamp : Display of indoor dust level. Timer : Display of time setting. Sleep mode ( Display of sleep mode.

  • Page 11: Filter Function

    5. Filter function AP900영문_220_50_CHA-300WA_0914 12. 1. 20. 오전 10:07 페이지 11 HEP filter Medium carbon filter Pre filter Front Cover Pre filter Eliminate visible particles such as lint, dust on blanket and pet hair. Composed of antibiotic material with carbon powder to be against yellow dust, Medium carbon filter germs, bacteria and ammonia, acetaldehyde, VOCs etc.

  • Page 12: Usage 11

    6. Usage AP900영문_220_50_CHA-300WA_0914 12. 1. 20. 오전 10:07 페이지 12 •Plug in the power before using the product. •The product is automatically set level 1. 6-1. Power button ① Setting of ON/OFF. 6-2. Speed button ① Plug in the power •The product is set level 1 as flickering LED window two times.

  • Page 13: Timer Button

    6. Usage AP900영문_220_50_CHA-300WA_0914 12. 1. 20. 오전 10:07 페이지 13 6-3. Timer button ① Initial setting is programmed for continuation ② Press timer button. • As you press timer button, timer is changed as follows continuation( ) – 8 hrs – 4 hrs – 2 hrs-continuation ( Continuation (∞) 8hrs 4hrs...

  • Page 14: Particle Sensor (Sensitivity Control)

    AP900영문_220_50_CHA-300WA_0914 12. 1. 20. 오전 10:07 페이지 14 6-5. Particle sensor (Sensitivity control) • The product is set “standard”. If the product operates in red color for more than 2 hours even not in high humidity and yellow dust or if the product operates in blue color for more than 1 hour even in high pollution, particle sensor is needed to clean.

  • Page 15: Filters 14~15

    7. Filters AP900영문_220_50_CHA-300WA_0914 12. 1. 20. 오전 10:07 페이지 15 7-1. Filter cleaning and replacement ① Turn off and unplug the unit. ② Pull out the front cover as •If not, electric shock may occur. holding upper side of the product. ③...

  • Page 16: Cleaning Of Particle Sensor

    7. Filters AP900영문_220_50_CHA-300WA_0914 12. 1. 20. 오전 10:07 페이지 16 7-3. Cleaning of particle sensor •Particle sensor is… Particle sensor detects fine dust going around from carpet, cigarette smoke and blanket etc. and send signal to the controller to indicate how polluted indoor air is. Pollution is displayed by lamp color (Refer to page 11). ※...

  • Page 17: Troubleshooting

    8. Troubleshooting AP900영문_220_50_CHA-300WA_0914 12. 1. 20. 오전 10:07 페이지 17 Issue Checking point When the display is Make sure unit is properly Is the power plug turned off and the Request follow-up service. plugged in. inserted properly? product does not work. Check condition of the filter and Replace filters with new ones and Decreased air flow.

  • Page 18: Specification

    9. Specification AP900영문_220_50_CHA-300WA_0914 12. 1. 20. 오전 10:07 페이지 18 Product name IGUASSU Air Purifier 900 Model name CHA-300WA Power rating AC 220V/50Hz Power consumption 20 W Current consumption 0.25 A 3.1 ㎥/min Air flow 23 ㎡ Applicable area 93.3 % (Fine dust 0.3 ㎛) Dust collection efficiency Deodorization efficiency 73 %...

  • Page 19: Memo

    10. Memo AP900영문_220_50_CHA-300WA_0914 12. 1. 20. 오전 10:07 페이지 19...
  • Page 20 10. Memo AP900영문_220_50_CHA-300WA_0914 12. 1. 20. 오전 10:07 페이지 20...
