tiny plane

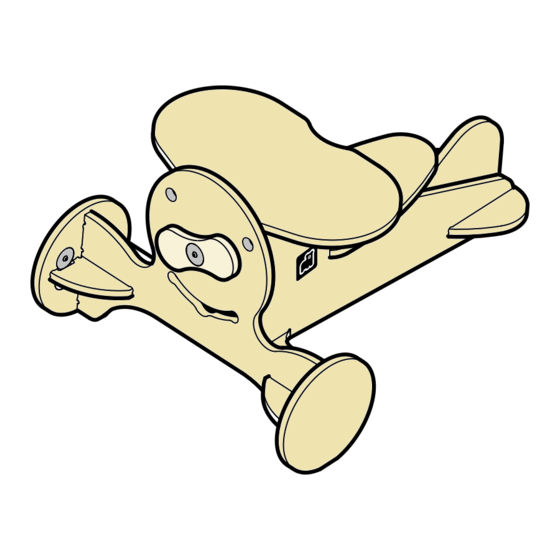

PLAY DESK | Assembly Instructions
Thank you for purchasing the TINY PLANE PLAY DESK!
Please take a few minutes to read the instruction sheets carefully. This
will help you to assemble and use the desk properly.
! WARNING: ADULT ASSEMBLY AND SUPERVISION REQUIRED.
Prior to assembly, please read the Important Safety Information section
on the last page.
PATENT-PENDING
Advertisement
Table of Contents
Related Manuals for squarebear tiny plane
Summary of Contents for squarebear tiny plane
- Page 1 PLAY DESK | Assembly Instructions Thank you for purchasing the TINY PLANE PLAY DESK! Please take a few minutes to read the instruction sheets carefully. This will help you to assemble and use the desk properly. ! WARNING: ADULT ASSEMBLY AND SUPERVISION REQUIRED.
- Page 2 WOODEN PARTS HARDWARE HEX KEY...
- Page 3 ASSEMBLY STEPS ASSEMBLY STEPS ASSEMBLY TIPS 1. WHEN INSTALLING SCREWS WITH HEX KEY, DO NOT OVER-TIGHTEN. TURN THE SCREW UNTIL JUST SNUG, OTHERWISE RISK DAMAGING THE PART. 2. IF SCREW RESISTS TIGHTENING, DO NOT FORCE. RATHER, TRY LOOSENING THE SCREW AND THEN BEGIN TIGHTENING AGAIN. REPEAT UNTIL THE SCREW EASILY THREADS INTO THE INSERT.
- Page 4 ASSEMBLY STEPS (CONTINUED) STEP 4 FLIP OVER THE SUB-ASSEMBLY. WITH TWO SETS OF SCREWS AND WASHERS, COMPLETE ATTACHING PART A TO PART B AS SHOWN. STEP 5 JOIN PART C TO THE SUB-ASSEMBLY AS SHOWN. USING HEX KEY, FASTEN TOGETHER WITH 2 WASHERS AND 2 SCREWS.
- Page 5 ASSEMBLY STEPS (CONTINUED) STEP 7 JOIN PART I TO THE SUB-ASSEMBLY AS SHOWN. USING HEX KEY, FASTEN TOGETHER WITH 2 WASHERS AND 2 SCREWS. STEP 8 JOIN PART H TO THE SUB-ASSEMBLY AS SHOWN. USING HEX KEY, FASTEN TOGETHER WITH 2 WASHERS AND 2 SCREWS.
- Page 6 ASSEMBLY STEPS (CONTINUED) STEP 10 COMPLETE ASSEMBLY BY JOINING PART F AND PART G TO THE SUB-ASSEMBLY AS SHOWN. USING HEX KEY, FASTEN TOGETHER EACH PART WITH 4 WASHERS AND 4 SCREWS. PLEASE NOTE THAT PART F AND PART G ARE NOT THE SAME PART. IMPORTANT SAFETY INFORMATION WARNING: CHOKING HAZARD DUE TO SMALL PARTS (ADULT ASSEMBLY REQUIRED)
- Page 7 • NEVER USE THE DESK UNLESS IT IS PROPERLY ASSEMBLED. • IT IS IMPORTANT TO FREQUENTLY INSPECT THE DESK AND RE-TIGHTEN ANY LOOSE SCREWS. MATERIALS IN THIS PRODUCT WERE TESTED FOR LEAD AT A CPSC APPROVED LABORATORY. TEST RESULTS COMPLY WITH CPSC PRODUCT SAFETY REGULATIONS: 16 C.F.R.
