Big AL

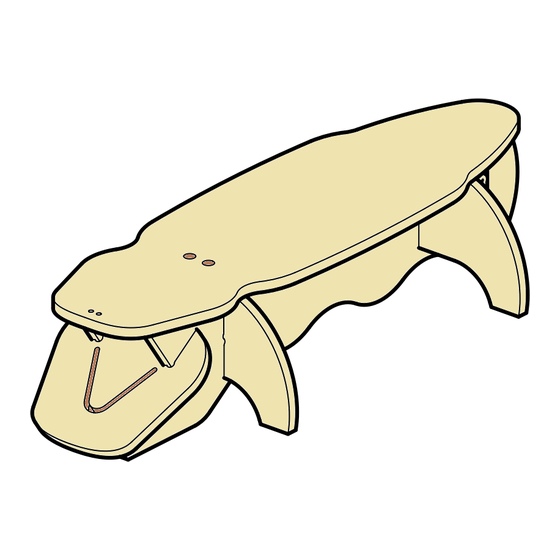

STEP STOOL | Assembly Instructions
Thank you for purchasing the Big AL Step Stool!
Please take a few minutes to read the instruction sheets carefully. This
will help you to assemble and use the step stool properly.
! WARNING: ADULT ASSEMBLY AND SUPERVISION REQUIRED.
Prior to assembly, please read the Important Safety Information section
on the last page.
PATENT-PENDING

Advertisement

loading
Need help?

Need help?

Do you have a question about the Big AL and is the answer not in the manual?

Questions and answers

Summary of Contents for squarebear Big AL

  • Page 1 Big AL STEP STOOL | Assembly Instructions Thank you for purchasing the Big AL Step Stool! Please take a few minutes to read the instruction sheets carefully. This will help you to assemble and use the step stool properly. ! WARNING: ADULT ASSEMBLY AND SUPERVISION REQUIRED.

  • Page 2: Assembly Tips

    WOODEN PARTS HARDWARE HEX KEY ASSEMBLY TIPS 1. WHEN INSTALLING SCREWS WITH HEX KEY, DO NOT OVER-TIGHTEN. TURN THE SCREW UNTIL JUST SNUG, OTHERWISE RISK DAMAGING THE PART. 2. IF SCREW RESISTS TIGHTENING, DO NOT FORCE. RATHER, TRY LOOSENING THE SCREW AND THEN BEGIN TIGHTENING AGAIN. REPEAT UNTIL THE SCREW EASILY THREADS INTO THE INSERT.

  • Page 3: Assembly Steps

    ASSEMBLY STEPS STEP 1 INSERT TAB OF PART B INTO THE SLOT OF PART A AS SHOWN. STEP 2 WITH PART E IN POSITION, INSERT A LARGE WASHER INTO POCKET ON PART A AS SHOWN. STEP 3 INSERT A SCREW INTO THE WASHER AS SHOWN.
  • Page 4 ASSEMBLY STEPS (CONTINUED) STEP 4 JOIN PART C TO THE SUB-ASSEMBLY AS SHOWN. USING HEX KEY, FASTEN TOGETHER WITH 2 WASHERS AND 2 SCREWS. STEP 5 JOIN PART D TO THE SUB-ASSEMBLY AS SHOWN. USING HEX KEY, FASTEN TOGETHER WITH A WASHER AND SCREW.
  • Page 5 ASSEMBLY STEPS (CONTINUED) STEP 8 JOIN PART F TO THE SUB-ASSEMBLY AS SHOWN. USING HEX KEY, FASTEN TOGETHER WITH 3 WASHERS AND 3 SCREWS. TIP: A PILLOW POSITIONED AS SHOWN CAN HELP KEEP PART F IN PLACE MAKING ASSEMBLY STEP MUCH EASIER. PILLOW...

  • Page 6: Important Safety Information

    CPSIA Section 101 requirements for lead. CLEANING AND CARE • THE BIG AL STEP STOOL IS INTENDED TO BE USED IN INDOORS ONLY. • USE A DAMP CLOTH OR SPONGE TO SURFACE CLEAN. • DO NOT SUBMERGE THE BIG AL STEP STOOL IN WATER.
