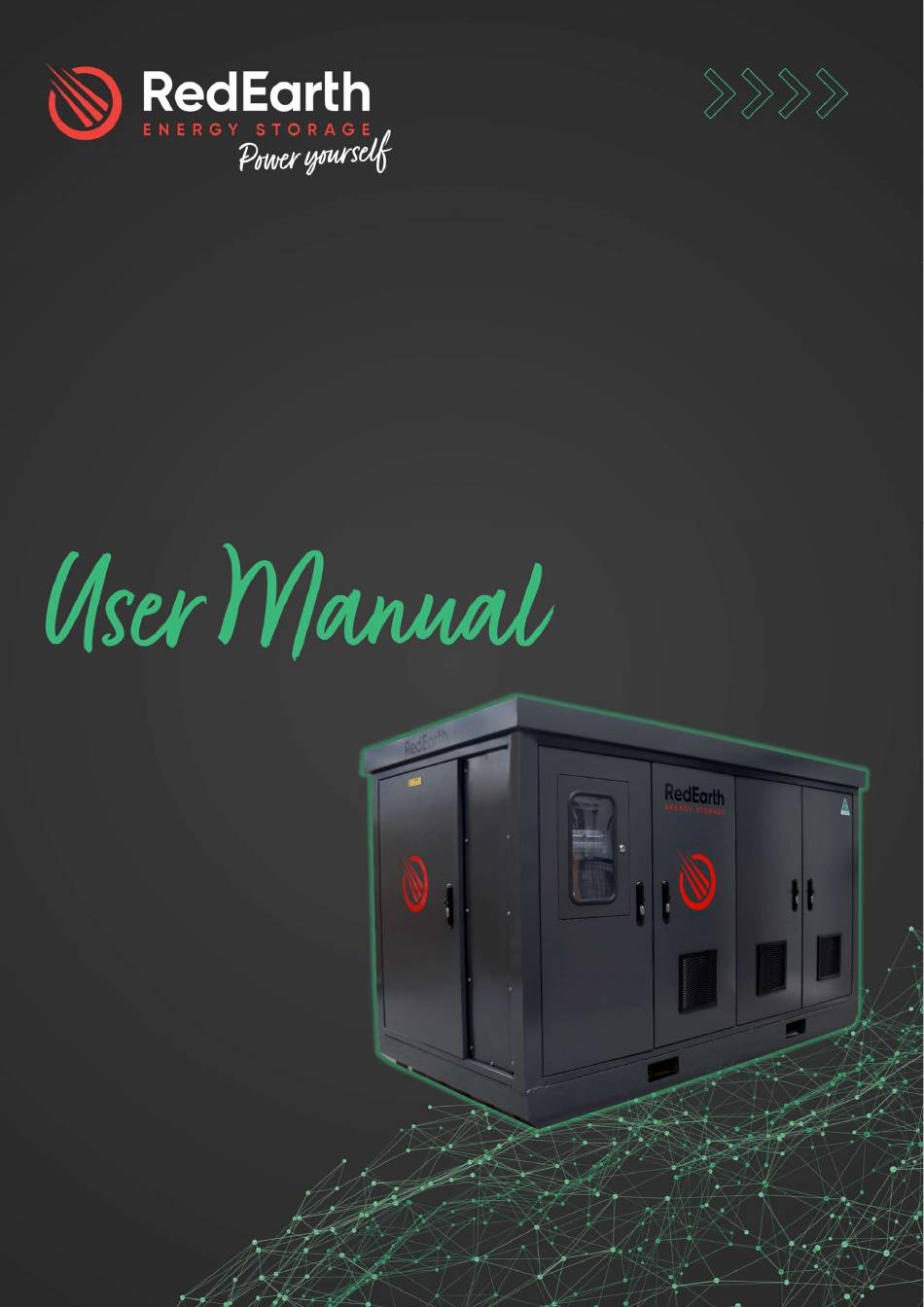

- Page 1 CopperHead INTEGRATED BATTERY SYSTEM—ON AND OFF-GRID Three Phase Model www.redearth.energy...
- Page 2 RedEarth operates with the belief that electricity will be the primary energy source in the future, and that every business and residence can generate more clean, green electricity than it can consume – meaning they can financially capitalise on their excess solar energy.
-
Page 3: Table Of Contents
End of life recycling ............................21 Services and Options Available for Your CopperHead ................22 RedEarth Energy Storage For sales enquiries contact sales@redearth.energy For technical support: support@redearth.energy 15 Fienta Place, Darra BRISBANE QLD 4076 | 1800 733 637 | www.redearth.energy... -
Page 4: Safety
AS/NZS 5139:2019 equipment The CopperHead must only be installed by suitably qualified personnel who have read and are familiar with its operation and hazards. The battery provided with this system must be charged only by the Selectronics inverter. Do not attempt to charge the batteries with any other charger device or connect any devices directly to the DC battery bus unless approved by RedEarth. -
Page 5: About Your Copperhead
It uses Selectronics SP Pro battery inverters together with RedEarth’s TROPPO 4841 lithium batteries (LFP). As standard it is combined with Selectronic-certified Fronius inverters making it an AC-coupled system. DC-coupled options with AERL MPPTs are possible. -
Page 6: Dimensions And Clearance/Positioning Information
211cm H x 380cm W x 250cm D This allows for opening of doors and easy install/removal of batteries. RedEarth Energy Storage For sales enquiries contact sales@redearth.energy For technical support: support@redearth.energy 15 Fienta Place, Darra BRISBANE QLD 4076 | 1800 733 637 | www.redearth.energy... -
Page 7: Copperhead Overview
CopperHead Overview What is in your CopperHead This is an overview of what is in your CopperHead. The front section contains the inverters, DC Breakers, AC switch gear, communications, and has 4 x key-lockable doors. The rear section contains the TROPPO batteries (between 9 and 33 depending on model) and has 3 x key- lockable doors. - Page 8 Each battery has a capacity of 4.1kWh. An optional 15kW CopperHead is available (3x5kW inverters) can be provided with a minimum of 9 up to 33 batteries (4.1kWh per battery), which provides from 36.9kWh to 135.3kWh nominal capacity.
-
Page 9: Copperhead Components And Their Features
The LEDs on the front of the SP Pro indicate the health and operational status of your system. Refer to the ‘How to operate your CopperHead’ section for more details. RedEarth Energy Storage For sales enquiries contact sales@redearth.energy For technical support: support@redearth.energy... -
Page 10: Solar Inverter
1:1 ratio is allowed. By-pass feature In the event of a system failure, the CopperHead is fitted with a three-position By-pass switch, which can allow loads to be run directly from the generator (or grid). The changeover switch has three positioning option: [1], neutral and [2]. -
Page 11: 12-Volt Battery Charger For The Generator Starter Battery
If the generator does not turn on (e.g., no fuel or flat starter battery), the batteries will discharge down to 20% and then the inverter will stop outputting power under “LOW SOC fault”. See the ‘How to operate your CopperHead’ section of this manual. -
Page 12: How To Operate Your Copperhead
NOTE: Power-up shutdown procedures are the same, only in the reverse RedEarth Energy Storage For sales enquiries contact sales@redearth.energy For technical support: support@redearth.energy 15 Fienta Place, Darra BRISBANE QLD 4076 | 1800 733 637 | www.redearth.energy... -
Page 13: Normal Operation
By-pass operation In the event of maintenance on the CopperHead or failure of the SP Pro and/or the Fronius resulting in no power output from the CopperHead, you can configure the system to operate in By-pass mode. This allows the generator (or grid if connected) to provide power directly to the loads. -
Page 14: Restart Under Low Battery Soc
4. Wait for the Fronius to start producing power and charge the batteries to a safe level (at least 3 lights on the battery gauge). 5. Turn ON the Main Switch AC Switch (Main Switch OUT) of the CopperHead that is supplying the loads. Your System should start operating normally again. -
Page 15: Understanding The Display On The Selectronics Inverter
CopperHead | User Manual Jan 2023 Understanding the display on the Selectronics inverter RedEarth Energy Storage For sales enquiries contact sales@redearth.energy For technical support: support@redearth.energy 15 Fienta Place, Darra BRISBANE QLD 4076 | 1800 733 637 | www.redearth.energy... -
Page 16: Air-Conditioning
Air-conditioning Your CopperHead is fitted with two air-conditioning units on the left and right-side doors to ensure that it is running at optimal temperature which reduces the risk of overheating and premature failure, meaning that just like the serpent it is named after, it will continue to operate where most others would perish. -
Page 17: Eight Steps To Remove/Replace A Failed Unit
In the event that the air-conditioning unit fails, it has been designed to be easily replaced as outlined below: 1. Cut the cable ties that attach the cable to the roof inside the CopperHead. 2. Unplug the cable from the power point. -
Page 18: How To Monitor Your Copperhead
Entering the information requested and registering your warranty will help you to get the most from your investment in your CopperHead as well as RedEarth’s PPP. RedEarth Energy Storage For sales enquiries contact sales@redearth.energy For technical support: support@redearth.energy 15 Fienta Place, Darra BRISBANE QLD 4076 | 1800 733 637 | www.redearth.energy... - Page 19 CopperHead | User Manual Jan 2023 After completing the warranty registration, you can easily create an account on the RedEarth EMU app with the same email and start viewing your system straight away. If you have any issues email support@redearth.energy or call RedEarth tech support number (details in footer below).
-
Page 20: Faq's
We recommend either reviewing your loads or contacting RedEarth for more energy storage. RedEarth Energy Storage For sales enquiries contact sales@redearth.energy For technical support: support@redearth.energy 15 Fienta Place, Darra BRISBANE QLD 4076 | 1800 733 637 | www.redearth.energy... -
Page 21: Maintenance And End Of Life
End of life recycling Please contact RedEarth Energy Storage to arrange recycling of your battery. Working on the inside of the CopperHead system is restricted to qualified personnel. RedEarth recommend installation by licensed electricians only. Note that government rebates for solar panels are only available if solar panels are installed by a... -
Page 22: Services And Options Available For Your Copperhead
CopperHead As a RedEarth CopperHead system owner you have the choice of joining our customer community. You just need to register your contact details with RedEarth by scanning the QR code on your system with your mobile phone and following the prompts. - Page 23 CopperHead | User Manual Jan 2023 RedEarth Energy Storage For sales enquiries contact sales@redearth.energy For technical support: support@redearth.energy 15 Fienta Place, Darra BRISBANE QLD 4076 | 1800 733 637 | www.redearth.energy...
- Page 24 CopperHead | User Manual Jan 2023 RedEarth Energy Storage For sales enquiries contact sales@redearth.energy For technical support: support@redearth.energy 15 Fienta Place, Darra BRISBANE QLD 4076 | 1800 733 637 | www.redearth.energy...
