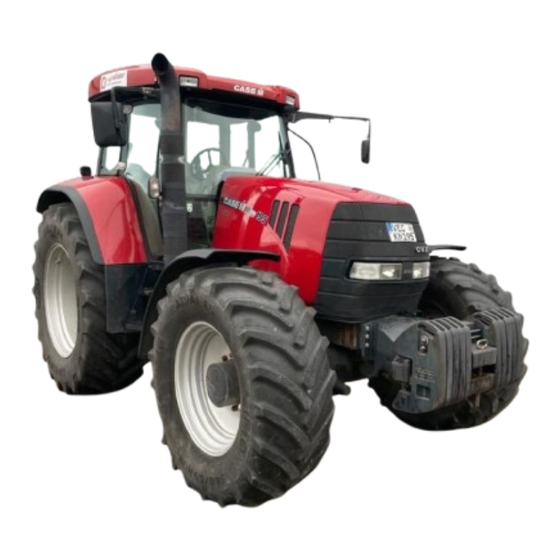

- Page 1 CASE CVX 140, CVX 150, CVX 160 CVX 175, CVX 195 Tractors Sva 87532337...
- Page 2 It is your responsibility to comply with the applicable regulations and guidelines and to follow the instructions given by CNH Österreich GmbH on working with and maintaining the machine. Sva 87532337 GE © 2006 CNH Österreich GmbH January 2007 Case is a registered trademark of CNH Österreich GmbH.
- Page 3 TABLE OF CONTENTS TO THE USER ..............................1 ASSEMBLIES AND SERIAL NUMBERS......................5 ASSEMBLIES AND SERIAL NUMBERS ..................... 5 SAFETY AND SAFETY PANELS........................7 SAFETY AND SAFETY PANELS ........................ 7 FITTINGS/OPERATING ELEMENTS ......................13 FITTINGS/OPERATING ELEMENTS ......................13 DRIVER’S SEAT ............................14 CONTROL ELEMENTS ..........................
- Page 4 TYRES/WHEELS/WHEELBASE/BALLAST ....................149 FRONT AXLE AND FRONT AXLE TRACK WIDTH ADJUSTMENT ............151 SETTING THE FRONT AXLE TRACK WIDTHS ..................152 SETTING THE REAR AXLE TRACK WIDTHS ..................154 ALL-WHEEL TYRE COMBINATIONS ..................... 158 FRONT WHEEL FENDERS – ALL-WHEEL DRIVE TRACTOR (if fitted) ..........160 TRACTOR BALLAST ..........................
- Page 5 TO THE USER CASE CVX 150 TRACTOR SC07A003 Manufacturer: Dealer’s stamp CNH Österreich GmbH Steyrerstrasse 32 A-4300 St. Valentin AUSTRIA...
- Page 6 Read the manual before starting to use your tractor. Consult your dealer if you require any further information. This manual contains important information about how to work safely with your Case tractor, and about how to set it up and maintain it for reliable operation. To make this information easy for you to find, this manual is sub- divided into separate chapters, as shown in the table of contents.
- Page 7 Noise levels in the driver’s cab Driving noise level Closed Open Model Annex II* Annex II* Annex IV** 74,0 80,0 83,0 CVX 140 73,0*** 79,0*** 84,0*** 74,0 80,0 83,0 CVX 150 73,0*** 79,0*** 84,0*** 74,0...
- Page 8 TO THE USER Keeping this manual safe The Store this operators manual in the glovebox provided in your tractor. Ensure that this manual remains complete and in good condition. Ask your dealer for additional copies of the manual, or for any other information or support you require for your vehicle.
- Page 9 Enter the type designation for the vehicle, the Product Identification Number (P.I.N.) and serial numbers below in their corresponding lines. When ordering components or requesting information, you may need to quote this numerical data to the CASE dealer. Keep a written record of these identification numbers. Store these data records and the vehicle licensing documentation in a safe place.
- Page 10 ASSEMBLIES/SERIAL NUMBERS ENGINE 620-98/1_R10838 SC05M012 SC04A89 Serial no. _______________________________ Serial no. _______________________________ ENGINE CARTRIDGE SC04A140 SC04A094 Serial no. _______________________________ Serial no. _______________________________ ALL-WHEEL DRIVE AXLE (if fitted) ALL-WHEEL DRIVE AXLE independent suspension (if equipped with this) SC04A091 SC04A092 Serial no. _______________________________ Serial no.
- Page 11 Correct usage also involves strict compliance with the operating, maintenance and repair instructions specified by the manufacturer. This Case tractor can only be used, maintained and repaired by people who are familiar with the special characteristics of this vehicle and who have been advised of the relevant safety regulations (accident prevention).
- Page 12 SAFETY/SAFETY PANELS RULES FOR GENERAL SAFETY AND FOR ACCIDENT PREVENTION In addition to the instructions contained in these operating instructions, you must also observe the rules governing general safety and accident prevention. Comply with relevant legislation whenever you are using public highways. Before starting work, first familiarise yourself with all the equipment and operating elements and their functions.
- Page 13 SAFETY/SAFETY PANELS LEAVING THE TRACTOR When leaving the tractor, always ensure that it is not able to roll away (apply parking brake, chock the wheels). Remove the ignition key and lock the cab. Never leave the tractor unattended while the engine is running. Never leave the driver’s platform/cab while the tractor is in motion.
- Page 14 SAFETY/SAFETY PANELS HAZARDOUS CHEMICALS Serious injury can result from exposure to hazardous chemicals, or physical contact with them. The fluids, oils, paints, adhesives, coolants etc. Used on your vehicle can be dangerous. Always consider the environmental implications before carrying out any maintenance work on the vehicle, and prior to disposing of old fluids and waste oil.
