Summary of Contents for Teledyne Lecroy RP2060

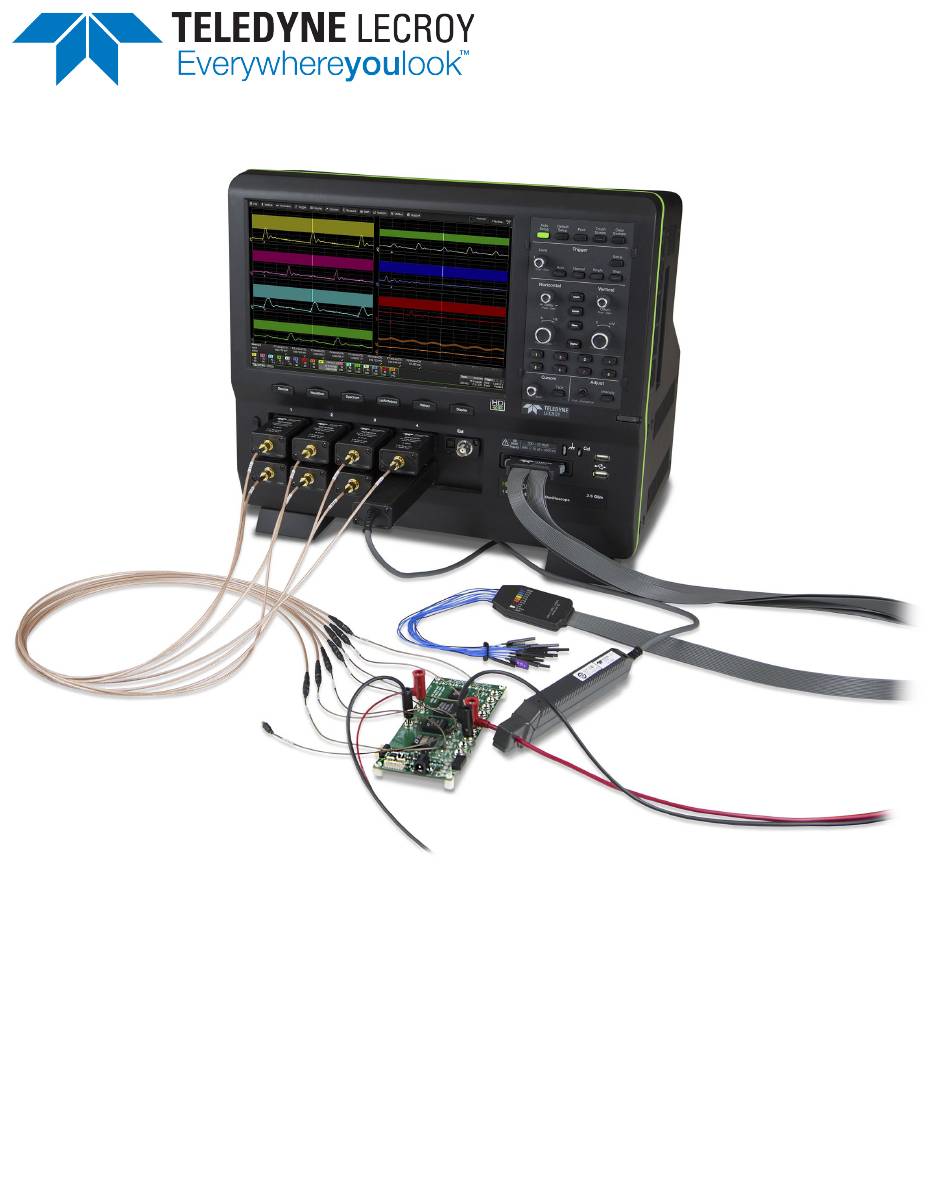

- Page 1 User Manual RP2060, RP4060 Power Rail Probes...
- Page 2 Customers are permitted to duplicate and distribute Teledyne LeCroy documentation for internal educational purposes. Teledyne LeCroy is a registered trademark of Teledyne LeCroy, Inc. Windows is a registered trademark of Microsoft Corporation. Other product or brand names are trademarks or requested trademarks of their respective holders.
-
Page 3: Table Of Contents
Nominal Characteristics ..........................9 Typical Characteristics ..........................9 Physical Characteristics ..........................10 Environmental Characteristics ........................10 Probe Impedance vs. Frequency (RP4060 and RP2060) ..............11 RP4060 Frequency Response ........................12 RP2060 Frequency Response ........................14 Frequency Response vs. Source Impedance ..................16 Operation ................................ - Page 4 RP2060/RP4060 Power Rail Probe RP___60 Test Record ............................ 31 Care and Maintenance ..........................32 Cleaning ................................32 Calibration Interval ............................32 Service Strategy ............................32 Troubleshooting ............................32 Returning a Product for Service ......................... 33 Technical Support ............................33 Warranty ................................. 34...
-
Page 5: Safety Instructions
Comply with the following safety precautions to avoid personal injury or damage to your equipment: Use only as specified. The probe is intended to be used only with compatible Teledyne LeCroy instruments. Using the probe and/or the equipment it is connected to in a manner other than specified may impair the probe’s protection mechanisms. -
Page 6: Probe Handling
RP2060/RP4060 Power Rail Probe Do not remove the probe’s casing. Touching exposed connections may result in electric shock. Do not disassemble the probe or remove inside parts. Refer all service to Teledyne LeCroy personnel. Use only indoors within the operational environment listed. Do not use in wet or explosive atmospheres. -
Page 7: Introduction
User Manual Introduction The Teledyne LeCroy RP2060 and RP4060 Power Rail Probes meet the specific requirements of those who need to acquire a low-voltage DC signal in order to test: Digital power management components such as power management IC (PMIC);... - Page 8 DAC provides ± 60 V range. This permits the offset value to be set with high accuracy (0.1% ± 3 mV). The output is through a BNC connection to the Teledyne LeCroy ProBus interface into a 50 Ω oscilloscope termination. An Auto Zero grounding switch permits Auto Zero of the DC value at any time without disconnecting the probe from the device under test (DUT).
-
Page 9: Compatibility
Circuit. ProBus Interface The rail probe uses the ProBus interface to connect to Teledyne LeCroy oscilloscopes. With the ProBus interface, the probe becomes an integral part of the measuring instrument. Power is provided to the probe through the interface, so there is no need for a separate power supply or batteries, and attenuation is automatically identified. -
Page 10: Probe Kit
NOTE: While there are a variety of ultra-miniature PCB mounts and cables available from other manufacturers that are compatible with U.FL, Teledyne LeCroy has validated the frequency response of the supplied U.FL cables and mounts as a system, and we recommend that is how... - Page 11 User Manual U.FL 3 mm x 3 mm PCB Mount (Receptacle) The 3 mm U.FL PCB mount is one fourth the size of the MCX and accepts the ultra-miniature U.FL cables. Five are supplied with the rail probe, and more may be purchased from Hirose using part number U.FL-R-SMT-1(10) T.
-
Page 12: Rp4000-Browser Accessory
RP2060/RP4060 Power Rail Probe RP4000-BROWSER Accessory The RP4000-BROWSER accessory is a ÷1 high-frequency transmission line browser tip. The RP4000 browser tip and cable attaches to the SMA connector on the rail probe’s housing, which is terminated with high input impedance near DC and with the oscilloscope’s 50 Ω coupling at high frequency. -
Page 13: Specifications
Warranted Characteristics Warranted characteristics are parameters with guaranteed performance. Unless otherwise noted, tests are provided in the Performance Verification Procedure for all warranted specifications. Bandwidth RP2060: 2 GHz (MCX cable with PCB Mount) RP4060: 4 GHz Attenuation Accuracy 1% into 50 Ω... -
Page 14: Physical Characteristics
RP2060/RP4060 Power Rail Probe Physical Characteristics Probe Weight 620 grams (1.37 lb.) net, including packaging material (with all accessories and carrying case) Probe Dimensions Probe: 38.1 mm W x 15.9 mm H x 73 mm L (1 1/2” x 5/8” x 2 7/8”) SMA-to-MCX Extension Cable: 914 mm (36”) length... -
Page 15: Probe Impedance Vs. Frequency (Rp4060 And Rp2060)
User Manual Probe Impedance vs. Frequency (RP4060 and RP2060) -
Page 16: Rp4060 Frequency Response
RP2060/RP4060 Power Rail Probe RP4060 Frequency Response RP4060 MCX Cable into MCX PCB Mount RP4060 with Solder-in Tip... - Page 17 User Manual RP4060 with U.FL Cable into U.FL PCB Mount RP4060 with Browser Tip...
-
Page 18: Rp2060 Frequency Response
RP2060/RP4060 Power Rail Probe RP2060 Frequency Response RP2060 MCX Cable into MCX PCB Mount RP2060 with Solder-in Tip... - Page 19 User Manual RP2060 with U.FL Cable into U.FL PCB Mount RP2060 with Browser Tip...
-
Page 20: Frequency Response Vs. Source Impedance
RP2060/RP4060 Power Rail Probe Frequency Response vs. Source Impedance The rail probe is intended to probe low-impedance DC voltage and power rails. The probe’s input impedance is optimized to provide a flat frequency response from DC to rated bandwidth when the source impedance is very low, but input impedance declines from 50 kΩ... -
Page 21: Operation
User Manual Operation NOTE: Operation of the probe requires the correct version of MAUI firmware (see p.5). To confirm the version installed, choose Utilities > Utilities Setup from the oscilloscope menu bar, then open the Status dialog. Probe Assembly 1. Attach the SMA-to-MCX extension cable to the SMA connector on the bottom of the probe housing. - Page 22 RP2060/RP4060 Power Rail Probe Measuring Full DC Rail Voltage To measure the full DC rail voltage beyond the ±800 mV input dynamic range rating of the probe, use the rail probe accessories to connect as follows: 1. Set the oscilloscope channel Coupling to DC1MΩ.
- Page 23 User Manual Direct U.FL Connection The U.FL PCB mounts are used with the U.FL Ultra-miniature Coaxial Cables. This connection is only rated to 3 GHz, but the small footprint makes it useful for very dense or compact circuits. 1. Solder the U.FL PCB mounts to the board. NOTE: For manual soldering, maximum temperature is 350 °C for five minutes.
- Page 24 RP2060/RP4060 Power Rail Probe Solder-in Connection The MCX to solder-in connection is a great solution for probing DC rails on a crowded board. The exposed ~3 mm inner conductor is connected to the DC rail, while the exposed ~0.5 mm outer conductor is connected to ground, ideally with as short a ground lead as possible.
- Page 25 User Manual Browser Tip Connection To use the browser tip with the rail probe, remove the MCX extension cable and attach the browser cable to the probe housing. Place the browser tip on the test point, keeping the body as perpendicular to the circuit as posible to minimize parasitic capacitance.
-
Page 26: Operating From The Oscilloscope
For accurate measurements, allow the probe to warm up for at least 20 minutes after being connected to the oscilloscope. The rail probe has been designed for use with Teledyne LeCroy oscilloscopes equipped with the ProBus interface. When the probe is attached to the oscilloscope’s input connector, the instrument will recognize the probe and: Set the oscilloscope input termination to DC50Ω... - Page 27 NOTE: On Teledyne LeCroy oscilloscopes, the input offset displayed is the amount of offset required to zero the applied voltage (e.g., a -1 V offset is required to vertically center a 1 V DC rail on the grid).
-
Page 28: Best Practices
RP2060/RP4060 Power Rail Probe Best Practices Avoiding Damage to DUT CAUTION: Low voltage DC power rails carry large amounts of current, and if they are shorted to ground, large currents will flow, potentially damaging the DUT. To prevent this: Inspect solder-in and PCB mount connections carefully before powering up the DUT to •... -
Page 29: Using The Rp4000-Browser As A Transmission Line Probe
User Manual Using the RP4000-BROWSER as a Transmission Line Probe The RP4000-BROWSER accessory is the same as a PP066 Transmission Line Probe, except with a “pass-through” 0 Ω resistor pre-installed at shipment to provide 1x attenuation. To use the RP4000-BROWSER tip as a transmission line probe, install the supplied 450 Ω (÷10) or 950 Ω... -
Page 30: Performance Verification
RP2060/RP4060 Power Rail Probe Performance Verification This procedure can be used to verify the warranted characteristics of a rail probe. It tests LF Attenuation Accuracy and Offset Accuracy. The recommended calibration interval for the rail probe is one year. Perform the complete performance verification procedure as the first step of annual calibration. -
Page 31: Functional Check
User Manual Functional Check The functional check will verify the basic operation of the probe functions. It is recommended to perform the functional check prior to the performance verification procedure. 1. Connect the rail probe to the oscilloscope C1 input. 2. - Page 32 RP2060/RP4060 Power Rail Probe RPxx60 Performance Verification test setup.
- Page 33 User Manual Check LF Attenuation Accuracy 1. Connect the rail probe and test equipment as shown in the diagram on page 28. 2. Set both DMMs to measure Vac. 3. Set the function generator to output a sine wave of 50 Hz, amplitude 200 mVrms, at HiZ. 4.
- Page 34 RP2060/RP4060 Power Rail Probe ( �������� ���� ���� 10 ������������ ���� ���� – �������� ���� ���� 5 ������������ ���� ���� ) 11. Calculate the offset accuracy (%) using the equation: . 100 �������� ���� ���� 8 ������������ ���� ���� NOTE: Make sure all values are converted to Volts before calculating.
- Page 35 User Manual RP___60 Test Record Serial Number: _____________________________________________ Asset/Tracking Number: _____________________________________________ Date: _____________________________________________ Technician: _____________________________________________ Equipment Model Serial Number Calibration Due Date Digital Multimeter 1 Digital Multimeter 2 Oscilloscope Function Generator N/A* * The function generator is used for making relative measurements. The output of the generator is measured with a DMM or oscilloscope.
-
Page 36: Care And Maintenance
The rail probe utilizes fine pitch surface mount devices, making it impractical to repair in the field. Defective probes must be returned to a Teledyne LeCroy service facility for diagnosis and exchange. A defective probe under warranty will be replaced with a factory refurbished probe. A probe that is not under warranty can be exchanged for a factory refurbished probe. -
Page 37: Returning A Product For Service
3. Pack the case in its original shipping box, or an equivalent carton with adequate padding to avoid damage in transit. 4. Mark the outside of the box with the shipping address given to you by Teledyne LeCroy. Be sure to add the following: ATTN:<RMA code assigned by Teledyne LeCroy>... -
Page 38: Warranty
Teledyne LeCroy shall not be responsible for any defect, damage, or failure caused by any of the following: a) attempted repairs or installations by personnel other than Teledyne LeCroy representatives, or b) improper connection to incompatible equipment, or c) for any damage or malfunction caused by the use of non-Teledyne LeCroy supplies. -
Page 39: Certifications
European Union requirements to Directives 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE). For more information about proper disposal and recycling of your Teledyne LeCroy product, visit teledynelecroy.com/recycle. Unless otherwise specified, all materials and processes are compliant with RoHS Directive... - Page 40 rpxx60-user-manual_15nov22.pdf November, 2022...
