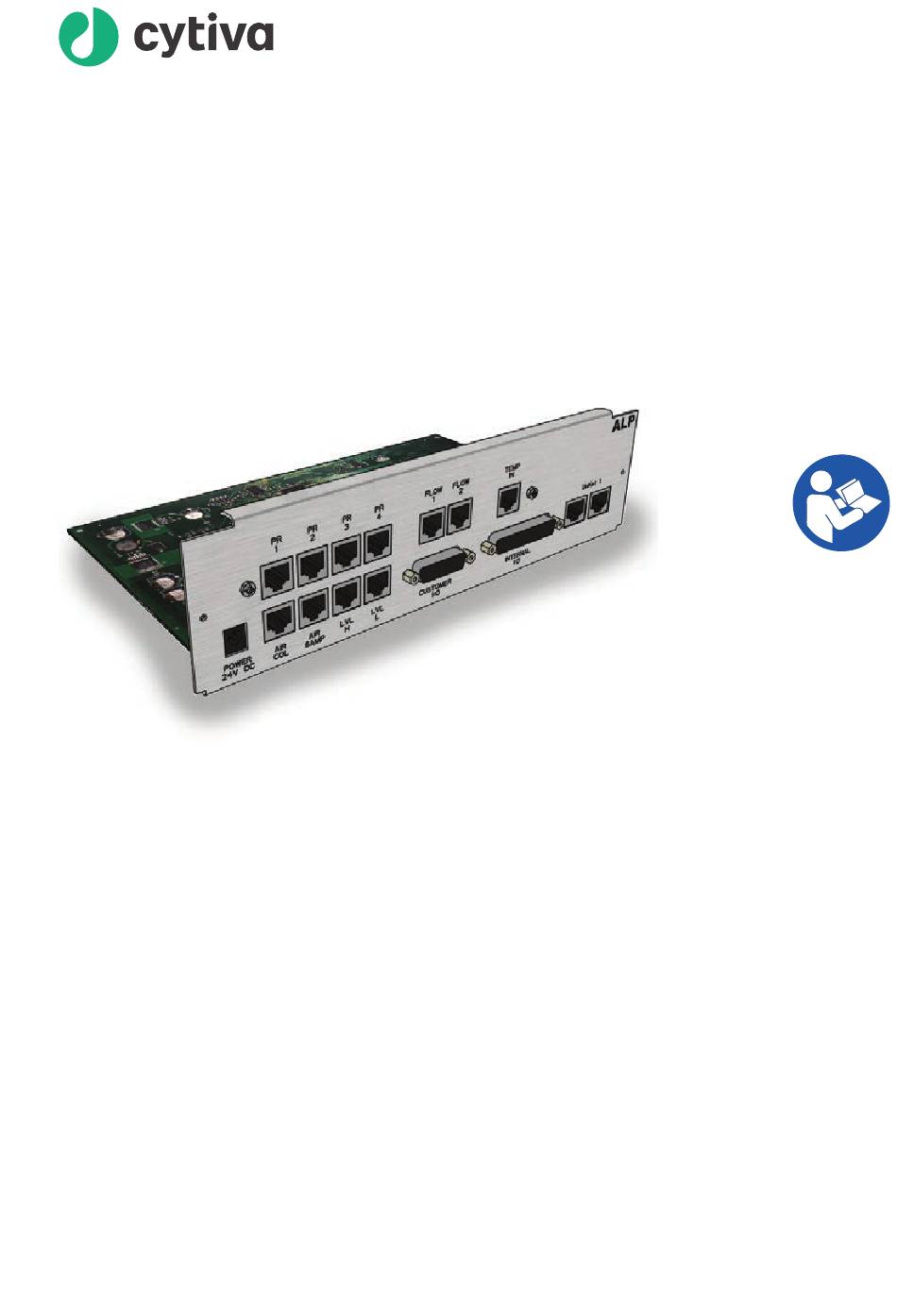

- Page 1 Monitor ALP-900 User Manual cytiva.com...
-
Page 2: Table Of Contents
Cleaning ................................20 Troubleshooting ....................21 Before calling Cytiva support ........................22 Troubleshooting guide ..........................23 Reference information ..................26 Technical specifications ..........................27 Health and Safety Declaration Form ...................... 28 Index ........................... 30 Monitor ALP-900 User Manual 29265903 AB... -
Page 3: Introduction
About this chapter This chapter contains important user information, descriptions of safety notices and intended use of the ALP-900 (Air, Level, Pressure transmitter) monitor. In this chapter Section See page About this manual Important information Monitor ALP-900 User Manual 29265903 AB... -
Page 4: About This Manual
ALP-900 system. Typographical conventions Software items are identified in the text by bold italic text. Hardware items are identified in the text by bold text. In electronic format, references in italics are clickable hyperlinks. Monitor ALP-900 User Manual 29265903 AB... -
Page 5: Important Information
• The user must read and understand the Safety Instructions chapter in this manual and in the Operating instructions manual of the parent system. Safety notices This user documentation contains safety notices (WARNING, CAUTION, and NOTICE) concerning the safe use of the product. See definitions below. Monitor ALP-900 User Manual 29265903 AB... - Page 6 Notes and tips Note: A note is used to indicate information that is important for trouble-free and optimal use of the product. Tip: A tip contains useful information that can improve or optimize your proce- dures. Monitor ALP-900 User Manual 29265903 AB...
-
Page 7: Safety Instructions
Follow the instructions provided to avoid injury to the operator or other personnel, damage to the product, or to other equipment in the area. NOTICE The ALP-900 safety module that monitors the pump/operating pressure is a protection for the system and NOT the column. Monitor ALP-900 User Manual 29265903 AB... -
Page 8: Instrument Description
3 Instrument description Instrument description About this chapter This chapter gives an overview of the ALP-900 monitor, and a brief description of its function. In this chapter Section See page Instrument Modules Monitor ALP-900 User Manual 29265903 AB... -
Page 9: Instrument

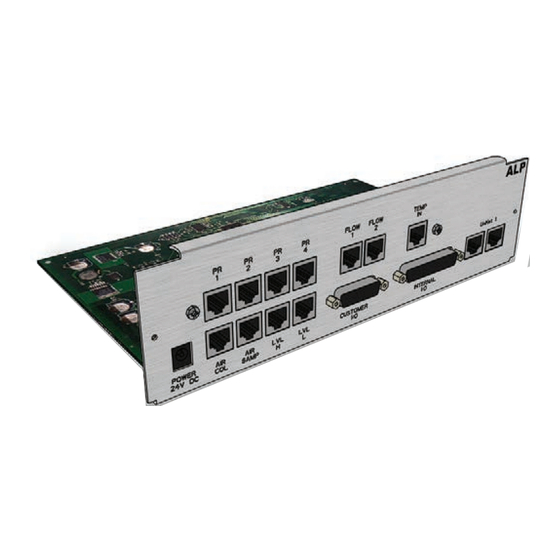

Parent system ALP-900 functionality ÄKTAprocess • Air detection • Pressure measurement and surveillance • Temperature measurement and surveillance UniFlux • Pressure measurement and surveillance • Temperature measurement and surveillance BioProcess • Pressure measurement and surveillance Monitor ALP-900 User Manual 29265903 AB... - Page 10 3 Instrument description 3.1 Instrument Illustration of ALP-900 The illustration below shows the ALP-900 monitor. Monitor ALP-900 User Manual 29265903 AB...
-
Page 11: Modules
The illustration below shows the locations and gives brief descriptions of the connec- tors on ALP-900. Part Function Pressure sensor connector Flow meter connector (future option for BioProcess systems) Temperature sensor IN connector UniNet 1 connector Internal I/O connector Monitor ALP-900 User Manual 29265903 AB... - Page 12 (PCV), pressure sensors are located before the pressure control valves. For systems configured with two pumps, pressure sensors are located between the pumps and the PCVs. These sensors are monitored by an additional ALP-900 monitor. Monitor ALP-900 User Manual 29265903 AB...
- Page 13 Refer to the manual of the parent system for information about the location of the customer I/O connector and mapping between the pins and signal types. For more information about suitable applications and technical solutions, contact Cytiva customer service. Monitor ALP-900 User Manual 29265903 AB...
-
Page 14: Installation
This chapter describes how to use the movable air sensor connected to the ALP-900. It also describes how the ALP-900 calculates the volume of accumulated air. In this chapter Section See page Attaching the movable air sensor Calculate accumulated air Monitor ALP-900 User Manual 29265903 AB... -
Page 15: Attaching The Movable Air Sensor
The movable air sensor may be optionally placed on any inlet. Place the movable air sensor (AIR SAMP) on a horizontal flow path (e.g. on the inlet). Rotate the connector, so that it is vertical, as marked on the air sensor. Monitor ALP-900 User Manual 29265903 AB... - Page 16 The air sensor connector may face either upwards, downwards, left or right. Downwards is recommended to minimize the risk for ingress of liquid into the connector when disconnecting it. If the sensor is oriented in any other angle it may not detect small bubbles properly. Monitor ALP-900 User Manual 29265903 AB...
-
Page 17: Calculate Accumulated Air
The calculation of accumulated air is started when a new run is started and stopped when the system is set to END. When the system is set to RUN again the accumulated air is set to zero and a new accumulated air volume is calculated for this run. Monitor ALP-900 User Manual 29265903 AB... -
Page 18: Maintenance
5 Maintenance Maintenance About this chapter This chapter provides information to enable users and service personnel to clean and maintain the product. In this chapter Section See page Maintenance program Cleaning Monitor ALP-900 User Manual 29265903 AB... -
Page 19: Maintenance Program
5 Maintenance 5.1 Maintenance program Maintenance program Periodic maintenance Refer to the manual of the parent system for information about maintenance of the ALP-900 monitor. Monitor ALP-900 User Manual 29265903 AB... -
Page 20: Cleaning
Form or the Health and Safety Declaration Form for Product Return or Servicing, depending on whether the instrument is going to be serviced on site or returned for service, respectively. Copy the form you need from Section 7.2 Health and Safety Declaration Form, on page Monitor ALP-900 User Manual 29265903 AB... -
Page 21: Troubleshooting
If the suggested actions in this guide do not solve the problem, or if the problem is not covered by this guide, contact your Cytiva representative for advice. In this chapter... -
Page 22: Before Calling Cytiva Support
6.1 Before calling Cytiva support Before calling Cytiva support Instrument information Before contacting Cytiva for support, access the system control software and select Maintenance Manager in the System Control module to display the instrument information (e.g. version number, for reference). -
Page 23: Troubleshooting Guide
1. Check if the pressure transmitter in position X on the ALP-900 monitor is connected. 2. Restart the parent system. 3. Contact a Cytiva service engineer if the error message reappears. Com error – pressure X (1 – 4) A communication error has occurred with pressure transmitter X. - Page 24 The temperature in the electronics cabinet is above the recommended limit of 40°C. 1. Check the cooling filter. If the filter is clogged, replace the filter. 2. If not, contact a Cytiva service engi- neer. Monitor ALP-900 User Manual 29265903 AB...
- Page 25 Due to safety regulations the system pump cannot be started. 1. Connect the pressure transmitter. 2. Restart the parent system. 3. Contact a Cytiva service engineer if the error message reappears. Pressure transmitter not conn. (pos. The pressure transmitter in position 4 on the ALP-900 monitor is not connected.
-
Page 26: Reference Information
About this chapter This chapter lists the technical specifications of ALP-900. The chapter also includes a Health and Safety Declaration form for service. In this chapter Section See page Technical specifications Health and Safety Declaration Form Monitor ALP-900 User Manual 29265903 AB... -
Page 27: Technical Specifications
Pressure module Parameter Specification Accuracy ± 0.12 bar of read value Pressure range Refer to the General Specification for the parent system. Degree of protection Parameter Specification Pressure transmitter IP66 Air detection cells IP66 Monitor ALP-900 User Manual 29265903 AB... -
Page 28: Health And Safety Declaration Form
Service Ticket #: To make the mutual protection and safety of Cytiva service personnel and our customers, all equipment and work areas must be clean and free of any hazardous contaminants before a Service Engineer starts a repair. To avoid delays in the servicing of your equipment, complete this checklist and present it to the Service Engineer upon arrival. - Page 29 To make sure the mutual protection and safety of Cytiva personnel, our customers, transportation personnel and our environment, all equipment must be clean and free of any hazardous contaminants before shipping to Cytiva. To avoid delays in the processing of your equipment, complete this checklist and include it with your return.
-
Page 30: Index
Important user information, 5 description, 13 Instrument, 9 Troubleshooting, 21, 23 functionality, parent system, pressure monitors, 23 temperature monitors, 23 Instrument description, 9 Typographical conventions, 4 Intended use, 5 Level sensor, 12 description, 12 Monitor ALP-900 User Manual 29265903 AB... - Page 31 Page intentionally left blank...
- Page 32 © 2020–2021 Cytiva All goods and services are sold subject to the terms and conditions of sale of the supplying company operating within the Cytiva business. A copy of those terms and conditions is available on request. Contact your local Cytiva representative for the most current information.
