ZooZ ZAC93 User Manual

800 Z-WAVE GPIO MODULE
Z-Wave Plus Static Controller to easily
Ÿ
add Z-Wave communication to your
smart home ecosystem
Latest S2 security protocol for a truly
Ÿ
private network
800 Series Long Range Z-Wave for fast,
Ÿ
low-power direct communication
Extended range up to a mile in open
Ÿ
space when using Long Range
Designed for Raspberry Pi and Home
Ÿ
Assistant Yellow hardware
Model Number: ZAC93
Ÿ
Z-Wave Frequency: 908.42 MHz
Ÿ
Power: 3.3 VDC
Ÿ
SDK: 7.18.01
Ÿ
Operating Temperature: 32-104° F
Ÿ
Operating Humidity: Up to 85%
Ÿ
Installation and Use: Indoor only
Ÿ
Dimensions: 1.1" x 1.1"
Ÿ

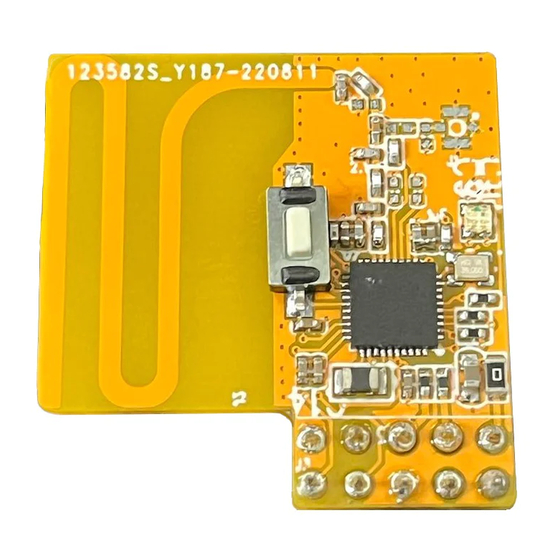

Use this 800 Series Z-Wave Plus GPIO
Module as a wireless radio for your host
controller, such as Raspberry Pi. Follow the
detailed instructions in the link below to
connect the module. Please proceed with
caution when installing the device.
Once the controller is set up and connected
to your home automation so ware, you can
enjoy a fully secure, private Z-Wave Plus
mesh network. If the so ware supports Z-
Wave Long Range, enable direct
communication between your devices and
the controller for supreme range up to 1
mile and a larger network size up to 4000
nodes.
Questions? ask@getzooz.com

GPIO MODULE AS SECONDARY CONTROLLER

You can use the GPIO module as a
secondary controller to your current Z-Wave
system if it accepts additional controllers.
To enroll the module in your current system,
send the inclusion command and put the
module into learning mode, using the
SerialAPI mode in the interface.
The GPIO Module can only be reset by the
host so ware while it's in SerialAPI mode.
The device is reset once an appropriate
command from the host so ware is sent to
reset the Z-Wave network.
There is no way to manually reset the
module without a connection to the host
so ware.
www.getzooz.com/register
USER MANUAL
ZAC93
www.getzooz.com

FEATURES

SPECIFICATIONS

SET-UP

Scan the code with your
phone's camera and click
on the link to access
detailed installation
instructions for the GPIO
module.

FACTORY RESET

Scan to register your
product for extended
Warranty, priority
customer service, and
more perks.
