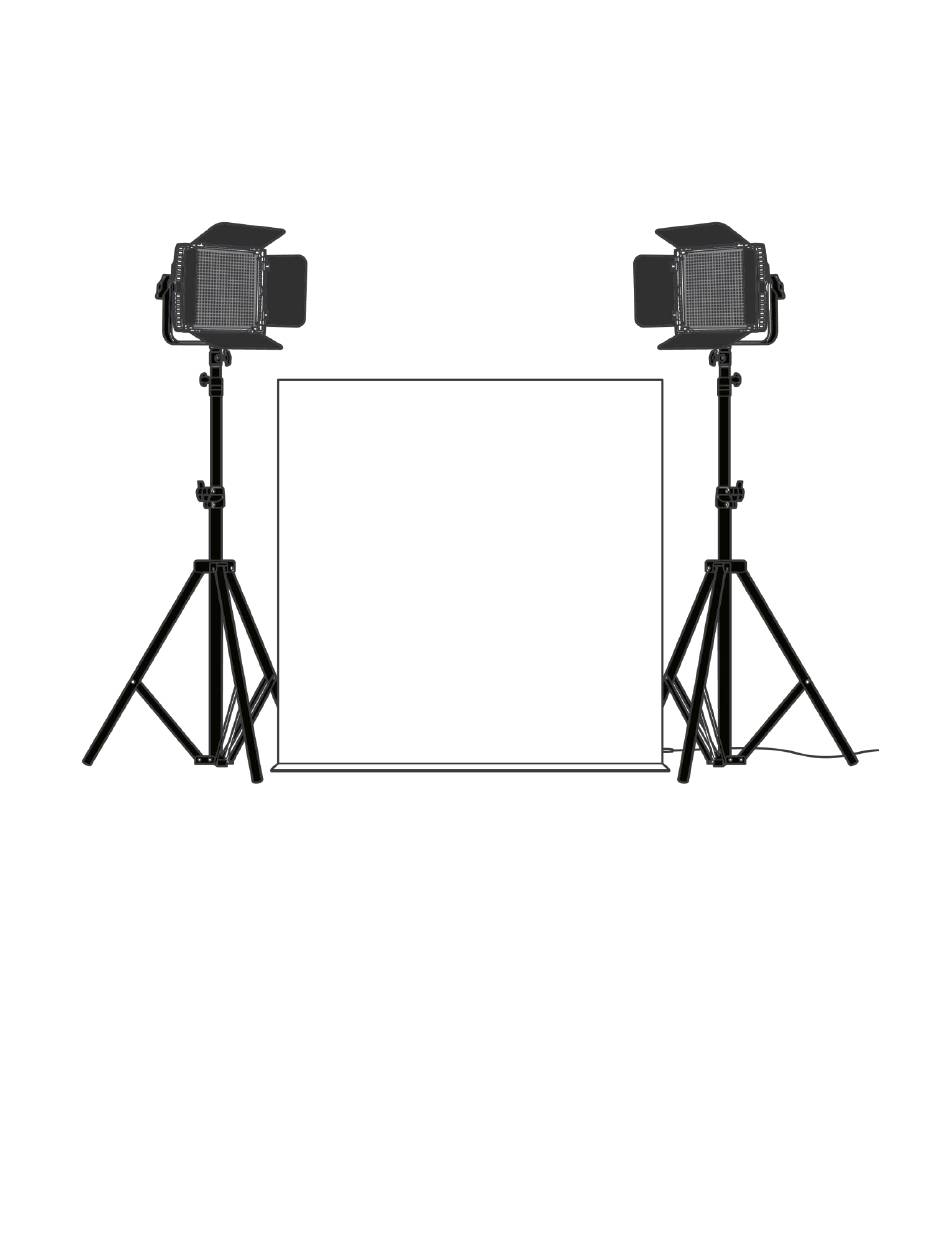

Iconasys Large LumiPad 360 Lighting System
Set up & User Guide
Included with purchase:
A. 1X Backlight Panel: 34 x 34 x 4" (86 x 86 x 10cm) – includes 24V 6A power
adaptor
B. 1X Backlight Panel Base Stand 34 x 8" (+ 6 mounting screws)
C. 2X Spectro 600 Pro LED Panel Lights – includes 2X 15 1.5A power adaptors
D. 2X Light Stands: Adjustable Height
E. 3X 36 x 36" White Panels: Use panels to convert into a Light box (2 side panels &
1 top panel)
F. Velcro Circles: Use to connect white panels to side walls of the backlight
1
© Iconasys 2013-2021
Advertisement
Related Manuals for Iconasys LumiPad 360
Summary of Contents for Iconasys LumiPad 360
- Page 1 Iconasys Large LumiPad 360 Lighting System Set up & User Guide Included with purchase: A. 1X Backlight Panel: 34 x 34 x 4” (86 x 86 x 10cm) – includes 24V 6A power adaptor B. 1X Backlight Panel Base Stand 34 x 8” (+ 6 mounting screws) C.
-
Page 2: Hardware Setup
4. Spectro 600 PRO Wireless Remote: User Guide Tutorial Video 5. Using the LumiPad 360 Lighting Kit as a Lightbox: Video Connect the Backlight Base Stand: Included in the package is a base stand for the 34 x 34” Backlight Panel. This is a 34 x 8”... - Page 3 110-240V. For international customers, a plug adaptor may be required. B. Spectro 600 LED Panel Lights: Connect to the 15V Power Adaptor. Note, this is rated for 110-240V. For international customers, a plug adaptor may be required. Spectro 600 LED Light Panel © Iconasys 2013-2021...
- Page 4 4,320LM. Typically users will utilize the lights at around 50 – 75% however this will depend on: a. The distance from the subject to the light b. The size of the subject c. The amount of light preferred on a subject © Iconasys 2013-2021...
- Page 5 These can open up and are responsible for helping users shape and concentrate light dispersion. Lights can also be angled (use ‘Angle Tilt Knob’ to adjust and set Tilt. See the set up guide video for additional information. © Iconasys 2013-2021...
- Page 6 The ability to shoot product onto pure white background If required, users can raise the height backlight panel (suggested if working with a turntable & acrylic riser) by placing a secure, flat base under the panel (ex. cinder blocks). © Iconasys 2013-2021...
- Page 7 LumiPad 360 Lighting Orientations Users will have full control over the lighting orientation to optimize product image quality. Below are some common lighting orientations:...
- Page 8 Figure A. Even height panels (shooting with clear acrylic sheet) Figure B. Left light straight on / Right light high & angled down © Iconasys 2013-2021...
- Page 9 Figure C. Shooting with 2 side wall panels Figure D. Left panel low / Right Panel high & angled down © Iconasys 2013-2021...
- Page 10 (see video) Users can convert their LumiPad 360 Lighting Kit into an enclosed lighting studio. Each package contains 3 - 36 x 36” White Panel Walls (foamcore material). Panels can connect to each side and top wall using the included Velcro strips. When used, the Panel Walls help to eliminate external light sources and help control reflections on highly reflective items.
