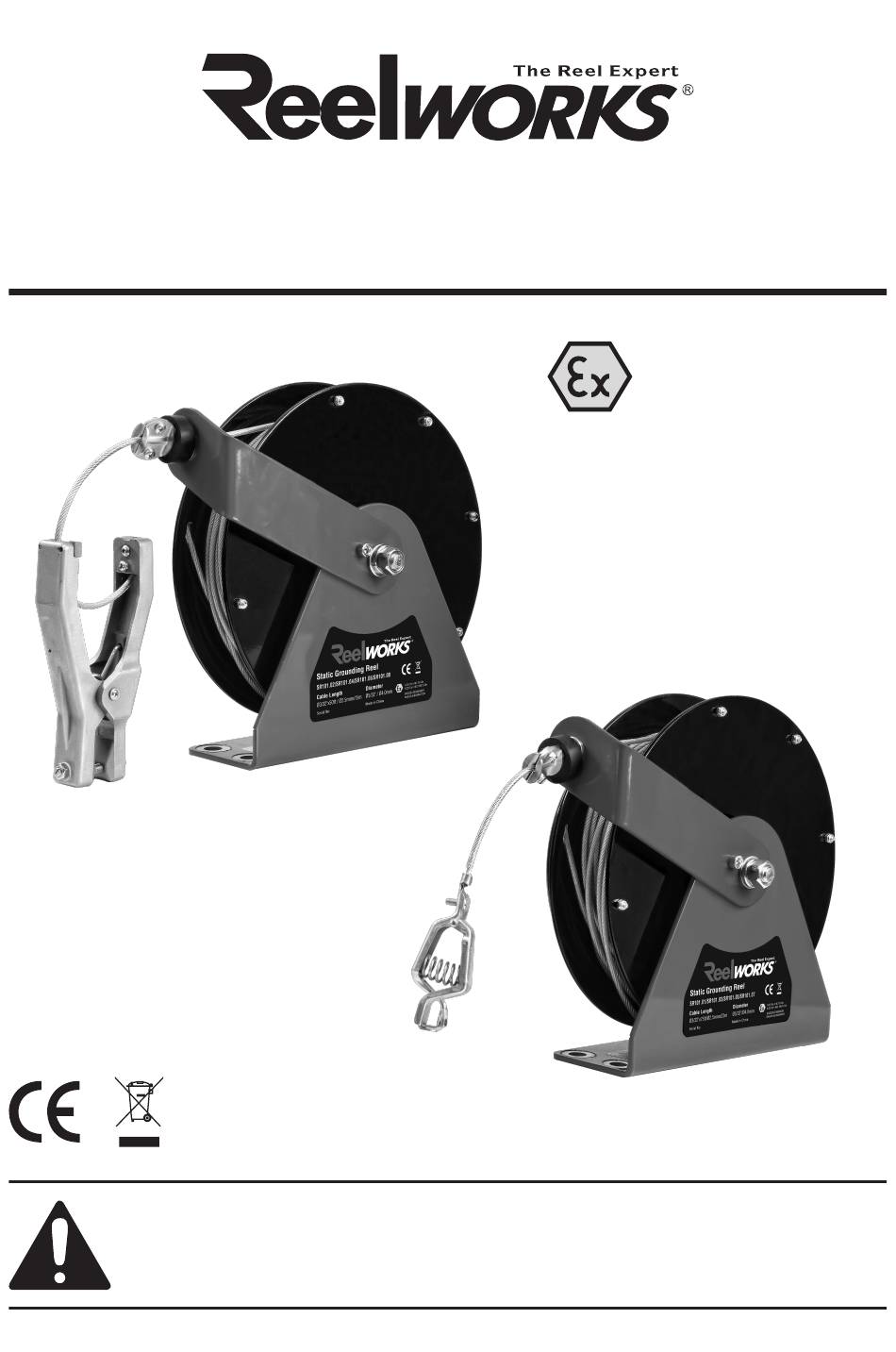

Static Grounding Reel
Instruction Manual
Piercing Clamp
WARNING:
Read carefully and understand all INSTRUCTIONS before operating. Failure to follow the safety
rules and other basic safety precautions may result in serious personal injury.
Save these instructions in a safe place and on hand so that they can be read when required.
Alligator Clamp
REV 07/14/22
II 2G Ex h IIC T6 Gb
II 2D Ex h IIIC T85°C Db
Advertisement
Table of Contents
Related Manuals for Reelworks SR101.01
Summary of Contents for Reelworks SR101.01
- Page 1 Static Grounding Reel Instruction Manual II 2G Ex h IIC T6 Gb II 2D Ex h IIIC T85°C Db Piercing Clamp Alligator Clamp WARNING: Read carefully and understand all INSTRUCTIONS before operating. Failure to follow the safety rules and other basic safety precautions may result in serious personal injury. Save these instructions in a safe place and on hand so that they can be read when required.
- Page 2 INDEX 1. SAFETY WARNINGS & STATEMENTS ------------------------------------------ 1 2. DISCLAIMER ---------------------------------------------------------------------------- 1 3. MAIN USES ---------------------------------------------------------------------------- 1 4. TECHNICAL PARAMETERS -------------------------------------------------------- 1 5. INSTRUCTIONS FOR INSTALLATION ------------------------------------------- 2 6. INSTRUCTIONS FOR OPERATION ------------------------------------------- 2~3 7. COMMON FAULTS AND TROUBLESHOOTING METHODS --------------- 3 8.
- Page 3 4. TECHNICAL PARAMETERS Diameter of Diameter of Item No. Clamp Cable Color Length Steel Cable Outer Coating SR101.01 75' / 23m Alligator static grounding clamp SR101.02 50' / 15m Orange SR101.03 75' / 23m Piercing static grounding clamp SR101.04...
- Page 4 5. INSTRUCTIONS FOR INSTALLATION 5.1. Packing list Name Q’ty Static grounding reel Hole position installation drawing Instructions for operation 5.2. Installation procedure 1. The reel must be installed in a place that complies with current regulations and codes, and must be installed by professionals. 2.
- Page 5 6.2. Use steps 1. Before using the reel, you must use professional tools (e.g. multimeter) to measure whether the circuit between the clamped equipment and the fixing position of the reel as well as the ground is clear, and the resistance between the clip of the reel and the grounding device should be measured to be less than 10Ω...
- Page 6 10. EXPLODED VIEW AND PARTS LIST Part No. Description Q’ty Part No. Description Q’ty Nut M12 Bush Washer 12 O-ring Washer 12 Reel assembly Base assembly Note: "*" indicates wearing parts. It is recommended to stock a modest amount of wearing and consumable parts and replace such parts every 1 year.
- Page 7 11. TRANSPORTATION AND STORAGE 1. During transportation and storage of this product, avoid exposure to direct sunlight, rain and dropping, prohibit contact and mixing with corrosive substances, and keep it 1m away from heating devices. 2. During transportation, loading and unloading of this product, rough operations are strictly forbidden, such as throwing, dropping, tossing and treading on.
- Page 8 Intradin (Shanghai) Machinery Co., Ltd. iti-fluid@intradinchina.com www.intradin.com Size: 145x210mm 157克铜版纸 REV 07/14/22 6.02.00002...
