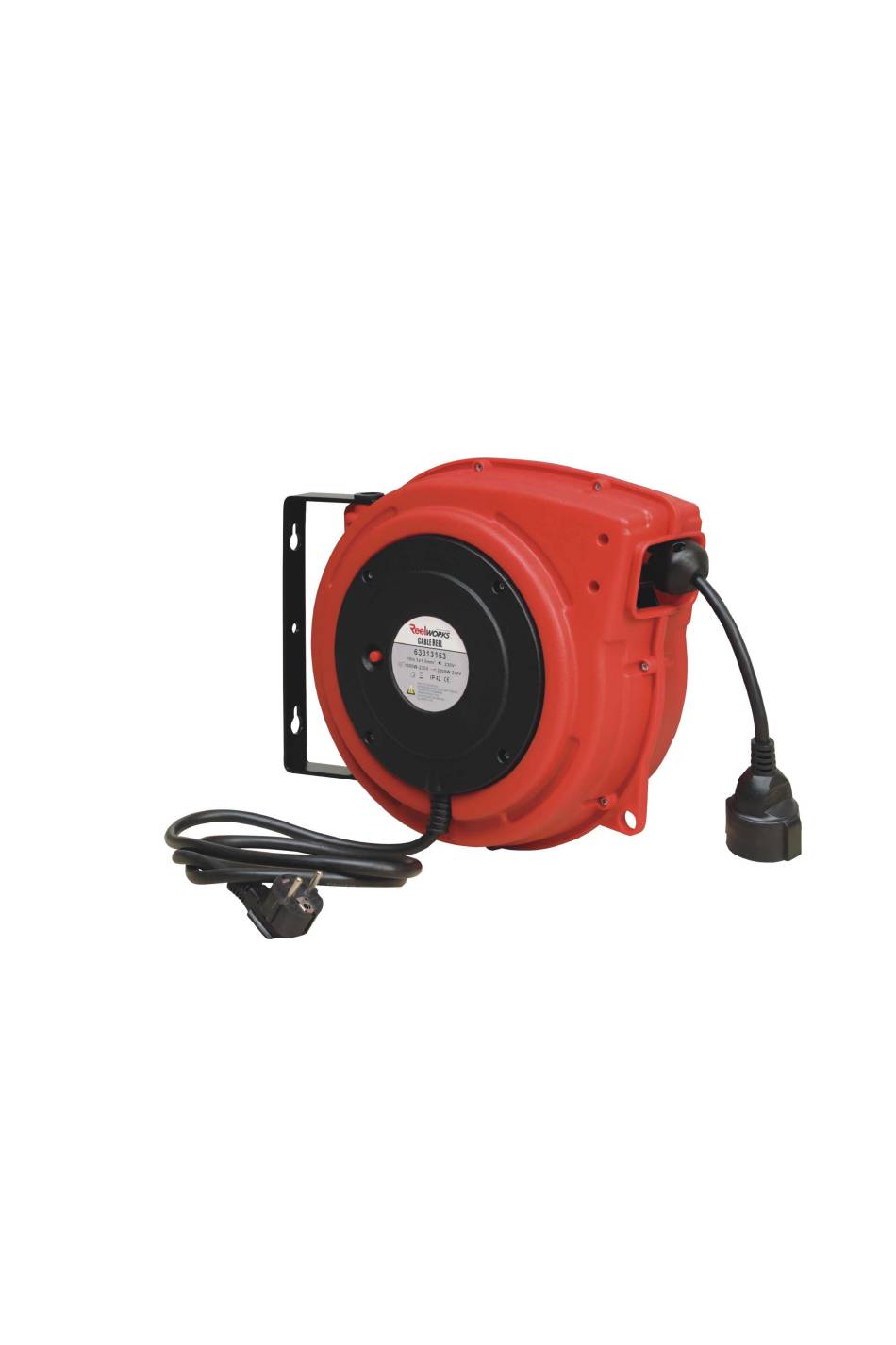

- Page 1 Europe Instructi on Manual for 6331 series Cable Reel...
-
Page 2: Technical Details
WARNING: Read carefully and understand all INSTRUCTIONS before operating. Failure to follow the safety rules and other basic safety precautions may result in serious personal injury. Save these instructions in a safe place and on hand so that they can be read when required. -
Page 3: Safety Precautions
Safety Precautions GENERAL SAFETY RULES WARNING: Read and understand all instructions. WARNING: The warnings, cautions, and instructions discussed in this instruction manual cannot cover all possible conditions or situations that could occur. It must be understood by the operator that common sense and caution are factors which cannot be built into this product, but must be supplied by the operator. -
Page 4: Operation
The reel base has three 8.5mm drilled holes for mounting on a suitable flat surface. Using the three holes in the base, mount the reel in the desired location. Be sure to use appropriate hardware and tighten securely. If cable stopper adjustment is required, pull cable form reel and allow to latch at desired length. - Page 5 3. To unlatch, slowly pull out the cable until the “clicking” noise stops, then let cable retract until the cable stopper rests against the cable guide. 4. When over loading, the thermal cut-out will cut off automatically, then push the red button until restore.
-
Page 6: Maintenance
Maintenance Make sure the cable is in proper working order. Clean the cable with a cloth dipped in warm water to remove dirt or deposits and ensure correct rewinding. Do not use detergents or solvents which could prove incompatible with cable-winder materials. -
Page 7: Terminal Block
Exploded and Parts list Part No. Description Q’ty Part No. Description Q’ty Fixed Base Screw Washer Lead-in Cable Assembly Fixed Plate Protect sheath Small Left Cover Clamp Thermal cut-out Screw Movable Plate Connect Wire Left Cover Screw Bracket Main Spring Ratchet Spring Small Right Cover Screw...
