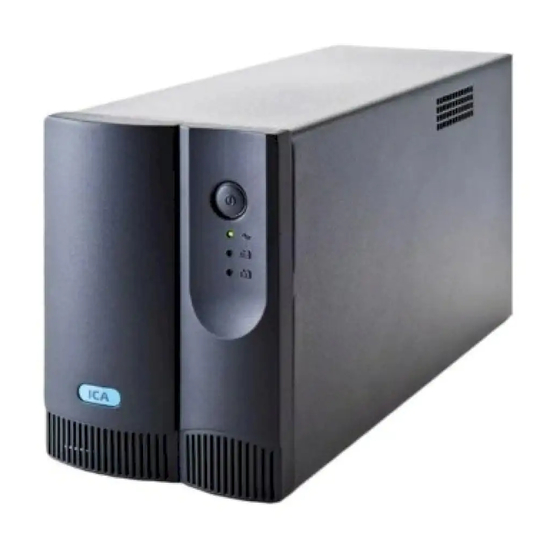

- Page 1 USER’S MANUAL BUKU PETUNJUK PEMAKAIAN CS 638 UNINTERRUPTIBLE CS 1238 POWER SUPPLY CS SERIES Rev. 05 481-11C0030-151...
- Page 2 I. SAFETY NOTES / CATATAN KESELAMATAN Electrical Safety Keselamatan Listrik Do not work alone under hazardous Jangan bekerja sendiri dalam situasi conditions. berbahaya. High current through conductive materials Tegangan tinggi melalui bahan konduktif could cause severe burns. dapat menyebabkan luka bakar. Check that the power cord(s), plug(s), and Periksa agar kabel listrik, fiting, dan soket socket are in good condition.
- Page 3 Do not dispose of leftover Jangan buang sisa kemasan produk packaging for this product as ini sebagai limbah rumah tangga: household waste: Take it to a Bawa ke tempat pengumpulan collection point for recycling. untuk didaur ulang. For information about the nearest recycling facility, Untuk informasi tentang tempat daur ulang terdekat, contact your local waste disposal authority.
- Page 4 III. TECHNICAL SPECIFICATION / SPESIFIKASI TEKNIS ITEM SPECIFICATION UNIT REMARKS MODEL CS638 CS1238 CAPACITY VA/W 600 / 300 1200 / 600 Maximum Voltage 165 ~ 250 Current Max. Load & Charger Frequency 50 ± 3 Protection Fuse Sealed Lead Acid Internal Battery 1 x 12V/7Ah 2 x 12V/7Ah...
- Page 5 IV. FRONT PANEL & REAR PANEL VIEW / TAMPAK PANEL DEPAN & PANEL BELAKANG service centre / technical support : http://www.icaups.co.id/support.php OUTPUT TELEPHONE/MODEM PROTECTOR TELEPHONE/MODEM PROTECTOR OUTPUT FUSE FUSE INPUT INPUT FRONT PANEL VIEW REAR PANEL VIEW REAR PANEL VIEW UPS CS638, CS1238 UPS CS638 UPS CS1238...
- Page 6 V. UPS INSTALLATION / PEMASANGAN UPS 1. Unpacking and Inspection. 1. Buka kemasan dan Pemeriksaan. Unpack the packaging and check the package Buka kemasan dan periksa isinya. Isi dari contents. The contains of package; UPS unit, kemasan; unit UPS, buku petunjuk, dan kartu user manual, and warranty card.
-
Page 7: Start Up Ups / Menghidupkan Ups
VII. START UP UPS / MENGHIDUPKAN UPS 1. Make sure main switch on the “off” position 1. Pastikan tombol pada posisi “off” dan tidak and no load is connected to the outlet. ada beban yang terpasang pada stopkontak 2. Connect inlet with power cord to a power keluaran. -
Page 8: Troubleshooting / Petunjuk Ketidak Normalan
IX. TROUBLESHOOTING / PETUNJUK KETIDAK NORMALAN SYSTEM PROBLEM CAUSE RECOMMENDED SOLUTION 1. Main voltage <165 Vac or 1. Check your mains voltage. “Green Led” indicator not >250 Vac. 2. If main voltage >165 Vac and light. 2. Problem in transfer <250 Vac, call for service.
