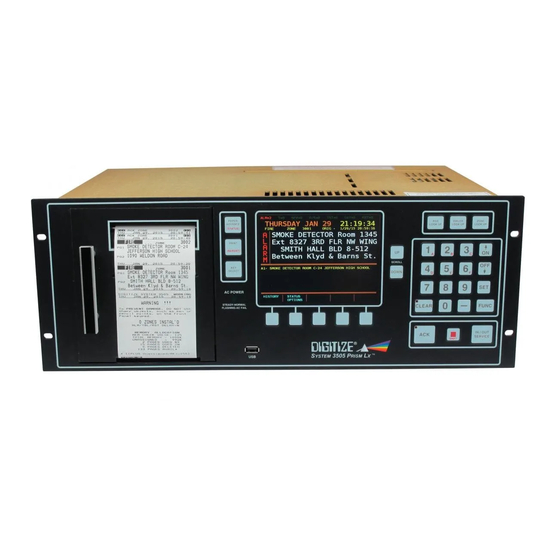

- Page 1 SYSTEM 3505/Prism LX to DESPLEX with Two Man Rule, Command Option Interface & Dual Rack interfaces INSTALLATION OPERATION MANUAL Digitize, Inc. 158 Edison Road Lake Hopatcong, New Jersey 07849 Part Number: 700293-0001 Tel: (973) 663-1011 Revision: D http://www.digitize-inc.com Issue Date: 10/21...
- Page 2 Digitize, Inc. 158 Edison Road Lake Hopatcong, NJ 07849-2217 The DIGITIZE logo and DESPLEX are registered trademark of Digitize, Inc.
- Page 3 This manual has been prepared by DIGITIZE, INC. for use by its licensees, distributors and customers. The information contained herein is the property of DIGITIZE, INC. and may not be copied, disclosed or reproduced, in whole or in part, without the prior written approval of DIGITIZE, INC. Any unauthorized...
- Page 4 FCC NOTICE In compliance with Paragraph 15.105 of the FCC Rules and Regulations, the following notice is provided. NOTE: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.
-
Page 5: Table Of Contents
Table of Contents Overview ............................1 SYSTEM 3505/Prism LX Interface ....................1 Two Man Rule ..........................2 42 SET Menu ........................... 3 Phantom Account Numbers ......................8 Canned Events ..........................9 Auto Restore ............................ 9 Printer Output Tape Example ......................10 Command and Control ........................ -
Page 7: Overview
This manual covers the connectivity and operation of the DESPLEX equipment from the SYSTEM 3505/PRISM LX as well as the use of the two man rule. Newly added in Rev D is the ability to connect to two independent DESPLEX SYSTEMs. -
Page 8: Two Man Rule
DESPLEX racks and the Subscriber units. • Just like the SCT product, the SYSTEM 3505/PRISM LX cannot advise if a device is no longer connected if such disconnection occurred while the SYSTEM 3505/PRISM LX was turned OFF, then turned ON when the Subscriber or other parts of the system have been disconnected. -
Page 9: 42 Set Menu
SYSTEM 3505/PRISM LX via the 24 SET Menu. 42 SET Menu The SYSTEM 3505/PRISM LX manual provides information on how to access the SET menus as well as entering the password needed to access these menus. For the purpose of this manual, it will be assumed that the user understands how to access this menu. -
Page 10: Figure 2, After Entry To The 42 Set Menu, The Unit Will Display This Screen
If you’re Prism LX has two independent DESPLEX racks you will first need to select which rack accounts you want to set up. Figure 2, After entry to the 42 SET Menu, the unit will display this screen. 700293-0001 Rev D Page 4... - Page 11 For a Prism LX system, the display now adds 70 as this is part of the account number in either single rack or dual rack systems If you selected DESPLEX “A” Rack, the screen will start with the “7A” account number.
-
Page 12: Figure 3, Selecting Exit Delay Or Latch
Figure 3, Selecting Exit Delay or Latch You can select the desired mode by pressing the soft key “TOGGL LATCH/EXIT DELAY before or after entering the desired account to select between Exit Delay or Latch. Figure 4, Enter desired Panel and Zone As you enter the desired two digit Zone (enter leading zero for Zone 1-9 as 01 –... -
Page 13: Figure 5, Adding Desired Point To The Entered Panel And Zone
Figure 5, Adding desired Point to the entered Panel and Zone As you continue to enter the balance of the desired account by entering the Point number, the SYSTEM 3505/PRISM LX will now add the account specific message if the user previously entered it as account “700701-01”. -
Page 14: Phantom Account Numbers
Some of these events include AC or DC failure as well as other events. The SYSTEM 3505/PRISM LX assigns a phantom zone in the range of -80 thru -99 to these events. A complete table of these accounts follows: “... -
Page 15: Canned Events
For this reason, the SYSTEM 3505/PRISM LX will auto restore these events after 45 seconds of activation as follows: The SYSTEM 3505/PRISM LX places the -8x accounts back to auto restore in 45 seconds after the last -8X account is received, thus if you get any account that ends in a -8x it will restore after 45 seconds. -
Page 16: Printer Output Tape Example
Printer Output Tape Example The following two printouts illustrate what happens during an exit delay when the “Main” exit door is opened. The first printout illustrates that the main exit door was closed prior to the exit delay ending. The second the exit door is not closed prior to the exit delay expiring. -
Page 17: Command And Control
The response to that request was noted on the SCT terminal. The SYSTEM 3505/PRISM LX allows you to mimic this format by entering the desired Panel and Loop and then selecting the proper soft key to activate the desired command. -
Page 18: Figure 9, Enter The Desired Panel And Loop That You Want To Query
Figure 9, Enter the Desired Panel and Loop that you want to query In this case Panel 07 Loop 01 was entered. Figure 10, Selecting the desired Command (selection #1) Press the “DESPLEX Commands” soft key until you see the desired command. -
Page 19: Appendix A Wiring Diagram
Press the “DESPLEX Commands” soft key until you see the desired command. Appendix A Wiring diagram Drawing 800346-0001 illustrates how the SYSTEM 3505/PRISM LX is attached to the DESPLEX rack via an RS-232. The interconnection between the DESPLEX and the 700293-0001 Rev D Page 13... - Page 20 SYSTEM 3505/PRISM LX is not the same configuration and the DESPLEX to the SCT DOS PC. 700293-0001 Rev D Page 14...
- Page 22 Digitizes option, the part or parts of the products which prove defective in material or workmanship for 12 months within 15 months after shipment by Digitize. Buyer must pass along to its initial customer or user ("Customer") a minimum of 12 months’ coverage within the 15-month warranty period, provided the Buyer gives Digitize prompt notice of any defect and satisfactory proof thereof.
