2022/11/20 23:20

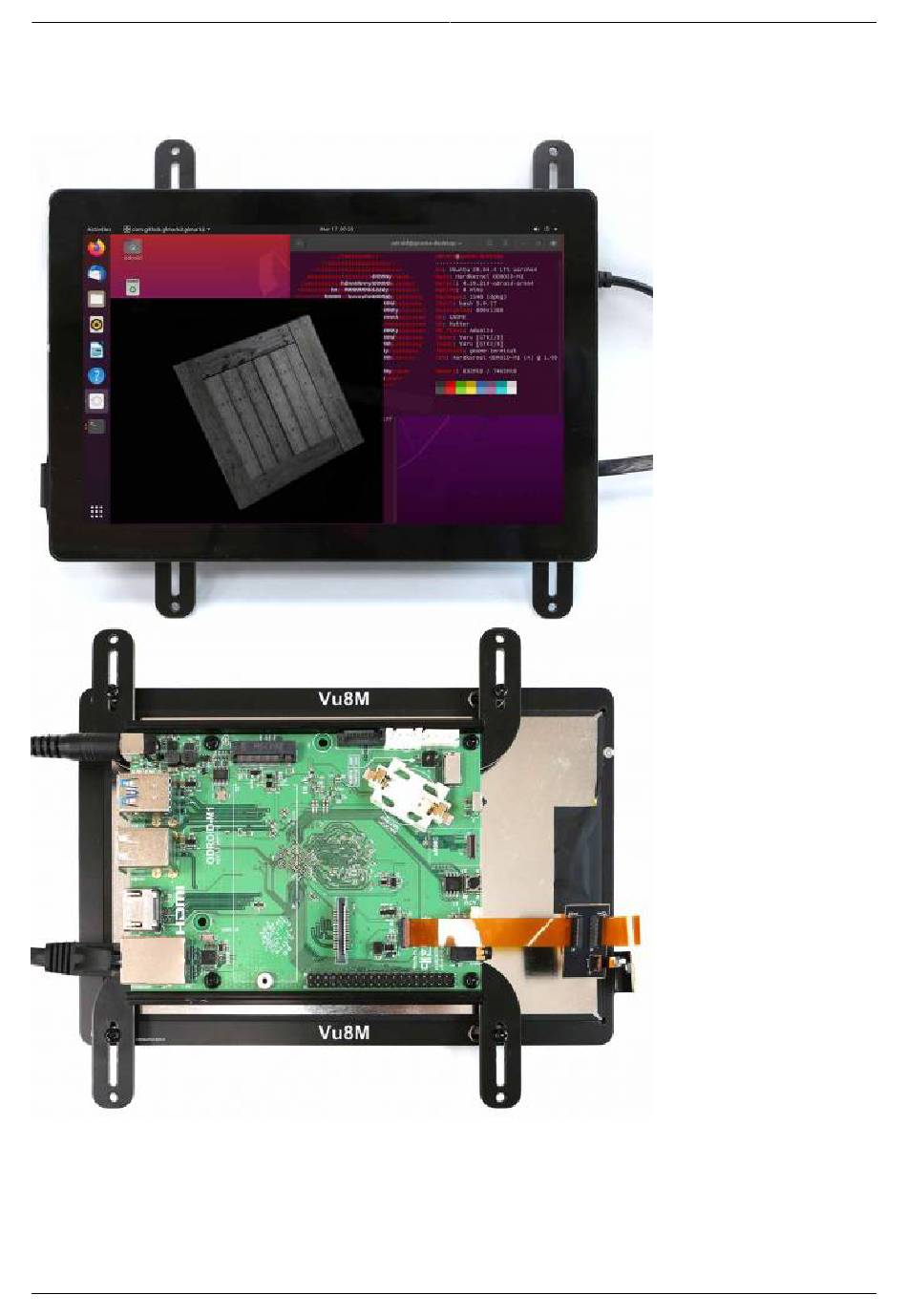

ODROID-Vu8M
The ODROID-Vu8M is dedicated to ODROID-M1. It can only be used via a MIPI DSI Connector(J1) on
M1.
It has a 8inch multi-touch screen.
The U Blacket PCB is required to dock Vu8 to ODROID-M1.
ODROID Wiki - https://wiki.odroid.com/
1/5
ODROID-Vu8M

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Vu8M and is the answer not in the manual?

Questions and answers

Related Manuals for ODROID Vu8M

Summary of Contents for ODROID Vu8M

  • Page 1 2022/11/20 23:20 ODROID-Vu8M ODROID-Vu8M The ODROID-Vu8M is dedicated to ODROID-M1. It can only be used via a MIPI DSI Connector(J1) on It has a 8inch multi-touch screen. The U Blacket PCB is required to dock Vu8 to ODROID-M1. ODROID Wiki - https://wiki.odroid.com/...
  • Page 2 Last update: 2022/07/26 12:27 accessory:display:vu_series:vu8m https://wiki.odroid.com/accessory/display/vu_series/vu8m Specifications 8-inch TFT-LCD 800(H) x 3(RGB) x 1280(V) pixels hardware resolution Mechanical Dimensions : 198(W) x 133.0(H) Viewable screen size : 172.224 x 107.64 mm (active area) 5 finger capacitive touch input Power consumption : 2.4W ± 10% (100% duty cycle)
  • Page 3 Mechanical drawings (DXF format) vu8m_u_blacket.dxf.zip Assembly Package includes A. Assembled 8inch TFT LCD + multi touch screen * 1EA B. M3*40(BLACK) Support * 3EA with overplus C. PM3.0x7(BLACK) BOLT * 11EA with overplus D. 60mm FPCB Cable * 2EA ODROID Wiki - https://wiki.odroid.com/...
  • Page 4 U form Blacket inserting the cable. Board Make sure to press the angle of the clamp in to Vu8M can be secure the ribbon in adjusted up to 70 place. degrees. Check the two 31pin and 6pin FPCB cables connection.
  • Page 5 2022/11/20 23:20 ODROID-Vu8M From: https://wiki.odroid.com/ - ODROID Wiki Permanent link: https://wiki.odroid.com/accessory/display/vu_series/vu8m Last update: 2022/07/26 12:27 ODROID Wiki - https://wiki.odroid.com/...
