Page 1

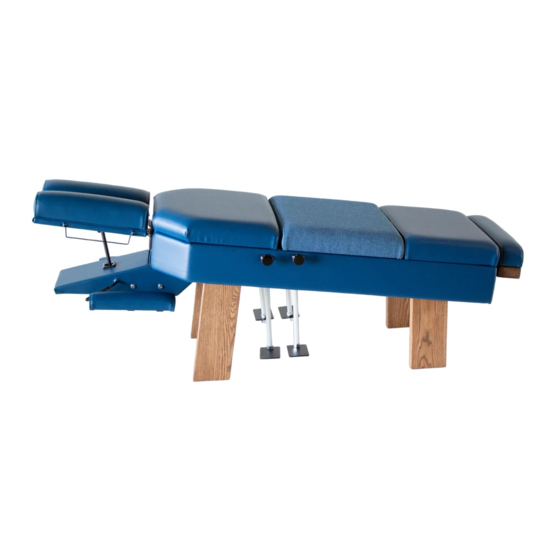

Vinyl Cleaning Table & Disinfecting Maintenance Guide Drop Table Assembly Instructions for the Following Lines: Prestige, Standard, Specialty & Practice Specials 1. Warranty, Return Policy & Table Maintenance 2. Table Assembly Instructions 3. Trouble Shooting CONTACT INFORMATION: Website: sunchirotable.com Phone: (863) 414-2893 Email: admin@sunchirotable.com...
Page 2
All Standard Line Tables carry a one-year warranty on materials and workmanship (upholstery is warranted for workmanship only). • Prestige Line and Contemporary Tables carry a two-year warranty on materials and workmanship (upholstery is warranted for workmanship only). • Elevation columns installed on Contemporary tables are warranted for one year by the manufacturer of the provided columns.
Drop Table Assembly Instructions for the Following Lines: Prestige, Standard, Specialty & Practice Specials Getting Started: All of our adjusting tables follow the same basic assembly instructions described below. To as- semble your table you will need an adjustable wrench, 1/2" wrench, 1/2" socket wrench, 7/16"...
Page 4
Unboxing Your Table Drop Tables and Therapy Tables are shipped in 2 boxes. The largest box contains the body of the table and the smaller box contains the headpiece, legs, accessories, and hardware. Start by unpacking the largest box containing the table body.
Page 5
Hardware Bag: All Tables: 1. 12 Leg bolts (10 Classic Tables) consisting of 3 inch 5/16 Hex Bolts a lock washer, and a fender washer. 2. 5 triangle bolts consisting of 3 long hex head lag screws with 1 flat washer. 3.
With the table upside down, place the wedge over the front of the table and pull it all the way forward. On your table there will be a black line with two arrows that will line up with the rear of the triangle attachment plate.
Page 7
Place each leg in its proper position on the frame. The letter on the leg is placed over the corresponding letter on the frame. Each leg is attached using three 3" Bolts w/ split lock washer and fender washer. The bolts are tightened with a 1/2"...
Page 8
Step 3: Attaching the Headpiece We offer four different headpieces. Tables with the standard forward drop, no drop, or the CBP style headpiece should consult with section 3A for assembly instructions. Doctors with the eleva- tion headpiece with forward and toggle drop, please consult section 3B for your instructions.
Page 9
This step is easier if you have a helper to pull up on the tilt release handle while you are inserting the T-bar. After inserting the T-bar into the trian- gle set the headpiece back into its hinges and have a helper insert the hinge pins.
Page 10
3B: Elevation Headpiece with Forward Drop and Toggle 2014 Prestige Elevation/Forward/Toggle Headpiece Your new headpiece only requires a few easy steps to put the headpiece back on after arrival. Please follow along below and call if you have any questions.
Page 11
Step 4: Attaching the Armrests Attaching the armrests on our tables is very simple. Just match up the armrest with the correct leg and attach using two 3 1/2" bolts w/ flat washer on outside, fender washer on inside and a 1/2 inch nylon lock nut .
Step 5: Foot Extension Foot Extensions on all 2011 tables are pre- installed at the factory. Should you need to re- move the foot rest, note that it consists of the ex- tension which is attached with two hairpins as shown to the left.
Page 13
Now simply pull the leg extension from the table and set aside. Re-installation is the reverse of removal. Also, you can use the extension without the hairpins if you wish to be able to remove the rest on demand. Step 6: Attaching the Cocking Mechanism (6A Handles, 6B Kick Drops) 6A Handles Inserting the cocking rod on an adjusting table...
Page 14
Please use the following instructions to attach the cocking handle cover plates to the side of the table. Following the assembly instructions for this table, place the cocking handle into the table slots. Be sure that the two cover plates for the cocking handle are left on the outside of the table.
Page 15
Simply attach each cover plate using the screws provided and a phillips-head screwdriver. Be sure to line up each screw with it’s corresponding pre-drilled hole in the table.
Page 16
6B Kick Drops 1. You will have been provided an appropriate number of kick drop pedals with your table. Each pedal is attached to a down rod. That down rod has a 5/8 inch nut on it and a single lock nut above it.
Page 17
Finally, complete the installation by holding the foot pedal straight out from the table and tightening the nut and lock washer completely. You may find it to be easier if a helper holds the pedal straight while you tighten the nut. Make sure to tighten the nut until the lock washer is full compressed.
Step 7: Insert the Tension Rod The tension rod is inserted into the hole on the table frame and then screwed into the white drop block. Be careful not to cross thread the hole when screwing the rod into the drop block (it should turn in smoothly).
