SYNCOLN 13100 Quick Start Manual

P.N 13100
METHANE (NATURAL GAS) DETECTOR
To avoid personal safety injury, instrument damage and
potential dangerous accident; do not use the product
before reading this manual.

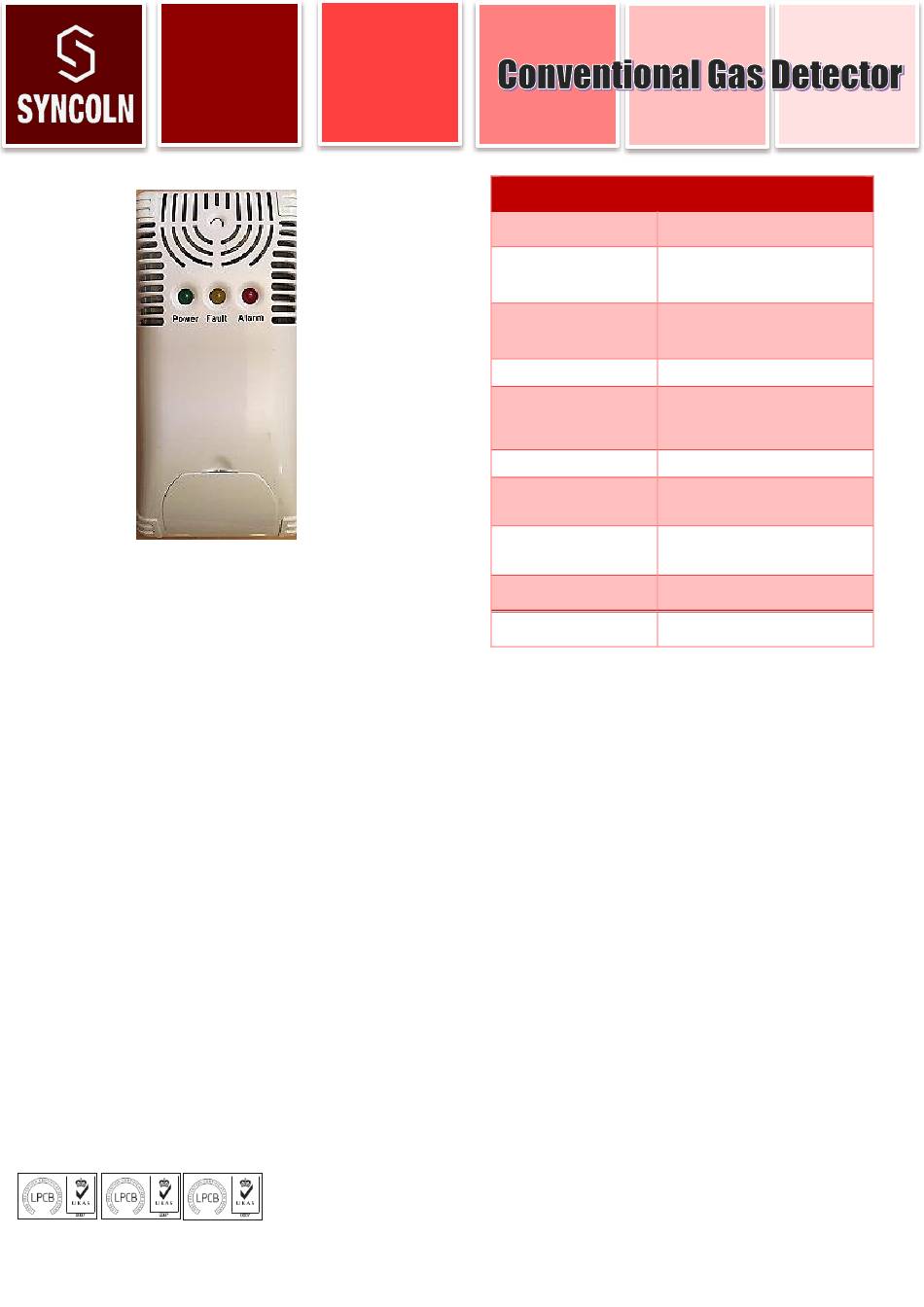

13100 Methane (Natural gas) detector is kind of Wall-
mounted household gas alarm designed to detect the
concentration of combustible gases using high quality air-
sensitive component and manufactured with advanced
technology-it provides visual and audible signals. This
product included three different colors led indicators; the
green led for "POWER", the red led for "ALARM" and the
yellow led for "MAINTNANC".
13100 gas detector has an "A" type (ALARM+Relay
output)and a certificate of conformity to Turkish
standards TS-EN 50194.
Relay contact can be used with 2 functions (Normally
opened – Normally closed). Can be controlled a Selenoid
valve or any other device.
SPECIFICATION
Operation Voltage
Operation Current
Operation
Conditions
Alarm level
Alarming method
Sound level
Relay output
Dimention
Protective class
Warranty
MOUNTING AND USING INSTRUCTIONS
Fix the appliance on the wall at a horizontal distance as 1-
2 meters from the cooker or gas source and vertical
location should be fix within 0.05-0.15 meters below the
roof. This product applies to a fixed power cable system
(2*1/5 mm² NYM cable)
Such location should be avoided:
• Covered by other things,
• Directly under the washbasing,
• Near the doors & windows or passage with strong wind,
• Easy polluted or high temperature environment near
oven,
• Water fog and drop or such moist place.
Do not use the product at cross purpose
Using 230-240V voltage so dangerous that only the
specialist electritions must install and apply.
• This product will be activated in 30 sec. after it is
energized.
230-240V/50Hz
10Ma (standy by) –
20Ma(alarm)
Termperature 0-50ºC
Humidity: <%95
5000 ppm(%0.5)
Visual and audible
signals & relay
output
≥85dB
10A 250V AC
5A 100V DC
125mm*60mm*50m
m
IP20
2 years
