SPECTRA DRIVE
INSTALLATION INSTRUCTIONS
PLEASE ENSURE YOU HAVE READ THE FOLLOWING INSTRUCTIONS THOROUGHLY AND CAN
UNDERTAKE THE REQUIRED ACTIONS BEFORE COMMENCING INSTALLATION.
IF YOU HAVE ANY QUERIES, PLEASE CONSULT OUR TECHNICAL SUPPORT DEPARTMENT BEFORE
PROCEEDING.
012986

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SPECTRA DRIVE and is the answer not in the manual?

Questions and answers

Summary of Contents for VERTICALLY URBAN SPECTRA DRIVE

  • Page 1 SPECTRA DRIVE INSTALLATION INSTRUCTIONS PLEASE ENSURE YOU HAVE READ THE FOLLOWING INSTRUCTIONS THOROUGHLY AND CAN UNDERTAKE THE REQUIRED ACTIONS BEFORE COMMENCING INSTALLATION. IF YOU HAVE ANY QUERIES, PLEASE CONSULT OUR TECHNICAL SUPPORT DEPARTMENT BEFORE PROCEEDING. 012986...
  • Page 2: Table Of Contents

    Addressing Drivers with RDM for PWM Output ................7 Modbus Setup ............................9 Web Interface ........................... 10 Terminating Drivers .......................... 11 Cautions: ............................... 12 Scope This manual will detail the installation and use of a VU SPECTRA DRIVE Driver Revision History Date Comment Author 16/06/19...
  • Page 3: Overview

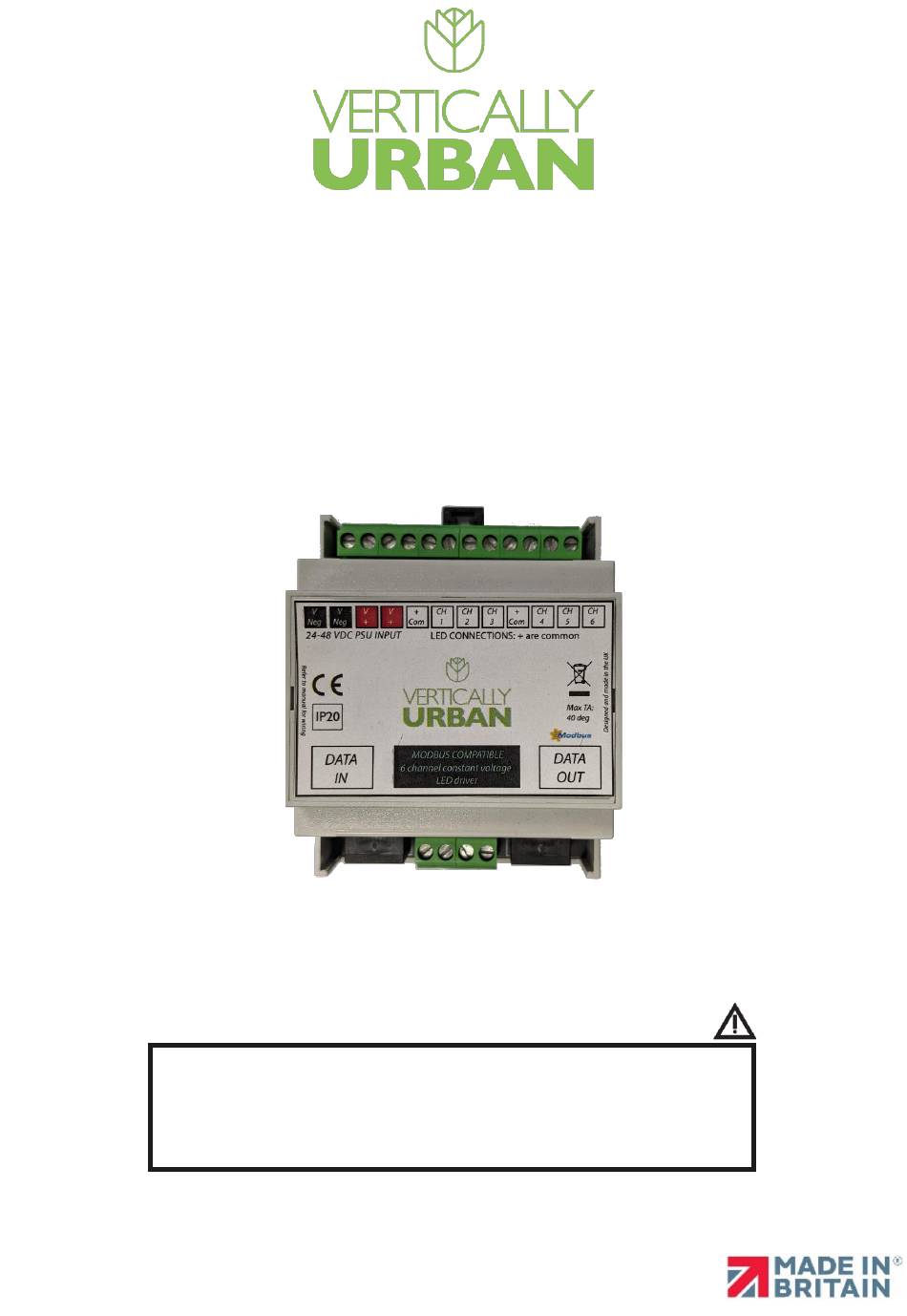

    On-Site Manual Overview The VU SPECTRA DRIVE is a 24-48VDC Din-rail mounted LED Driver; it can be used to provide PWM control. Installation is covered below. Figure 1 24-48VDC Input/Link Through PWM Channels One to Three PWM Channels Four to Six...
  • Page 4 On-Site Manual Housing: DIN-Rail Case Material: UL94-V0 PC Overall Dimensions: 90mm (H) x 106mm (W) x 58mm (D) Weight: 0.14kg Mounting: 35mm DIN Rail Country of Manufacture: United Kingdom Operating Temperature: 0°C to 40°C Storage Temperature: -10°C to +50°C Operating Relative Humidity (max): 80% non-Condensing IP Rating: IP20 Indoor Use Only Page 4 of 12 Page 4 of 12...
  • Page 5: Installation Instructions

    Also, pay attention to how the Driver is wired. If you require any further guidance, please contact Vertically Urban. Powering the VU SPECTRA DRIVE Connect the VU SPECTRA DRIVE to a suitable Power Supply using the terminals marked below (Figure 1). The Power Supply is dependent on the load (See Table 2). Figure 1...
  • Page 6: Installing Vu-Horti-Blade-4Ch

    On-Site Manual Installing VU-HORTI-BLADE-4CH: The VU SPECTRA DRIVE has six PWM channels that can be controlled; they are rated to a maximum of 6A per channel but only under certain load conditions (refer to Table 1 for loading). To install a VU-HORTI-BLADE-4CH with the VU-PORWERDRIVE using the six-way starter cable (P/N: 013153) connect to the VU-PORWERDRIVE following the table below.
  • Page 7: Dmx Setup

    Swisson XMT-350. Addressing should be done individually and not when the Drivers are connected together. Power the VU SPECTRA DRIVE and connect the Swisson XMT-350 to the DMX IN. Using the arrows navigate to the RDM menu option and select it.
  • Page 8 On-Site Manual The Hybrid Drive 6 should be discovered. Select the DMX START ADDRESS option. Set the Desired DMX Start address for that Driver and confirm to save. NOTE: Each Driver has six PWM channels which correspond to six following DMX addresses assigned to that Driver.
  • Page 9: Modbus Setup

    Remove the top cover of the Driver and press the button indicated below with the red arrow on the PCB. After the button has been pressed, the VU Spectra Drive will create a Wi- Fi Access Point. The SSID will be PowerDrive_********. Where * is random characters.
  • Page 10: Web Interface

    The first Holding Register Baud Rate The Baud rate of the Master Slave ID Slave ID of the VU Spectra Drive The quantity of Holding Registers. Each channel is represented by one Holding Register. The Number Of Holding Registers value of the holding register is value from 0 to 255 with 0 being off and 255 representing 100% Brightness.
  • Page 11: Terminating Drivers

    On-Site Manual Terminating Drivers After the VU SPECTRA DRIVE has been addressed, they can be wired as required and connected to a Modbus RTU or DMX data source via the RJ45 port marked Data In. The signal can then be passed through the VU SPECTRA DRIVE by chaining drivers together sequentially via the Data IN/OUT ports as shown below up to a maximum of 31 Drivers.
  • Page 12: Cautions

    On-Site Manual Cautions PLEASE TAKE NOTE OF LUMINAIRE AND DRIVER INGRESS PROTECTION RATING WHEN DECIDING LOCATION MAKE SURE ALL CONNECTIONS MADE ARE TIGHT WITH NO LOOSE STRANDS AND WITH AN APPROPRIATE IP RATING. DO NOT HOTPLUG. ISOLATE ALL POWER BEFORE ADDING OR REMOVING FITTINGS. DO NOT REVERSE POLARITY.
