BELTTT BEU350L Manual

Product detail parameters
M O D E L BEU350L BEU500L BEU600L
350W 500W 600W
Rated Power
Peak Power 700W 1000W 1200W
Output
Frequency
50Hz / 60Hz(Optional)
WaveForm
Modified Sine Wave
Battery
12V
Voltage
Voltage
10-15V
Range
Input
No load
0.4A 0.4A 0.4A
Current
Efficiency
≥90%
Low Voltage Alarm 10.5V±0.5V
Battery low
9.5V±0.5V
Battery
voltage protection
input
Battery high
protection
15.5V±0.5V
voltage protection
Other
High temperature protection、Shortcircuit Protection、Overload Protection
protection
Charging mode
The three - phase charging method (constant current, constant voltage, floating charge
Charge protection
High temperature protection、Shortcircuit Protection、Overload Protection、Reverse protection
Conversions time ≤20mS
USB YES
Cooling mode Smart fan, Automatic startup of high temperature and load
Product size ( mm) 242*95*54 203*140*64 248*140*64 248*140*64 248*140*64
Net weight ( Kg)
800 1080 1350
M O D E L BEU1200L BEU1500L BEU2000L
Rated Power 1200W 1500W 2000W
Peak Power 2400W 3000W 4000W
Output
Frequency 50Hz / 60Hz(Optional)
WaveForm
Modified Sine Wave
Battery
12V / 24 V(Optional)
Voltage
Voltage
10-15V(12 V ) / 20V - 30V ( 24V )
Range
Input
No load
0.3A(12V) 0.3A(12V) 0.3A(12V)
Current 0.2A(24V) 0.2A(24V) 0.2A(24V)
Efficiency ≥90%
Low Voltage Alarm 10.5V±0.5V(12V) / 20V±1V(24V)
Battery low
9.5V±0.5V(12V) / 19V±1V(24V)
Battery
voltage protection
input
Battery high
protection
15.5V±0.5V(12V) / 30V±1V(24V)
voltage protection
Other
High temperature protection、Shortcircuit Protection、Overload Protection
protection
Charging mode The three - phase charging method (constant current, constant voltage, floating charge
Charge protection High temperature protection、Shortcircuit Protection、Overload Protection、Reverse protection
Conversions time ≤20mS
USB YES
Smart fan, Automatic startup of high temperature and load
Cooling mode
Product size ( mm)
333*150*107 333*150*107 384*180*142 454*180*142 600*180*163
Net weight ( Kg) 2600 2600 4400
Remarks：Please select the corresponding parameters according to the
This series of Modified sine wave UPS inverter is suitable for :
Various kinds of household appliances, lighting electricity, IT electronics products, office
equipment, Power tools, on-board appliances, outdoor emergency power supply, etc. The
power of the electrical equipment exceeds the output power of the inverter and some
start-up current of large power equipment may not be driven.
BEU800L BEU1000L
800W 1000W
WARNING
1600W 2000W
Inammable gas
●When connected to a battery, sparks are produced. Make sure there is no ammable
gas before connecting.
●The battery will produce ammable gas when charging and discharging. It should be
well ventilated and should not be stored in other places where it is ammable
0.3A 0.3A No parallel with city power
The output can not be paralleled with the power supply, it will damage the inverter and
cause the danger of electric shock。
Minors are prohibited from using them
Can not be used by minors, inverter output is high voltage, may lead to electric shock
risk。
No disassembly or assembly
Do not disassemble or modify the inverter without permission. Unauthorized removal
or modication of the inverter may result in a safety accident such as a malfunction,
re or electric shock。
Bar contacts are prohibited
Do not place bars or other metal objects at the opening or socket of the inverter. This
may touch the internal parts and cause electric shock and inverter damage
Wet hands, do not touch
Do not touch the body and plug with wet hands, which may cause electric shock and
personal safety
Keep away from re and high temperatures
1400 1400
Fire and explosion can occur in inverter and battery when running in ame and high
temperature region。
BEU3000L BEU5000L
No throwing
3000W 5000W Bumping the inverter can cause damage and other safety hazards.
6000W 10000W
Medical equipment disabled
This inverter has not been tested and can not be used in medical equipment
Please connect the ground wire.
In order to ensure the safety of use, please connect the ground wire.
0.3A(12V) 1A(12V)
0.2A(24V) 0.5A(24V)
Moisture proof and waterproof
Please pay attention to moisture proof and waterproof. The inverter
may cause short circuit, re and electric shock due to humidity or water
inow。
Please insert completely
Please insert the load device plug into the inverter socket completely. If
the plug is fully inserted at the end, it may lead to electric shock and
overheating, and even cause a re accident. Do not use damaged plugs,
power outlets, electrical wires。
Product characteristics
●Our company's pure sine wave series inverter has perfect protection circuit, provide high
temperature protection, overpressure protection, low voltage protection, short circuit
protection, overload protection and other functions to prevent damage to your inverter;
●Advanced circuit design, high conversion efficiency, rich interface, stable output voltage;
●The inverter is made of metal shell, which has reasonable design and good heat dissipation
performance;
5300 7920
●The inverter has advanced anti-jamming technology, fully functional protection circuit, soft
start circuit and convenient operation mode.
●The soft start circuit increases the output voltage step by step at startup in order to eliminate
cold start failure, and also has the instantaneous drop of the output voltage and the quick
recovery function, which reduces load on startup instantly overload.
●The three - phase charging method (constant current, constant voltage, floating charge)is
used to provide the mains supply input overload and over voltage and lightning protection
function.
To avoid harm to you and others, here are
some of the following security considerations.
Be sure to follow the meanings of the various
flags. See the following.

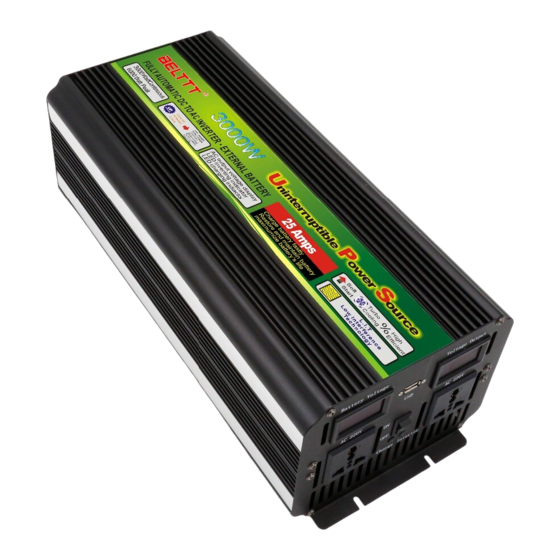

Power Inverter
Solar Power Generation System
BEU350L / BEU500L / BEU600L
BEU800L / BEU1000L / BEU1200L
BEU1500L / BEU2000L
BEU3000L / BEU5000L
Modified Sine Wave
UPS Inverter Manual
To ensure reliable ser vice, the inverter must be used properly.
Please read the instruction manual before use. Par ticular
attention should be paid to the warning and attention of this
brochure. Caution for certain conditions and practices that may
cause damage to the inverter. Make clear warning statements
about certain conditions and practices that may cause bodily
harm. Please read all instructions before using the inverter.
Please read this instruction manual carefully so that it can be
used correctly. Remember to read the "safety precautions"
section before you use it to make sure it's safe to use. After
reading the instructions, please complete the warranty card for
safekeeping, to keep on for reference.
