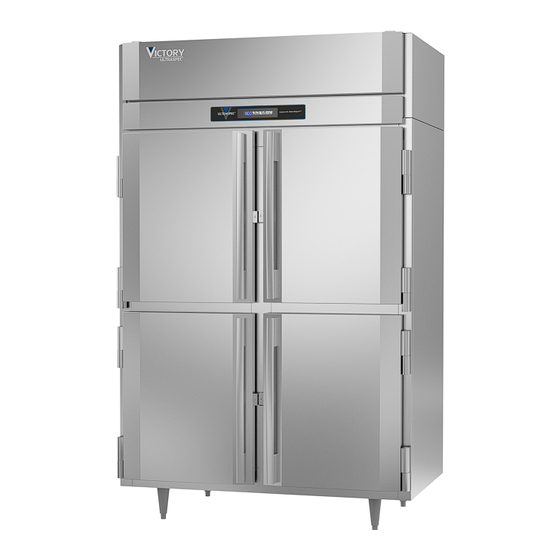

- Page 1 INSTALLATION AND OPERATING INSTRUCTIONS for all HS, and HIS Warming Cabinets 809-195A Rev. 01/30/2023 SEE BACK COVER FOR 3779 CHAMPION BLVD, WINSTON-SALEM, NC 27105 WARRANTY REGISTRATION Phone: (888) 845-9800 | Fax: (800) 253-5168 | Web: victoryrefrigeration.com...
-
Page 2: Table Of Contents
From the earliest stages of production design, to focused steps in fabrication and assembly, rigid standards of We thank you for your choice and confidence in Victory quality are maintained by our staff of skilled employees. Equipment. -
Page 3: Safety
User Manual for HS and HIS Warming Cabinets Victory SAFETY This appliance has been designed with your safety in mind. It has many features to keep you from being harmed. However, safe operation and maintenance are your responsibilities. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. - Page 4 User Manual for HS and HIS Warming Cabinets Victory SAFETY CAUTION: If it is necessary to move the Cabinet after removal from the skid, remove all CAUTION doors and carefully push the unit at a point of no more than 36” from the bottom to avoid damage.
-
Page 5: Important Information
User Manual for HS and HIS Warming Cabinets Victory IMPORTANT INFORMATION This unit is intended to be used in a commercial The manufacturer has designed and produced this application. That includes bars and restaurants. machine with the finest in materials. The manufacturer... -
Page 6: Product Information
All models are 208-240 volts, 60 Hz AC. • ALWAYS REFERENCE YOUR EQUIPMENT DATA PLATE AMPS, FOR THE MOST UP TO DATE AND ACCURATE VALUES. • HS models have stainless steel interiors, HSA models have aluminum interiors Victory Rev. 01/23... -
Page 7: Clearance And Placement
GENERAL PARTS User Manual for HS and HIS Warming Cabinets Victory CLEARANCE AND PLACEMENT 12" MINIMUM CLEARANCE REQUIRED 0" 0" LEFT/RIGHT REAR MINIMUM MINIMUM CLEARANCE CLEARANCE 0" BOTTOM MINIMUM CLEARANCE Placement Consider the following when selecting a location for your Cabinet: Clearance: •... -
Page 8: Unpacking And Set Up
User Manual for HS and HIS Warming Cabinets Victory UNPACKING AND SET UP Carefully inspect the shipping carton for damage. This is the only time that shipping damage may be claimed. If damage is suspected, open the carton immediately and, if there is damage, retain the carton and contact the shipper to make a claim. -
Page 9: Shelf Installation
User Manual for HS and HIS Warming Cabinets Victory SHELF INSTALLATION 1. Determine the proper location for the shelf clips. 6. Place shelves so that the retaining tab on the clip The reference numbers on the pilaster can serve as a captures the shelf as shown. -
Page 10: Electrical
User Manual for HS and HIS Warming Cabinets Victory ELECTRICAL This is a cord-connected unit, and must be connected to the machine to confirm the voltage and per the dataplate its own dedicated power supply. Check the dataplate on use the correct fuses or circuit breakers. -
Page 11: Preheating & Food Storage
User Manual for HS and HIS Warming Cabinets Victory PREHEATING & FOOD STORAGE Food should not be placed in a cold warming cabinet. To Some food, such as breaded meats, fish, etc., when kept at preheat the warming cabinet, turn it on one (1) hour before proper temperature, requires less degree of moisture in the it will be needed. -
Page 12: Recommended Food Storage Periods
User Manual for HS and HIS Warming Cabinets Victory RECOMMENDED FOOD STORAGE PERIODS Product Longest Time Kept Average Time Kept Approximate Temp. °F *Crispy or Dry Foods Baked Potatoes 2 hours 30 minutes 170 -180 Corn Stick 2 hours 1 hour... -
Page 13: Using The Unit
Eliwell User Manual for VEHSA Warming Cabinets Victory User Manual for HS and HIS Warming Cabinets Victory USING THE UNIT USING THE UNIT USING THE UNIT Operation is simple, just keep it connected to the The temperature was set at the factory at 160 º... -
Page 14: Sequence Of Operations - Eliwell Controller
Eliwell User Manual for HS and HIS Warming Cabinets Victory SEQUENCE OF OPERATIONS – ELIWELL CONTROLLER SEQUENCE OF OPERATIONS - ELIWELL CONTROLLER The warmer operates based on the air temperature measured by the probe located at the return air. CONTROLLER... - Page 15 Eliwell User Manual for HS and HIS Warming Cabinets Victory Electronic Controller Controller Symbols Reduced SET / Economy Permanently on: Energy Saving Mode Permanently on: Aux Active Flashing: Reduced Set Mode Flashing: Deep Cooling Cycle Active Quick Flashing: Access to level 2 parameters...
- Page 16 Alarms are always indicated by the buzzer (if present) and the alarm icon. To switch off the buzzer, press and Beverage-Air User Manual for HS and HIS Warming Cabinets Victory release any key, the relative icon will continue to flash.
-
Page 17: Sequence Of Operations - Danfoss Controller
User Manual for HS and HIS Warming Cabinets Victory User Manual for VEHSA Warming Cabinets Victory SEQUENCE OF OPERATIONS - DANFOSS CONTROLLER SEQUENCE OF OPERATIONS - DANFOSS CONTROLLER CONTROLLER CONTROLLER COMPONENT OPERATION OPERATION ACTION ACTION HEATER BLOWER LIGHT Condition Cabinet Temp > Set point + 2 ON or OFF Cabinet Temperature <= Set point - 2... - Page 18 Danfoss User Manual for HS and HIS Warming Cabinets Victory Electronic Controller UP DEFROST (ESC) DEFROST NOT ACTIVE ON THESE MODELS DOWN SELECT (OK) Control Panel Display Defrost LED (NOT ACTIVE) Alarm LED On fixed: ALARM Present Symbol will illuminate during start up, Flashing: ALARM Silenced...
- Page 19 Danfoss User Manual for VEHSA Warming Cabinets Victory User Manual for HS and HIS Warming Cabinets Victory Control Panel Connections Changing the Setpoint Electronic Controller Alarms The alarm condition is always signaled by the alarm icon . To turn off the relative icon will continue ...
- Page 20 Danfoss Danfoss User Manual for VEHSA Warming Cabinets Victory User Manual for HS and HIS Warming Cabinets Victory Electronic Controller Alarms Electronic Controller Alarms The alarm condition is always signaled by the alarm icon . Press any button to silence the alarm, the ...
-
Page 21: Cleaning And Maintenance
User Manual for HS and HIS Warming Cabinets Victory CLEANING AND MAINTENANCE Cleaning Schedule: Cabinet Gaskets Routine maintenance Daily wipe down Daily inspection, check Annually that hinges are tight to Weekly interior the cabinet. Daily Exterior Cleaning It is much easier to clean on a regular basis than to have 3. -
Page 22: Methods For Cleaning Stainless Steel
User Manual for HS and HIS Warming Cabinets Victory METHODS FOR CLEANING STAINLESS STEEL Cleaning Needed Cleaning Agent Method of Application Affect on Finish Satisfactory for use on all Areal 20, Lac-O-Nu, Lumin Wash Rub with cloth as directed finishes. -
Page 23: Help
User Manual for HS and HIS Warming Cabinets Victory HELP PROBLEM POSSIBLE CAUSE REMEDY Cabinet not operating Fuse blown or circuit breaker tripped Replace fuse or reset circuit breaker Power cord unplugged Plug in power cord to designated receptacle. Cabinet cannot share same outlet with other equipment. -
Page 24: Help Continued
User Manual for HS and HIS Warming Cabinets Victory HELP CONTINUED Product load burning Product load is too close to heating Rearrange product load so that it is not too close or boiling element to heating element(s). Controller setpoint is too high Adjust controller setpoint to a lower setting. -
Page 25: For The Service Tech - Wiring Diagram
User Manual for HS and HIS Warming Cabinets Victory FOR THE SERVICE TECH - WIRING DIAGRAM " 0 7 9 5 6 7 7 23 9ÿ ÿ 8 6 7 36 7 7 ÿ 24 127 7 6 1 24 127 "... -
Page 26: Limited Warranty
User Manual for HS and HIS Warming Cabinets Victory LIMITED WARRANTY THREE (3) YEAR PARTS AND LABOR WARRANTY (CF/ purchaser. CT MODELS CARRY ONE (1) YEAR PARTS AND LABOR Improper operation resulting from factors, including but not WARRANTY, SR/SF units CARRY TWO((2) YEAR PARTS... -
Page 27: Limited Warranty (Continued)
User Manual for HS and HIS Warming Cabinets Victory LIMITED WARRANTY (CONTINUED) STATUTORY, INCLUDING THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, WHICH ARE HERBY DISCLAIMED, ALL OTHER OBLIGATIONS OR LIABILITIES ON OUR PART, AND WE NEITHER ASSUME, NOR AUTHORIZE ANY OTHER... - Page 28 User Manual for HS and HIS Warming Cabinets Victory Warranty Registration Register your product online at victoryrefrigeration.com/parts-service or fill out and mail the form below. Cabinet Model Number: _____________________________________________ Date Of Installation: _________________ Cabinet Serial Number: _____________________________________________ Location Of Product...
