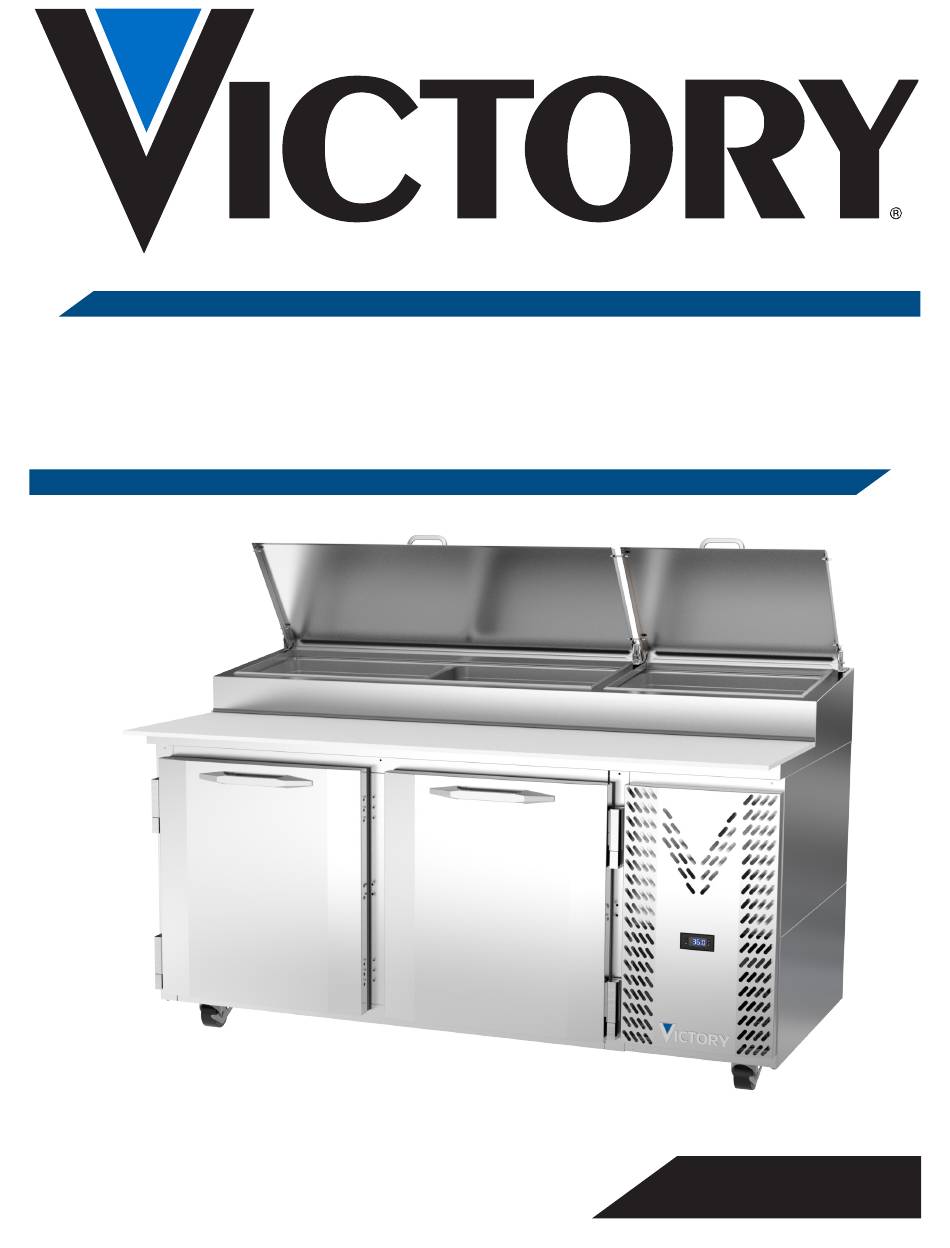

- Page 1 INSTALLATION AND OPERATING INSTRUCTIONS for all VPP and VPPD Models 809-152A Rev. 08/30/2022 SEE BACK COVER FOR 3779 CHAMPION BLVD, WINSTON-SALEM, NC 27105 WARRANTY REGISTRATION Phone: (888) 845-9800 | Fax: (800) 253-5168 | Web: victoryrefrigeration.com...
-
Page 2: Table Of Contents
User Manual for VPP & VPPD Victory WELCOME Thank you for purchasing a Victory cabinet. This series instructions before installing or using your unit. If you has passed our strict quality control inspection and meets have any questions, Please call our Technical Service the high standards set by Victory Refrigeration! You have Department at (800) 684-1199. -
Page 3: Safety
R290 equipment. • Clean a dirty condenser with a sharp object. • Use ONLY Victory factory service parts. Use of non • Store gasoline, kerosene or any other flammable OEM parts can be dangerous because of the design material near the cabinet. -
Page 4: Important Information
User Manual for VPP & VPPD Victory IMPORTANT INFORMATION This unit is intended to be used in a commercial application. That includes bars and restaurants. If installed in a residence some commercial service companies may not be able to service it on site. -
Page 5: Product Information
User Manual for VPP & VPPD Victory PRODUCT INFORMATION Refrigerant Type / Cabinet Dimensions Full Load Compressor Model Door Count Drawers Charge (g) / Charage w x d x h (Inches) Amps (oz) VPP46HC 46 1/8 x 36 7/8 x 53 1/8... -
Page 6: Clearance And Placement
User Manual for VPP & VPPD Victory CLEARANCE AND PLACEMENT Placement Consider the following when selecting a location for your cooler: • Clearance: 2 inches at back. None at sides. • Floor Load: the floor on which the cooler is located must be even and level, free from vibrations, and strong enough to support the combined weights of the unit and maximum product load. -
Page 7: Unpacking And Set Up
User Manual for VPP & VPPD Victory UNPACKING AND SET UP Carefully inspect the shipping carton for damage. This is the only time that shipping damage may be claimed. If damage is suspected, open the carton immediately and, if there is damage, retain the carton and contact the shipper to make a claim. Do NOT contact the manufacturer. -
Page 8: Shelf Installation
User Manual for VPP & VPPD Victory SHELF INSTALLATION 1. Determine the proper location for the shelf clips. 7. Confirm that the shelf is resting on ALL 4 clips and that the clips are securely attached to the pilasters. 2. Insert the top tab of the shelf clip into the desired hole of the pilaster. -
Page 9: Drawer Maintenance
User Manual for VPP & VPPD Victory DRAWER MAINTENANCE Drawer models are shipped with the drawers already installed in the cabinets. Drawers are designed with slides which have locking mechanisms to prevent drawers from coming off cabinets during normal opening and closing operations. -
Page 10: Electrical
User Manual for VPP & VPPD Victory ELECTRICAL This is a cord-connected unit, and must be connected to its own dedicated power supply. Check the dataplate on the machine to confirm the voltage and per the dataplate use the correct fuses or HACR circuit breakers. -
Page 11: Using The Unit - Danfoss Controller
User Manual for VPP & VPPD Victory USING THE UNIT - DANFOSS CONTROLLER Operation is simple, just keep it connected to the correct The refrigerator will automatically defrost as needed, power supply and the refrigerator will maintain the there is no set time for defrost. Push and immediately internal temperature it has been set to. -
Page 12: Sequence Of Operations Refrigerator
01 2 3 ÿ 56 7 8 6 9 ÿ 3 ÿ ÿ ÿ ÿ 2 2 3 6 2 3 User Manual for VPP & VPPD Victory SEQUENCE OF OPERATIONS REFRIGERATOR - DANFOSS CONTROLLER ! "... - Page 13 User Manual for VPP & VPPD Victory DEFROST (ESC) Electronic Controller SELECT (OK) DOWN Control Panel Display Note: Defrost is manual, LED indicator is inoperative. Defrost LED Alarm LED On fixed: Defrost active On fixed: ALARM Present Off: Defrost is off...
- Page 14 User Manual for VPP & VPPD Victory Control Panel Connections Changing the Set point Victory Rev. 08/22...
- Page 15 01 2 3 ÿ 56 7 8 6 9 ÿ 3 ÿ ÿ ÿ ÿ 2 2 3 6 2 3 User Manual for VPP & VPPD Victory ÿ ! "...
-
Page 16: Using The Unit - Eliwell Controller
01 2 3 ÿ 56 7 8 6 9 ÿ 3 ÿ ÿ ÿ ÿ 2 2 3 6 2 3 User Manual for VPP & VPPD Victory USING THE UNIT - ELIWELL CONTROLLER ! "... -
Page 17: Sequence Of Operations Refrigerator
User Manual for VPP & VPPD Victory SEQUENCE OF OPERATIONS - REFRIGERATOR - ELIWELL CONTROLLER Rev. 08/22 Victory... - Page 18 01 2 3 ÿ 56 786 9 ÿ 3 ÿ ÿ ÿ ÿ 2 2 3 6 2 3 User Manual for VPP & VPPD Victory ! " # $ %& ! Victory Rev.
- Page 19 01 2 3 ÿ 56 78 6 9 ÿ 3 ÿ ÿ ÿ ÿ 2 2 3 6 2 3 User Manual for VPP & VPPD Victory ÿ ! "...
-
Page 20: Cleaning And Maintenance
User Manual for VPP & VPPD Victory CLEANING AND MAINTENANCE Cleaning Schedule: Cabinet Condenser coil Gaskets Routine maintenance Daily wipe down Quarterly cleaning Daily inspection, check Annually that hinges are tight to Weekly interior the cabinet. Daily Exterior Cleaning It is much easier to clean on a regular basis than to have to remove stains once they have built up. -
Page 21: Condenser Cleaning
User Manual for VPP & VPPD Victory CONDENSER CLEANING Keeping the condenser coil clean is critical to efficient 3. Pull grille carefully out and off the cabinet. operation. 1. Unplug unit from power supply. Rotating fan blade can cause CAUTION personal injury. -
Page 22: Methods For Cleaning Stainless Steel
User Manual for VPP & VPPD Victory METHODS FOR CLEANING STAINLESS STEEL Cleaning Needed Cleaning Agent Method of Application Affect on Finish Satisfactory for use on all Areal 20, Lac-O-Nu, Lumin Wash Rub with cloth as directed finishes. Smears and fingerprints O’Cedar Cream Polish, Stainless... -
Page 23: Help
User Manual for VPP & VPPD Victory HELP Trouble Diagnosis for the User Malfunction Possible Cause Likely Solution Connect to proper voltage circuit Replace Unit not plugged in. fuse or reset breaker. No cooling - unit is silent Fuse or circuit breaker tripped. -
Page 24: For The Service Tech
User Manual for VPP & VPPD Victory FOR THE SERVICE TECH Refrigeration service should only be attempted by a trained trade professional certified to work on R290 systems. Here are some critical service items. Other Information: This list does not qualify anyone to service the unit. It is a Evacuation: It is critical that a refrigeration system be reminder and checklist for the service tech. -
Page 25: For The Service Tech - Wiring Diagram
User Manual for VPP & VPPD Victory FOR THE SERVICE TECH - WIRING DIAGRAM - DANFOSS CONTROLLER CNTRL *SEE CONTROLLER DETAIL COMPRESSOR DETAIL CONDENSER FAN START RELAY S.C. COMP R.C. *SEE CONTROLLER DETAIL *SEE CONTROLLER DETAIL EVAP FAN COMPRESSOR DETAIL FOR SOME... - Page 26 User Manual for VPP & VPPD Victory FOR THE SERVICE TECH - WIRING DIAGRAM - ELIWELL CONTROLLER Victory Rev. 08/22...
-
Page 27: Limited Warranty
Victory® Refrigeration (Victory) warrants to the original purchaser of Victory branded equipment, that Proof of purchase must be supplied to Victory to validate such equipment is free from defects in material and the warranty. This warranty is valid only if equipment is workmanship, under normal use, proper maintenance and properly installed, and started-up as outlined in the Owner’s... -
Page 28: Limited Warranty (Continued)
LIMITATION OF LIABILITY: that requires extra work, and/or travel, to gain access to the Victory or its affiliates shall not be liable for any indirect, unit for service is the sole responsibility of the equipment incidental, special or consequential damages, or losses of a purchaser. - Page 29 User Manual for VPP & VPPD Victory Warranty Registration Register your product online at Victory.com/parts-service or fill out and mail the form below. Cabinet Model Number: _____________________________________________ Date Of Installation: _________________ Cabinet Serial Number: _____________________________________________ Location Of Product Business Name: ____________________________________________________...
