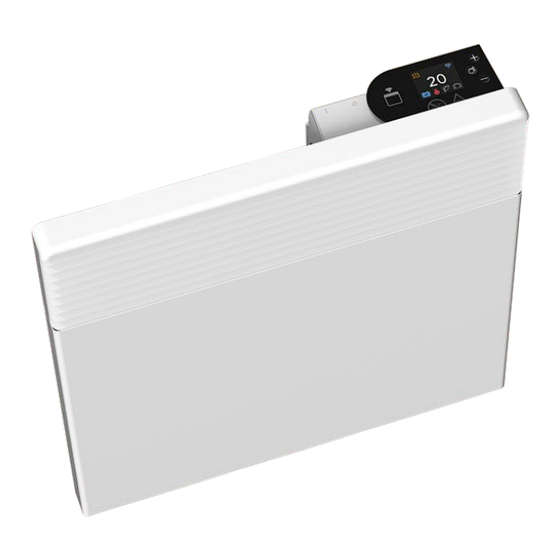

NOIROT SPOT PLUS PRO
Electric Convection Panel Heater
Model with Wi-Fi
Distributed by Olimpia Splendid Australia Pty Ltd.
Operating & Installation
Instructions
In Order To Qualify For Your Lifetime Warranty
Please Visit our Website and complete the Online Registration
Visit us at
www.olimpiasplendid.com.au
Advertisement
Related Manuals for Noirot SPOT PLUS PRO
Summary of Contents for Noirot SPOT PLUS PRO
- Page 1 NOIROT SPOT PLUS PRO Electric Convection Panel Heater Model with Wi-Fi Distributed by Olimpia Splendid Australia Pty Ltd. Operating & Installation Instructions In Order To Qualify For Your Lifetime Warranty Please Visit our Website and complete the Online Registration Visit us at...
-
Page 2: Table Of Contents
TABLE OF CONTENTS Page Safety……………………………………………….…………………..3 Installation………………………………………………….……………..5 Basic Controls……………………………………….…………………..9 Advanced Menu Overview……………………………………………….10 Maintenance…………………………………………….…………...…..11 Specifications………………………………………………..…………….11 Warning……………………………………………….…………….……...11 Warranty..……………………………………………..……………...…..12 APPLICATION DOWNLOAD AND WI-FI OPERATION Scan the QR Code below to access the latest owner’s manual. The manual contains instructions for downloading the WIFI application and controlling the heater via your smart device. -
Page 3: Safety
1. SAFETY Read the Installation and User Guide(*), especially the safety instructions below. WARNING - Certain parts of this product may become very hot and may cause burns. Pay extra attention to small children and vulnerable people when they are around the heater. This heater may be used by children aged 8 and over and by persons with reduced physical, sensory or mental capacity or without any experience or knowledge providing they are correctly supervised, or they have been given... - Page 4 1.1 SAFETY The power supply must be protected by a residual current device of at least 30 mA, especially when installed in a room with a bath or shower. If the power supply cable is damaged, it must be replaced by the manufacturer, its after-sales service or a person with similar qualifications in order to prevent any potential hazards.
-
Page 5: Installation
2. INSTALLATION RECOMMENDATION FOR WALL INSTALLATION This heater is sold ready for DIY installation, with wall bracket and flexible cord supplied. To remove the wall bracket from the heater you need to push down on the spring-loaded clips located at the top of the bracket. This can be done by using your fingers or, if preferred, a screwdriver (No: 1 Fig.1). - Page 6 2.1 INSTALLATION For maximum efficiency, this heater is to be wall mounted between a minimum height of 100mm and a maximum height of 150mm off the floor. This is to allow the necessary volume of air to flow freely through the vents. It is also important to allow a minimum of 100mm clearance at the top and sides of the heater and 500mm from the front (Fig.
- Page 7 2.2 INSTALLATION INSTRUCTIONS FOR MOUNTING CASTORS ON THE HEATER Please follow these instructions. 1. For maximum stability, space castors at 50mm from the edge of the base as shown 2. To lock castors into place, insert the black clips provided through the bottom of the castors into the base of the heater...
- Page 8 It is also common for the heater to emit vapour from the vents during this initial process and shouldn’t last for more than 2-3 minutes. If it should persist, switch the heater off and have it inspected. Noirot is distributed by Olimpia Splendid. For additional Support, please go to: www.olimpiasplendid.com.au...
-
Page 9: Basic Controls
3. BASIC CONTROLS ON | OFF SWITCH ADJUST TEMPERATURE OFF | ON HEAT ICON Lights when heating element is active Press the button to increase the Slide the switch located in the back temperature and the button to of the panel to the ‘1’ position. decrease the temperature. -
Page 10: Advanced Menu Overview
4. ADVANCED MENU OVERVIEW Press the icon for three seconds to access the advanced menu. Press scroll through menu options. WI-FI pairing Exit advanced menu Factory reset WI-FI SET UP ACCESS As part of WI-FI set up a code Press the hand button for Press the hand button again needs to be entered. -
Page 11: Maintenance
5. MAINTENANCE Your Noirot Electric Panel Heater requires very little maintenance. To remove surface dust use a soft cloth; to remove marks use a damp cloth. Never use abrasives or metal scourers which could damage the polyester coating. It is... -
Page 12: Warranty
2. You must also retain your receipt of purchase WARRANTY CONDITIONS Your Noirot Spot Plus electric panel heaters come with a LIFETIME WARRANTY, therefore any replacement of faulty parts or repairs of any kind must be carried out by a qualified person and authorised by Olimpia Splendid (AU/NZ) or their approved representative.
