INSTRUCTIONS

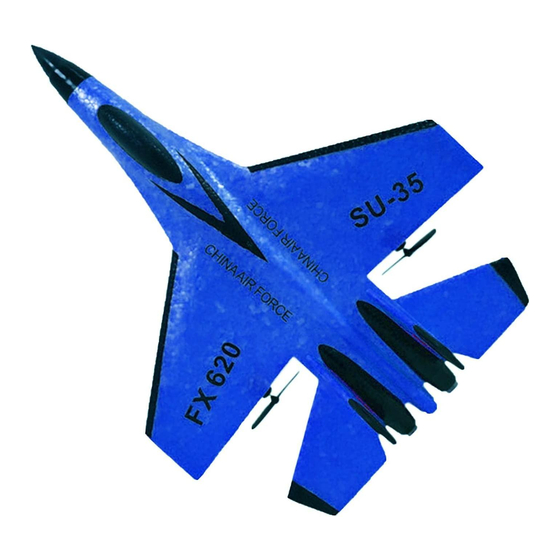

RC FIGHTER JET AIR JET
PACKAGE CONTENT
•
Jet
•
Remote controller
•
LED lights
•
Landing gear
•
Replacement propellers
•
Charging cable
TECHNICAL SPECIFICATIONS
•
Material: EPP foam, ABS
•
Airplane size: 8 × 24,8 × 34,2 cm
•
Battery: 3,7 V, 200 mAh rechargeable
•
Remote battery: 2 × 1,5 V AA (not included)
COMPONENTS
1. Front landing gear slot
2. Battery compartment
3. ON/OFF switch
4. LED light power connectors
5. Propellers
6. Rear landing gear slot
BEFORE THE FIRST FLIGHT
• Remove the battery from its compartment and
charge it with the included charging cable.
Connect the battery to the cable and connect the
cable to your computer or phone charger. The
red light is on while the battery is charging. When
the battery is fully charged, the light turns off.
• Insert the fully charged battery back into the
battery compartment and connect it to the plane
(using the connector inside the battery
compartment). Close the compartment cover.
• If you want to use the plane's landing gear, put it
into the corresponding landing gear slots. TIP: the
landing gear with only one wheel goes in the
front.
• Remove the battery compartment cover on the
controller and insert two AA batteries (not
included in the package). Mind the polarity. Once
the batteries are inserted, close the battery
compartment cover.
• To install the LED lights, remove the protective
strips on the lights and stick them to the plane
anywhere you want. Connect the power strips to
the LED light power connectors on the plane.
Refer to the components diagram for more info.
FLYING THE PLANE
• Turn ON the controller by pressing the round
button in the middle. A red light will turn on
indicating that the controller is turned ON. This
button is also used to turn OFF the controller.
• Then, turn ON the airplane by flipping the
ON/OFF switch on the bottom of the plane to the
ON position. A red light will come on when the
plane is ON and connected to the controller.
• The plane can start from the ground (if it has the
landing gear installed), or you can throw it.
