Summary of Contents for Haylou GT6

  • Page 1 Haylou GT6 真无线蓝牙耳机 使用说明书...
  • Page 2 产品介绍 LED灯 MFB键 充电触点 麦克风 Type-C 充电接口 LED灯...
  • Page 3 佩戴耳机 将耳机轻轻塞入耳道,调整耳机达到最佳佩戴状 态。 通话时,将耳机麦克风朝向嘴部可使通话更清 晰。...
  • Page 4 充电 首次开机使用,请先去除左右耳机充电触点处的 隔离膜,将充电盒及耳机充满电。 去除隔离膜 插入充电线可同时给耳机和充电盒充电。 充电盒未充满电充电指示灯红灯长亮,充满电后 充电指示灯熄灭。...
  • Page 5 开机 耳机在充电盒内,取出耳机自动开机。 耳机在充电盒外且关机状态下,长按MFB键约 1.5秒开机(白灯亮1秒)。 白灯亮1秒 长按约1.5秒 关机 放入充电盒中,耳机自动关机。 开机状态下,长按MFB键约4.5秒关机(红灯长亮2秒)。 红灯长亮2秒 长按约4.5秒...
  • Page 6 开始使用 自动连接:同时将两只耳机从充电盒取出, 在5秒 内耳机开机串联,待双耳白灯慢闪时,打开设备 蓝牙搜索“Haylou GT6”并点击完成连接。 如果连接失败,将耳机放回充电盒,重复上述操 作。首次连接后,耳机开机可自动回连上一次配 对设备(蓝牙需开启)。 10:00 蓝牙 开启蓝牙 开启检测 已开启, 允许周围设备检测到 设备名称 可用设备 Haylou GT6 单耳/双耳自由切换:两只耳机连接成功后即为 双耳连接;将任一耳机放回充电盒关机,另一只 耳机进入单耳模式,重新取出即可自动恢复双耳 模式。 手动连接:在耳机关机时,手动打开两只耳机, 在5秒内耳机开机串联,待双耳机白灯慢闪时, 打开设备蓝牙进行连接。...
  • Page 7 功能说明 短按MFB键 音乐时,播放/暂停 双击右耳MFB键 音乐时,切换下一曲 双击左耳MFB键 游戏时,开启/关闭低延迟模式 短按MFB键 来电时,接听/挂断电话 三击MFB键 待机时,唤醒语音助手 接听第二个来电 手机通话中有新的来电时,单击MFB键可保持上 一个通话,接听第二个来电,再双击MFB键可切换 回第一个通话,保留第二个通话。三方通话中, 单击MFB键,挂断当前通话。...
  • Page 8 耳机重置 1、耳机在充电盒内充电中(常亮红灯或满电亮 白灯1分钟内); 2、同时长按左右耳机触摸键约10S,直到红白灯 3次交替闪烁后松手; 3、耳机从充电盒内取出,直到双耳白灯慢闪; 4、清除手机配对记录,按配对步骤,重新完成 蓝牙连接即可; * 若操作不成功,请重复以上步骤;或登录官方 旗舰店,联系客服,查看复位操作视频。 耳机一边有声一边无声 极端情况才会出现此类情况,发生后请参考以下 操作步骤: 1、将耳机放回充电盒内,重新取出连接使用。 2、参考耳机重置步骤,重新连接蓝牙设备。 充电时遇到的其他情况 1、耳机充满电后,白灯长亮1分钟后熄灭,此时 耳机处于满电状态。 2、充电盒没电时,耳机无法充电且保持原来的 连接状态。 3、充电盒充满电后,充电指示灯会熄灭。...
  • Page 9 包装内容物 耳机,充电盒,说明书。 耳机基本参数 通讯距离:10米(无障碍空旷环境) 电池容量:35mAh(单耳机) 充电时间:约1.5小时 通话时间:约4小时 待机时间:约60小时 输入参数:5V 100mA 电池类型:锂离子聚合物电池 无线连接:蓝牙5.2 充电盒基本参数 输入参数:5V 500mA 输出参数:5V 150mA 充电时间:约2小时 电池容量:310mAh 电池类型:锂离子聚合物 日常维护 请勿佩戴耳机洗澡,淋雨,放入洗衣机及在异常 温度情况等极端环境使用,每次正常使用后,请 用干布等工具擦干耳机上的汗汁或者雨水,可以 有效延长耳机的使用时长。...
  • Page 10 注意事项 警告 1、请勿以任何理由拆开、维修或改装耳机, 否则可能会导致起火甚至彻底损坏本产品。 2、请勿将设备置于温度过低或过高(0℃以下 或45℃以上)的环境下。 3、使用产品指示灯时,请避开儿童或动物的 眼睛。 4、请勿在雷暴天气下使用本产品,雷暴可导 致设备工作异常,并增加触电的危险。 5、请勿使用酒精或其他挥发性液体擦拭本产 品。 6、请勿将本产品与液体接触。 注意 1、使用产品前请仔细阅读本使用说明书并请妥 善保管。 2、首次使用时,请先将本产品充满电。 3、如果产品长期(超过2个星期)不用,请对其充 电。 4、必须选择正规厂家生产且经过国家CCC认证 的充电器。 5、长时间连续使用耳机有损听力,请合理控制 使用时间及音量。 6、使用耳机会降低对外界声音的感知力,请不 要在可能威胁到安全的环境中使用耳机。...
  • Page 11 产品中有害物质的名称及含量 有害物质 部件名称 铅 汞 镉 六价铬 多溴联苯 多溴二苯醚 (Pb) ( Hg) ( Cd) (Cr(VI)) (PBB) (PBDE) 耳机主体 电 池 耳 帽 充 电 盒 本表格依据SJ/T 11364的规定编制。 O:表示该有害物质在该部件所有均质材料中的 含量均在GB/T 26572规定的限量要求以下。 X:表示该有害物质至少在该部件的某一均质材 料中的含量超出GB/T 26572规定的限量要求。...
  • Page 12 Haylou蓝牙耳机售后服务 Haylou蓝牙耳机售后服务承诺:严格按照《中华人 民共和国消费者权益保护法》、《中华人民共和 国产品质量法》实行售后三包服务,服务内容如 下:在三包有效期内,您可凭购物凭证依照本规 定享受免费的修理、更换、退货的权利。 1、自您购买之日起7日内,本产品出现故障, 经由Haylou售后服务中心确定为产品质量问 题,可享受修理、更换、退货的服务。 2、自您购买之日15日内,本产品出现故障, 经由Haylou售后服务中心确定为产品质量问 题,可享受修理或更换的服务。 3、自您购买之日起12个月内,本产品出现故障, 经由Haylou售后服务中心确定为产品质量 问题,可享受修理的服务。 三包凭证 产品型号 购买日期 用户姓名 邮政编码 用户信息 联系电话 用户地址 销售单位 购买信息 订单编号...
  • Page 13 Haylou GT6 性能故障表 名称 性能故障 1. 使用过程中听不到声音。 蓝牙耳机 2. 通话过程中,对方听不到声音。 3. 无法充电。 非保修条例 1、使用造成的正常磨损脏污如:刮痕、颜色 改变;因接触化学试剂、接触尖锐物体、 掉落挤压等人为导致损坏。 2、未经授权的维修、误用、碰撞、疏忽、滥用、 进液、事故、改动、不正确的使用非本产品 配件或撕毁、涂改标贴、防伪标记。 3、已超过三包有效期。 4、因不可抗力造成的损坏。 5、不符合《性能故障表》 所列性能故障的情况。 6、因人为原因导致本产品及其配件产生 《产品 性能故障表》所列性能故障。 说明书中的产品、配件、用户界面等插图均为示 意图,仅供参考。由于产品的更新和升级,产品 实物与示意图可能略有差异,请以实物为准。...
  • Page 14 售后服务与支持 保修期: 自产品购买之日起12个月(请妥善保管购买凭证) 免费服务: 在产品保修期内,凡属产品本身质量引起的故障, 请用户凭购买凭证与经销商取得联系以享受售后 服务。 如有任何产品损害或瑕疵非可归责于产品质量本 身,则不在保修范围内。有下列情形者不属于保 修范围内: 1、因天灾、地震、雷击、异常电压、环境因素 而发生之故障或毁损的。 2、自行或委托未经原厂授权维修之厂商拆卸、 改装或更换非原厂零件。 3、未按使用手册操作或因人为使用不当而造成 损坏者,如产品浸水、腐蚀、掉落、挤压或 露在异常温湿度环境下。 若有售后服务需求,请联系Haylou客服 制造商:东莞市猎声电子科技有限公司 制造商地址:广东省东莞市南城街道宏 图路86号1栋 401-410室 网 址:www.haylou.com 客服电话:4008-555-083 Haylou微信公众号...
  • Page 15 Haylou GT6 True Wireless Earbuds User Manual...

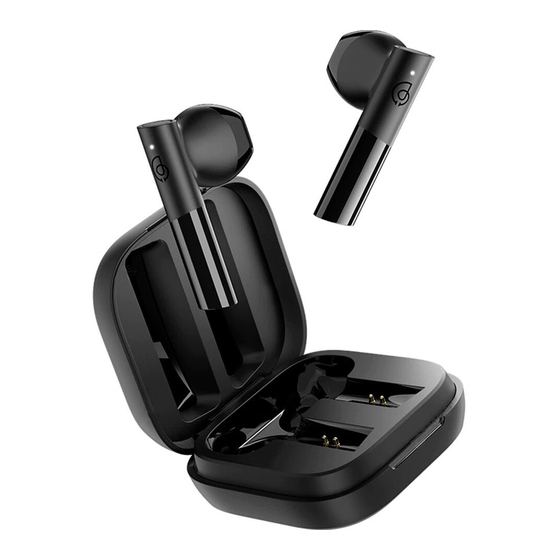

  • Page 16 Overview Charging contacts Type-C charging port...
  • Page 17 How to Wear Gently insert the earbud into the ear canal, adjust the earbud to the most comfortable wearing state. When calling, adjust Mic towards mouth to gain better talking experience.
  • Page 18 How to Charge For first time use, please remove the isolation film on the charging contacts of both earbduds. Then fully charge the charging case and earbuds. Remove isolation film Plug in the charging cable to charge the earbuds and the charging case at the same time. The charging indicator light will be solid red when the charging case is not fully charged.
  • Page 19 Power-on 1. When the earbuds are in the case, take them out to auto power on. 2. If earbuds are out of case and in power-off state, keep touching the MFB button for about 1.5s to power on. LED glows white for 1s Keep touching for about 1.5s Power-off...
  • Page 20 5s. When lights on both earbuds flash white slowly, open device Bluetooth and search "Haylou GT6", finally click it to complete the connection. Put the earbuds back to the charging case and repeat the above operation if the connection fails.
  • Page 21 Switch between mono and stereo mode: It is stereo mode after two earbuds are successfully connected. Put one back into the case to power off, the other will enter mono mode. Or pick it up again to resume stereo mode. Manual connection: When earbuds are turned off, manually turn on the two earbuds.
  • Page 22 Functions Short press MFB button Play/Pause music Double click right MFB button Skip track forward Double click left MFB button Turn on/off low latency mode when playing games Short press MFB button Answer/End call Triple click MFB button Summon voice assistant when standby Answer the Second Call When there is a new incoming call during a call, click the MFB button to keep the first call and answer the...
  • Page 23 Factory Setting 1. The earbuds are charging in the charging case (light glows solid red or white after fully charged within 1 minute). 2. Long press the two earbuds simultaneously for about 10s, release after LED alternately flashes red and white 3 times. 3.
  • Page 24 Package List Earbuds, charging case, user manual. Basic Parameters(earbuds) Operation range: 10m (open space with no obstacle) Battery capacity: 35mAh(single earbud) Charging time: approx. 1.5h Talk time: approx. 4h Standby time: approx. 60h Input parameter: 5V 100mA Battery type: li-ion Bluetooth version: V5.2 Basic Parameters(charging case) Input parameter: 5V...
  • Page 25 Caveats Warning 1. Do not disassemble, repair or modify the product for any reason, as this may cause fire or even completely destroy the product. 2. Do not expose the product to environments where the temperature is too low or too high (below 0°C or above 45°C).
  • Page 26 4. Please use certificated charger. 5. Do not wear earphones for a long term to protect your hearing. 6. Do not wear earphones in any situations with potential risks as wearing them may reduce your perception to the outside world. FCC Requirement Changes or modifications not expressly approved by the party responsible for...
  • Page 27 Warranty Card Warranty Period 12 months after you purchase this item. ( or you may inquire your local shopper for more details.) Free Service Supposing any defects caused by quality issues occur within the warranty period, please take this warranty card and purchase receipts to your distributor for free exchange service.
  • Page 28 2. Defects or physical damages caused by leaking or dropping off. 3. Damages by act of God. Supposing your item is within any damages or defects except the above circumstances, please return to us or your distributor for free repairing. Manufacturer: Dongguan Liesheng Electronic Co., Ltd.
