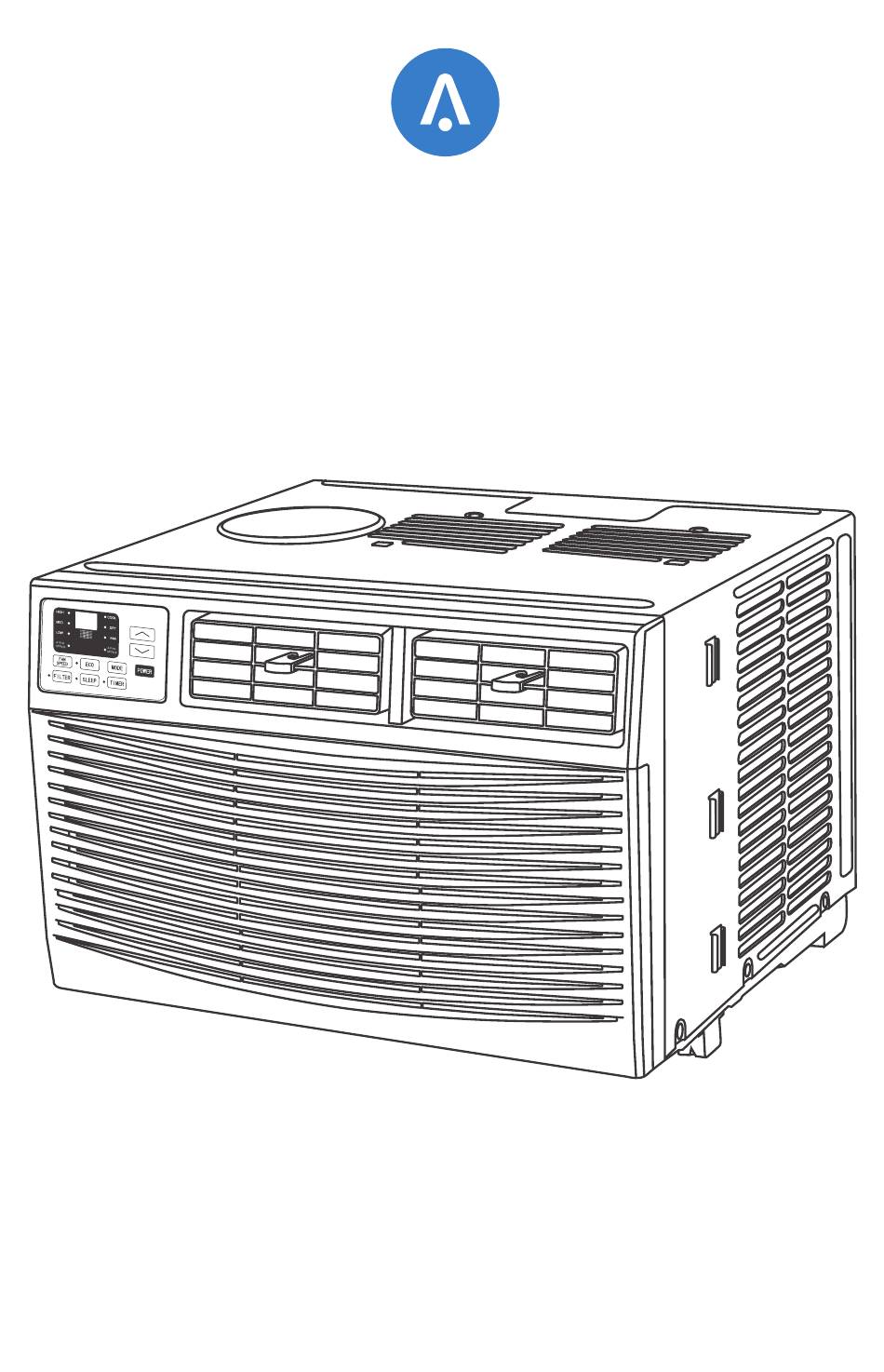

- Page 1 Window Air Conditioner CW2 USER MANUAL Thank you for purchasing Acekool Window Air Conditioner. Before operating this unit, please read these instructions completely and keep the manual ready for further reference.
-
Page 2: Table Of Contents
Your home in sync CONTENTS Important Safety Instructions Electrical Requirements Packing List Installation & Assembly Instructions Using Your Air Conditioner Care and Cleaning Troubleshooting... -
Page 3: Important Safety Instructions
Your home in sync Important Safety Instructions Before installing and using your air conditioner, please read this owner's manual carefully. Store thismanual in a safe place for future reference. Your safety and the safety of others is very important to us. Please pay attention to all safety messages outlined in this user manual. - Page 4 Your home in sync Room area requests for air conditioner with Refrigerant R32 Refrigerant Capacity(Btu) Room Area ≤9K Above 4m² ≤12K Above 4m² ≤18K Above 15m² ≤24K Above 25m² Warning Please read the manual before installation, using, maintenance. Do not use means to accelerate the defrosting process or to clean, other than those recommended by the manufacturer.
-
Page 5: Electrical Requirements
Your home in sync Electrical Requirements Warning Electrical Shock Hazard Plug into a grounded 3 prong outlet. Do not remove the ground prong. Do not use an adapter. Do not use an extension cord. Failure to follow these instructions can result in death, fire, or electrical shock. - Page 6 Your home in sync LCDI Power Cord and Plug This air conditioner is equipped with an LCDI (Leakage Current Detection and Interrup- tion) power cord that is requiredby UL. This power supply cord contains state-of-the-art electronics that sense leakage current. If the cord is damaged and leakage occurs, power will be disconnected from the unit.
-
Page 7: Packing List
Your home in sync Packing List SMART POWER COOL SLEEP SPEED TIMER DISPLAY AUTO MODE ONLY Window Air Conditioner *1 Remote Control *1 Filler Panels *2 Top Rail (With sponge) *1 Lock Frame *2 (With "Left"&"Right"remark on the front face) Sash Lock Window Sash Seal Foam Top Window... -
Page 8: Installation & Assembly Instructions
Your home in sync Installation & Assembly Instructions Some assembly is required for your new air conditioner. Please read and follow these instructions carefully. This air conditioner is designed to be installed in a standard double-hung window with a window width between 23" and 36" (584mm-914 mm). The air conditioner can be installed without the accordion panels to fit in a narrow window opening. - Page 9 Your home in sync Top Rail Assembly The top rail must be assembled prior to installing the air conditioner in the window. Tools Needed: Phillips Head Screw Driver Attaching the Top Rail to the Air Conditioner Remove the air conditioner from the box and place on a hard and flat surface. Remove top rail from the top of the packaging material as shown in Fig.A.
- Page 10 Your home in sync How to Install NOTE: Top Rail and Sliding Panels at each side are offset to provide the proper pitch to the rear of (5/16"). This is necessary for proper condensed water utilization and drainage. If you are not using the Side Panels forany reason, this pitch to the rear must be maintained! Place unit on floor, a bench or a table.
- Page 11 Your home in sync Keep a firm grip on the air conditioner, carefully place the unit into the window opening so the bottom of the air conditioner frame is against the window sill (Fig.5). Carefully close the window behindthe top rail of the unit. (Suggest to keep a down- ward oblique, to let accumulated rain water to drain out, from back side of the unit bottom.) Extend the side panels out against the window frame (Fig.6).
- Page 12 Your home in sync Drive 1/2" (12.7mm) locking screws throughframe holes into window sash (Fig.9 Fig10). Fig.9 Fig.10 To secure lower sash in place, attach right angle sash lock with 3/4" (19 mm) screw as shown (Fig.11). Cut foam seal and insert in the space between the upper and lower sashes (Fig.12). Fig.11 Fig.12...
- Page 13 Your home in sync If AC is Blocked by Storm Window Add wood as shown in Fig.13, or remove stormwindow before air conditioner is installed. SASH Board thickness as required, for proper pitch to rear, along Storm Window entire sill. Fasten with nails or Frame or Other screws.
- Page 14 Your home in sync Introduction to Refrigerants R32 Before installing the appliance, you must read the manual carefully to get the safety information and notes. When filling the combustible refrigerant, any of your rude operations may cause serious injury or injuries to human body or bodies and object or objects. A leak test must be done after the installation is completed.
-
Page 15: Using Your Air Conditioner
Your home in sync Please note that: The installation site should be in a well-ventilated condition. The sites for installing and maintaining an air conditioner using Refrigerant R32 should be free from open fire or welding, smoking, drying oven or any other heat source higher than 548°C which easily produces open fire. - Page 16 Your home in sync AUTO AUTO SPEED MODE 1. Digital Display: Without timer setting, the operation mode is Cooling, Dry, Fan and Auto, and the set temperature will be displayed. Time will be displayed under timer setting. Button: Use these buttons on the control panel and remote to increase or decrease the Set Temperature or Timer.
- Page 17 Your home in sync Auto Mode: In AUTO mode the unit automatically chooses the mode of operation (COOL, DRY, or FAN). In this mode the temperature is set automatically according to the room temperature (tested by the temperature sensor which is incorporated in the indoor unit). 5.
- Page 18 Your home in sync 10. Directional Louvers: To direct the airflow, use the horizontal wheel to control the horizontal direction, control the vertical direction. Air Deflector Horizontal Wheel Air Deflector REMOTE CONTROL POWER COOL SLEEP SPEED TIMER DISPLAY AUTO ONLY MODE 1.
- Page 19 Your home in sync Use these buttons on the control panel and remote to increase or decrease the Set Temperature or Timer. Temperature range: 61°F ~88°F or 16°C ~31°C . 4. Sleep Press the SLEEP button, all of the display lights will turn off after a while, but the Sleep light is always on.
-
Page 20: Care And Cleaning
Your home in sync 9. ECO When the unit is in ECO mode, the light will turn on. In ECO mode, the unit will turn off once the room is cooled to the user set temperature. The unit will turn back on when the room temperature rises above the user set temperature. - Page 21 Your home in sync Wear and Tear To minimize wear and tear on the air conditioner, always wait at least 3 minutes before changing modes. This will help prevent the compressor from overheating and the circuit breaker from tripping. Cabinet Cleaning To clean the air conditioner cabinet: Unplug the air conditioner to prevent shock or a fire hazard.
-
Page 22: Troubleshooting
Your home in sync Troubleshooting Problem Possible Causes Solutions Make sure the air condition- The air conditioner is unplugged er plug is pushed completely into the outlet. Check the house fuse/circuit The fuse is blown/circuit breaker breaker box and replace the is tripped fuse or reset the breaker. - Page 23 Your home in sync Problem Possible Causes Solutions Please allow time for the room The room may be too warm to cool down after turning on the air conditioner. The Air Conditioner does not cool as it Check for open furnace Cold air is escaping should registers and cold air returns.
- Page 24 Model: TWC-08CRD1/L0U(ES) Email: support@acekool.vip Website: https://www.acekool.vip Made in China...
