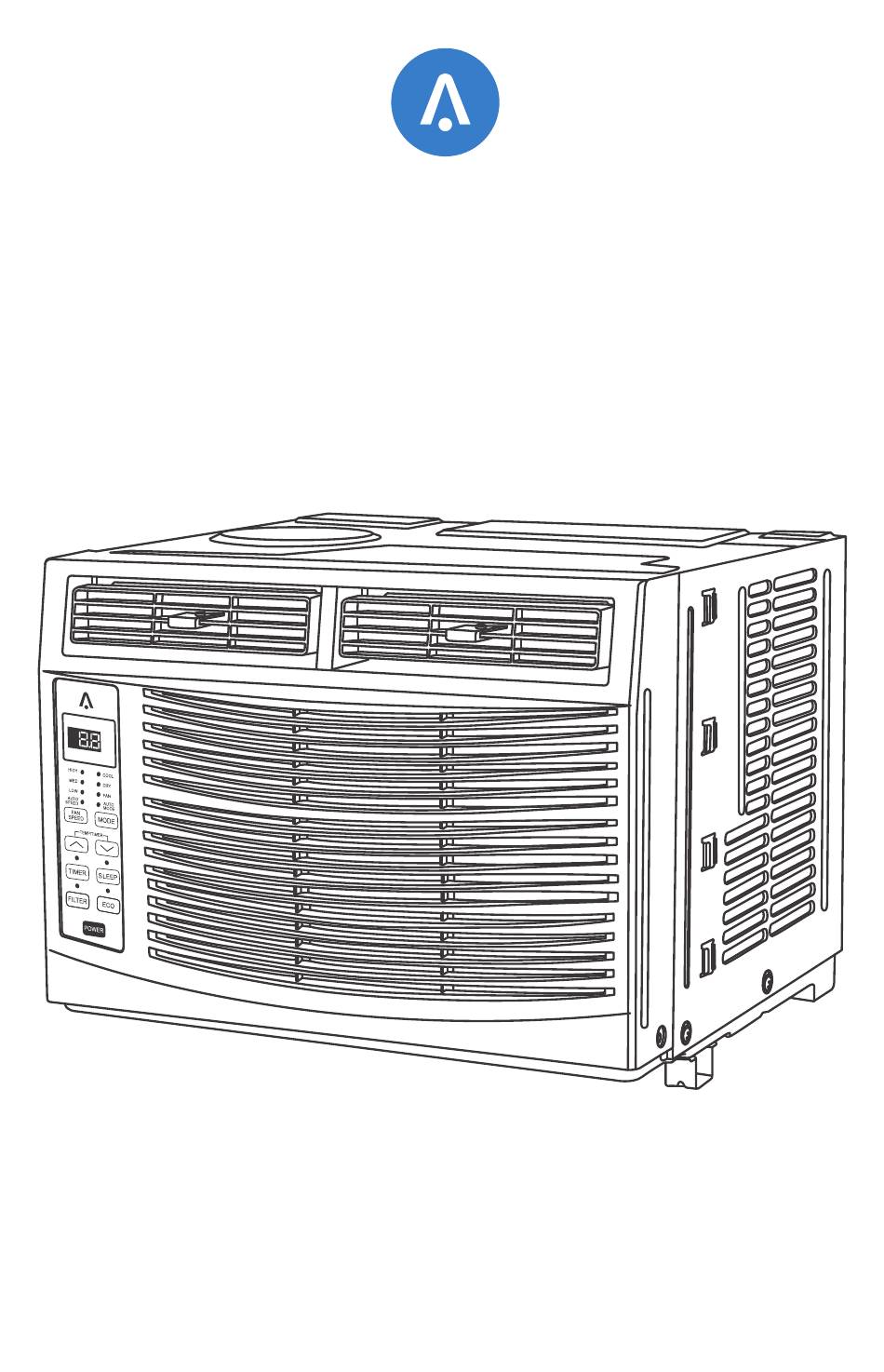

- Page 1 Window Air Conditioner CW1 USER MANUAL Thank you for purchasing Acekool Window Air Conditioner. Before operating this unit, please read these instructions completely and keep the manual ready for further reference.
-
Page 2: Table Of Contents
Your home in sync CONTENTS Important Safety Instructions Electrical Requirements Packing List Installation & Assembly Instructions Using Your Air Conditioner Care and Cleaning Troubleshooting... -
Page 3: Important Safety Instructions
Your home in sync Important Safety Instructions Before installing and using your air conditioner, please read this owner's manual carefully. Store thismanual in a safe place for future reference. Your safety and the safety of others is very important to us. Please pay attention to all safety messages outlined in this user manual. - Page 4 Your home in sync Room area requests for air conditioner with Refrigerant R32 Refrigerant Capacity(Btu) Room Area ≤9K Above 4m² ≤12K Above 4m² ≤18K Above 15m² ≤24K Above 25m² Warning Please read the manual before installation, using, maintenance. Do not use means to accelerate the defrosting process or to clean, other than those recommended by the manufacturer.
-
Page 5: Electrical Requirements
Your home in sync Electrical Requirements Warning Electrical Shock Hazard Plug into a grounded 3 prong outlet. Do not remove the ground prong. Do not use an adapter. Do not use an extension cord. Failure to follow these instructions can result in death, fire, or electrical shock. - Page 6 Your home in sync LCDI Power Cord and Plug This air conditioner is equipped with an LCDI (Leakage Current Detection and Interrup- tion) power cord and plug as required by US National Electric Code 440.65. This cord consists of a length of shielded flexible cord with no termination on the load side and a LCDI attachment plug on the line side.
-
Page 7: Packing List
Your home in sync Packing List POWER COOL SLEEP SPEED TIMER DISPLAY AUTO ONLY MODE Window Air Conditioner *1 Remote Control *1 Filler Panels *2 Top Rail (With sponge) *1 Lock Frame *2 (With "Left"&"Right"remark on the front face) Sash Lock Window Sash Seal Foam Top Window Insulation strip... -
Page 8: Installation & Assembly Instructions
Your home in sync Installation & Assembly Instructions Some assembly is required for your new air conditioner. Please read and follow these instructions carefully. This air conditioner is designed to be installed in a standard double-hung window with a window width between 23" and 34" (584mm-863 mm). The air conditioner can be installed without the accordion panels to fit in a narrow window opening. - Page 9 Your home in sync Top Rail Assembly The top rail must be assembled prior to installing the air conditioner in the window. Tools Needed: Phillips Head Screw Driver Attaching the Top Rail to the Air Conditioner Remove the air conditioner from the box and place on a hard and flat surface. Remove top rail from the top of the packaging material as shown in Fig.A.
- Page 10 Your home in sync Accordion Panel Installation Now that you have installed the top rail, you can now install the accordion panels on each side. Place the air conditioner on a hard flat surface. Locate the accordion panels in the box. Gently pull the free end of the accordion panel (See Fig.2).
- Page 11 Your home in sync Storm Window Requirements A storm window frame will not allow the air conditioner to tilt properly which in turn will keep it from draining properly. To adjust for this, attach a board or piece of wood to the sill. The board or wood piece should have a depth of at least 1-1/2".
- Page 12 Your home in sync Once the air conditioner is placed, extend both the left and right accordion panels to the width of the window. Fig.8 Frame Lock, Sash Lock, and Foam Seal Installation Mounting Hardware Tools Needed: Phillips Head Screw Driver Drill (if plot holes are needed) Place the frame lock between the extended accordionpanels and the window sill as show in Fig.9.
- Page 13 Your home in sync Drive 1/2" screws into the top of the accordion panel frame and the top rail to securely attach the window air conditioner to the lower sash. (See Fig.11 Fig.12) Fig.11 Fig.12 To secure the lower sash into place, use the sash lock and a 3/4" screw as shown below.
- Page 14 Your home in sync Removing the Air Conditioner from the Window Turn the air conditioner off and unplug the power cord. Remove the sash seal from between windows, and unscrew sash lock. Remove the screws installed through the frame and frame lock. Close (slide) the side panels into frame.
- Page 15 Your home in sync 3. Installation Safety 1) Refrigerant Leak Detector 2) Appropriate Installation Location 3) The left picture is the schematic diagram of arefrigerant leak detector Please note that: The installation site should be in a well-ventilated condition. The sites for installing and maintaining an air conditioner using Refrigerant R32 should be free from open fire or welding, smoking, drying oven or any other heat source higher than 548°C which easily produces open fire.
-
Page 16: Using Your Air Conditioner
Your home in sync Using Your Air Conditioner Normal Operating Sounds You may hear a pinging noise caused by water hitting the condenser, on rainy days, or when the humidity is high. This design feature helps remove moisture and improve efficiency. - Page 17 Your home in sync Button: Use these buttons on the control panel and remote to increase or decrease the Set Temperature or Timer. Temperature range: 61°F~88°F or 16°C~31°C. 4. Sleep Button: Press the SLEEP button, all of the display lights will turn off after a while, but the Sleep light is always on.
- Page 18 Your home in sync 9. Fan Speed Button: Press the FAN SPEED button to select the fan speed. In COOL MODE you can choose the following settings: HIGH, MED, LOW, or AUTO. In FAN MODE you can choose from HIGH, MED, LOW.
- Page 19 Your home in sync 1. POWER Turn the air conditioner on and off. 2. Cool Press the COOL button to COOL mode. Use these buttons on the control panel and remote to increase or decrease the Set Temperature or Timer. Temperature range: 61°F~88°F or 16°C~31°C .
-
Page 20: Care And Cleaning
Your home in sync 9. ECO When the unit is in ECO mode, the light will turn on. In ECO mode, the unit will turn off once the room is cooled to the user set temperature. The unit will turn back on when the room temperature rises above the user set temperature. -
Page 21: Troubleshooting
Your home in sync Cabinet Cleaning To clean the air conditioner cabinet: Unplug the air conditioner to prevent shock or a fire hazard. The cabinet and front panel of the air conditioner may be dusted with an oilfree cloth or washed with a cloth dampened in a solution of warm water and mild liquid soap. - Page 22 Your home in sync Problem Possible Causes Solutions Press the RESET button located on the power cord plug. The Air Conditioner The current interrupter device If the RESET button will not will not start is tripped stay engaged,discontinue use of the air conditioner and contact a qualified service technician.
- Page 23 Your home in sync Problem Possible Causes Solutions For proper water drainage, make sure the air conditioner Water is dripping The air conditioner is not is slightly tilted downward inside the room correctly tilted outside from the front of the unit to the rear.
- Page 24 Model: TWC-06CRD1/L1U(ES) Email: support@acekool.vip Website: https://www.acekool.vip Made in China ENERGY STAR...
