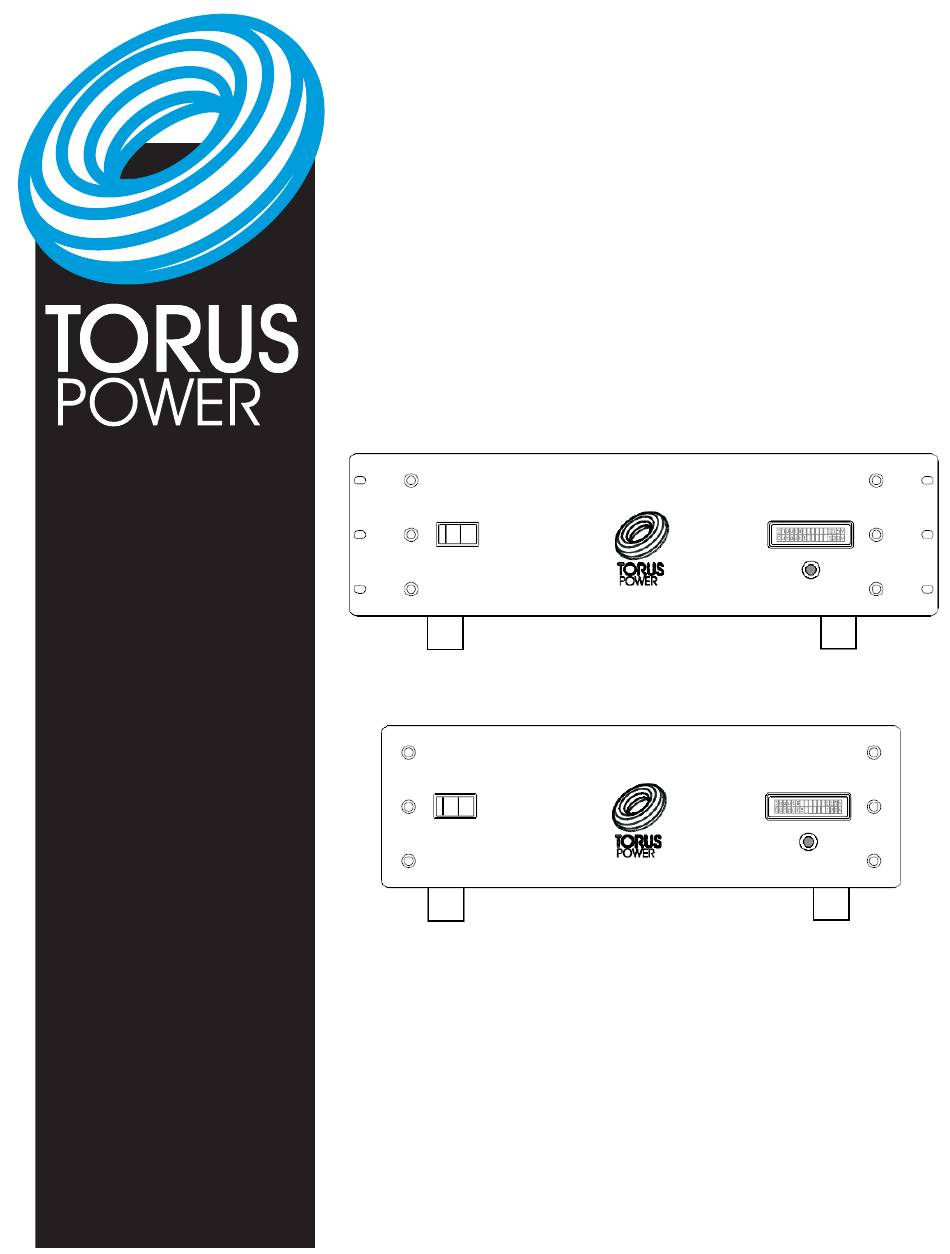

- Page 1 AVR2 Series Manual Toroidal Isolation Power Conditioning Automatic Voltage Regulation IP Addressable, Controllable Zones Surge Protection ™ Toroidal 19” Pro Series Rack Mount (RK) Faceplate Isolation Power Conditioning 17” Consumer Series (C) Faceplate Available in Black (B) and Silver (S) Colours...
-
Page 2: Table Of Contents
Page Table of Content Important Safety Instructions, Shipping Carton & Packing Material Torus Power AVR2 Series Power Conditioner - User Notes and Manual Noise Reduction & Surge Suppresion Front Panel Rear Panel with key features Rear panel connections & AVR software... -
Page 3: Important Safety Instructions
15. The power switch should be in the “off” position when be paid to areas where the plug enters a socket or fused connecting or disconnecting equipment from a Torus Power strip and where the cord exits the device. unit. -
Page 4: Torus Power Avr2 Series Power Conditioner - User Notes And Manual
Torus Power AVR2 Series Power Conditioners - User Notes and Manual Torus Power AVR2 Series - Description Summary of AVR2 Series features Torus Power AVR2 series products are full-feature Toroidal Isolation Power Conditioning provides state-of-the-art power conditioners and voltage the ultimate in clean power performance... -
Page 5: Front Panel
LOW VOLTAGE HIGH VOLTAGE As the output power from the Torus Power AVR2 is shut down, all the connected equipment is turned off. The AVR2 power switch remains in the ON position, although there is no power to the load. -
Page 6: Rear Panel With Key Features
Torus Power AVR2 Series Power Conditioners - User Notes and Manual Continued AVR2 Rear Panel with Key Features Ethernet: Allows access to the AVR2 and internal software. RS232: Allows access to automation and external control. (See page 21) 12V Trigger On/Off: Units can be turned on or off by a 12 volt trigger input. -
Page 7: Rear Panel Connections & Avr Software
Block Diagram - AVR2 System Rear Panel Connections and AVR Software & (See page 5) (See page 5) Figure: AVR2 Rear Panel connections. AVR2 Software AVR2 software is resides in the microprocessor on the internal control board. There are two methods to access the software. -
Page 8: Avr Software - Menu Selections
AVR2 Software - Menu Selections (continued) Switch Main Power This screen allows ON/OFF control of the AVR2 unit. Press the button to implement your selection. As the output power from the Torus AVR2 unit is shut down, all the connected equipment is turned off. -
Page 9: Avr Software - Menu Selections (Continued)
System Setup Email Configuration Date and Time Setup Schedule Management Change Password Torus Power Home Network Configuration Below is a screen by screen description of software options for 3U models. 4U and 5U have 7 + Zone R. System Status... -
Page 10: System Setup
AVR2 Software - Menu Selections (continued) System Setup Router Reboot: (Checked Zone R Router Reset) 1. Out of Range Voltage: The factory default settings is to shut down in case -Zone R can only be used for router and/or of fault voltage condition (button modems checked). -
Page 11: Date & Time Setup
AVR2 Software - Menu Selections (continued) Date and Time Setup When AVR2 is connected to the internet, the Day, Date and Time will automatically be set. However, when the AVR2 has no access to the internet (internet absent) The Day, Date and Time can be set manually which will allow the AVR2 to follow scheduled programming even if the internet is later unavailable. - Page 12 When the power is on, the Switch is illuminated. When the breaker trips, the switch returns to its “off” position. While Torus Power AVR2 Units are designed to handle well beyond these limits, they must be marked with a Thermal Protection maximum input current that satisfies the requirements.
-
Page 13: Block Diagram - Avr2 System
Block Diagram - AVR2 System www.TorusPower.com ™ Owner’s Manual AVR2 Power Conditioners Audio / Video Power Isolation Units AVR2 RM and Wall Mount Series 05/13 REV.05/08/2013 Page 12... -
Page 14: Electrical Specifications- North American/International
Electrical Specifications Output Voltage Maximum Available Input Circuit Breaker Number of IP Nominal Output Current (Fuses) Addressable Zones Model Number Input Voltage Nominal North American 120VAC Operating Range 85 to 20A Circuit Breaker AVR2 15 PLUS RK 120VAC ±5V 4 + R 135VAC Front Panel 120VAC Operating Range 85 to... -
Page 15: Mechanical Specifications - North American
Mechanical Specifications - North American Input (Inlet) connector Size, mm (w x d x h) Model Number Line Cord Output Connector (Rear Panel Weight (Rear Panel) Size, inch (w x d x h) North American IEC 20A InletIEC 15A 533x584x235 AVR2 15 PLUS N5/15, 14AWG C13, 15A/125V 10 outlets Medical Grade, 15A... -
Page 16: Mechanical Specifications International
Mechanical Specifications - International Input (Inlet) connector Size, mm (w x d x h) Model Number Line Cord Output Connector (Rear Panel) Weight (Rear Panel) Size, inch (w x d x h) International 10A/250VAC, 2.5M PLUG TYPE: 21x23x9.25 CEE 7/7 CONNECTOR TYPE - IEC - AVR2 8 CE 16A/250V IVORY CE SOCKET (x5) 533x584x235... -
Page 17: Rear Panel Layout: North American
Rear Panel Layout: North American Medical Grade Outlets RS232 NEMA 5-20R Ethernet 12VDC Trigger 12VDC Fault Power Inlet (IEC 320-C20) Accessory Ground Stud 3U (4 zones+R) Rubber Mounting Feet Zones A, B, C and D can be individually (May be removed if controled and programmed rack mounting) Unregulated Re-bootable... -
Page 18: Rear Panel Layout - International (Aus/Uk, Ce. Iec)
Rear Panel Layout: International - Australia (AUS)/United Kingdom (UK) 12VDC Trigger 12VDC Fault RS232 Unregulated Ethernet Re-bootable Router Outlet Power Inlet (IEC 320-C20) Rubber Mounting Feet (May be removed if rack mounting) BS 1363 Outlets 3U (4 zones+R) Zones A, B, C and D can be Accessory individually controlled and programmed Ground Stud... - Page 19 Rear Panel Layout: International - Continental Europe (CE) 12VDC Trigger 12VDC Fault RS232 Unregulated Ethernet Re-bootable Router Outlet Power Inlet (IEC 320-C20) Rubber Mounting Feet (May be removed if rack mounting) CEE7 Outlets 3U (4 zones+R) Zones A, B, C and D can be Accessory individually controlled and programmed Ground Stud...
- Page 20 Rear Panel Layout: International - IEC 12VDC Fault 12VDC Trigger RS232 Ethernet Unregulated Re-bootable Router Outlet Power Inlet (IEC 320-C20) Rubber Mounting Feet (May be removed if rack mounting) IEC 320 C19 3U (4 zones+R) Outlets Zones A, B, C and D can be Accessory individually controlled and programmed Ground Stud...
-
Page 21: What's Inside Rm Series
What’s Inside RM Series Ethernet Communication 2-Pole Magnetic Medical Grade Outlet Board Contactor Surge Suppresion Citcuit Board Power Inlet Potential Transformer to Monitor Output Voltage Toroidal Isolation Transformer Current Transformer to Monitor Output Current Controller Relay Board (Can be individually Potential programmed) Transformer... -
Page 22: Schematic Rm Series
Schematic RM Series www.TorusPower.com ™ Owner’s Manual AVR2 Power Conditioners Audio / Video Power Isolation Units AVR2 RM and Wall Mount Series 05/13 REV.05/08/2013 Page 21... -
Page 23: What's Inside Wall Mount Series
TVSS The Wall Mount Torus Power is available with a TVSS device built in to its signal path. This UL certified Panel TVSS has a sub-nanosecond response time and manages surges beyond 20,000 Amps. -
Page 24: Schematic Wall Mount Rm Series
Schematic Wall Mount Series www.TorusPower.com ™ Owner’s Manual AVR2 Power Conditioners Audio / Video Power Isolation Units AVR2 RM and Wall Mount Series 05/13 REV.05/08/2013 Page 23... -
Page 25: Calibration
Calibration AVR Calibration 1. To calibrate the unit, you will need to have the AVR powered and have Ethernet Connectivity between the PC and AVR. The user name is ‘calibrate’ and the password is ‘plitron’. 2. The calibration is performed by applying fixed load to the AVR and measuring the input and output voltages and the output current. -
Page 26: Crestron Electronics Module For Torus Power Avr2 Modules
Partner Program initiative makes it easy to take advantage of the enhanced functionality afforded by using a manufacturer's serial, Ethernet, or other enhanced interface To view all current Torus Power modules for use with a Crestron Control System, please visit the following link:” The link may be: www.crestron.com http://www.crestron.com/partnerships/integrated_partner_program/ http://www.crestron.com/resources/product_and_programming_resources/integrated_... -
Page 27: Home Automation Interface
Warranty coverage is extended to applicable products registered or having proof-of-purchase (sales invoice, etc.). In the event of a defect or malfunction, Torus Power will remedy the problem by repair or replacement, as we deem necessary, to restore the product to full performance. - Page 28 Torus Power products are marketed worldwide through Plitron Manufacturing Inc. www.TorusPower.com For sales contact: torussales@plitron.com Phone: 416-667-9914 Torus Power Toll free: 1-800-754-8766 #8 601 Magnetic Drive Fax: 416-667-8928 Toronto, ON M3J 3J2 Canada ™ Technical inquiries: 416-667-9914 torustechnical@plitron.com Phone: 416-667-9914 Specifications subject to change without notice.
