Summary of Contents for Growatt INFINITY 1300

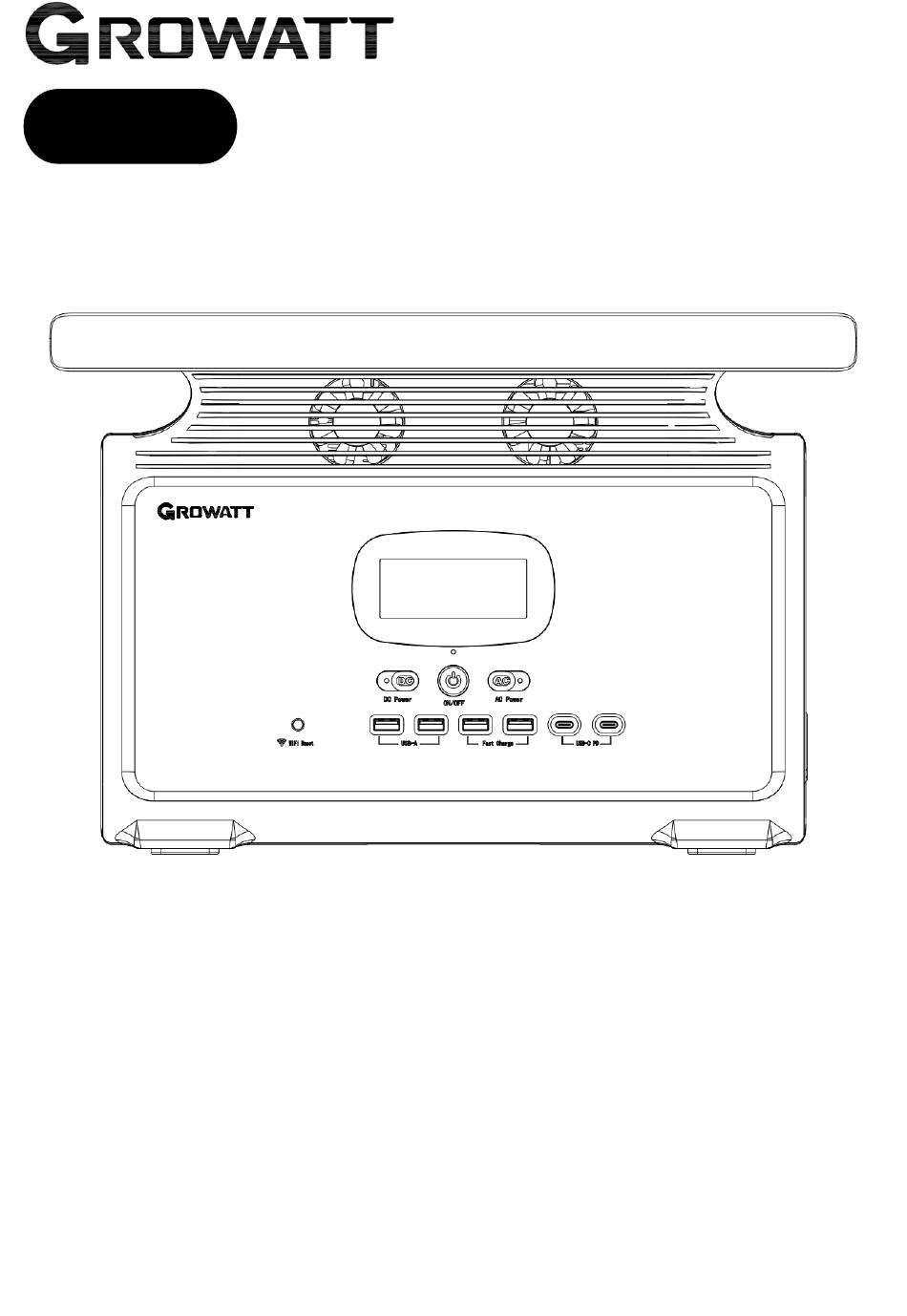

- Page 1 User Guide INFINITY 1300 Portable Power Station User Guide SAVE THESE INSTRUCTIONS Contact Us www.Growatt.com...
-
Page 2: Important Safety Instructions
Package Contents INFINITY 1300 Portable Power Station 1.5m AC Charging Cable 1500 User Manual and Warranty Card Important Safety Instructions Warning – Please read the instructions carefully before you use the product. You must follow the precautions below when using this product. - Page 3 Do not use wires or other metal objects to cause product short circuit. The use of unofficial components and accessories is strictly prohibited. For replacement, please check the relevant purchase information on the Growatt official website(www.growatt.com). Growatt is not responsible for product accidents and malfunctions caused by the use of products not officially provided by Growatt.
- Page 4 The remaining charging time calculated by the system based on the current power consumption, accurate to 0.1 hour. Input Power The total input power of wall charge, solar charge, and car charge. .AC Input Indicator INFINITY 1300 is being charged using the wall charger. PV Input Indicator INFINITY 1300 is being charged using the solar panels.
- Page 5 The product is connected to Wi-Fi and can be controlled remotely through the MyGro APP. How to Use Before use, please put INFINITY 1300 on a clean and flat ground to ensure that the machine will not be in contact with liquid or tilted, and check whether there are foreign objects on the body.
-
Page 6: How To Recharge
AC Charging and Car Charging The charging ports for the INFINITY 1300 locate on the left side of the product. The charging port for the INFINITY 1300 is on the left side of the product. Please follow the instructions below to connect and recharge the product. - Page 7 1.Connect with Growatt Solar Panels You can charge the INFINITY 1300 by connecting up to four 24V solar panels in series or using eight 12V solar panels (two sets in parallel with each set of 4 panels in sereis). Connect the MC4 connector on the solar panel to the MC4-XT60 adapter cable, and supply power to the INFINITY 1300 through the XT60 port on the side of the INFINITY.
- Page 8 2.Connect with Other Branded Solar Panels Users can purchase other brands of solar panels (supporting MC4 Connector) to power the INFINITY 1300 through their own channels. As long as the voltage and current are within the DC input range of INFINITY 1300 (10-100V 12AMax), users can charge INFINITY 1300 through the MC4 to XT60 adapter cable.
-
Page 9: Technical Specifications
AC input port of Slave 1, then connect the AC output port of Slave 1 to the AC input port of Slave 2, then plug the load device into the AC output port of Slave 2(as shown in the figure below), and finally turn on the AC output power of all INFINITY 1300 to enable battery expansion. - Page 10 How to clean INFINITY 1300? If the INFINITY 1300 needs to be cleaned, please wipe it with a dry, non-abrasive cloth or use a special cleaner for LCD screens to achieve better cleaning results. Do not let water enter the inside of the product, which may cause damage to the circuit or parts!
- Page 11 Please check the output power of your USB devices. Remove your USB device(s) if the output exceeds Overload the maximum output of the USB port(s). Product The INFINITY 1300 is overloaded. Unplug part or all of the loads and keep the total output within 2400W to Overload resume normal operation. PV board over Disconnect the solar panels from the portable power station to resume normal operation.
-
Page 12: Troubleshooting
3.There is nothing wrong with the above, but you also can’t Contact Professional Repair. charge. 1.The device and INFINITY 1300 cable are not plugged in Check if the connection is active, keep the connection fit tightly. properly. 2.Output port switch not turned on. - Page 13 ISED Statement English: This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada’s licence-exempt RSS(s). Operation is subject to the following two conditions: (1) This device may not cause interference. (2) This device must accept any interference, including interference that may cause undesired operation of the device. The digital apparatus complies with Canadian CAN ICES-3 (B)/NMB-3(B).
