Contents
Product Overview ...................................................... 2
......................................................... 2
......................................................... 2
Connection .......................................................... 4
Driver Installation ..................................................... 7
........................................................... 7
............................................................. 10
Driver ............................................................. 13
...................................................... 15
........................................................ 21
....................................................... 25
............................................... 13
.................................................. 16
Keydial mini
1 / 29
Advertisement
Table of Contents
Related Manuals for Huion Keydial mini
Summary of Contents for Huion Keydial mini
-
Page 1: Table Of Contents
Keydial mini Contents Product Overview ............2 Introduction ............2 Accessories ............2 Connection ............4 Driver Installation ............. 7 Windows ............7 ............. 10 Driver ............. 13 Driver Interface Overview ..........13 Keydial Setting ............15 Keys Function Setting .......... -
Page 2: Product Overview

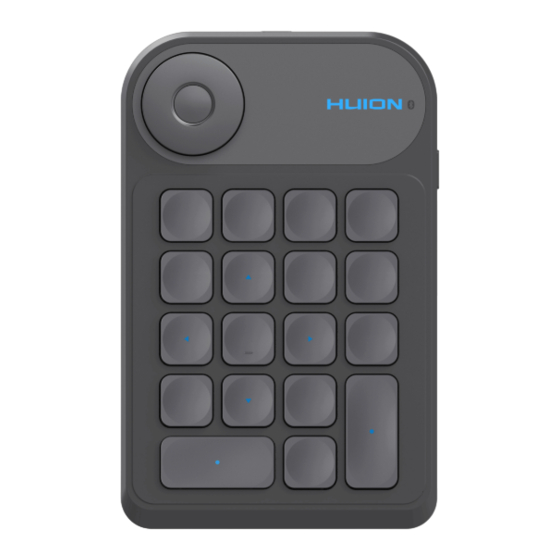

Product Overview Introduction Thanks for choosing HUION Keydial mini. Keydial mini belongs to Huion keydial series and can be used with pen tablets, pen displays and other drawing products, supporting Bluetooth connection. It can be operated flexibly with one single hand. - Page 3 Keydial mini Accessories Please see the detailed product introduction. Indicator Light While connecting, you can judge the working status of the product by observing the color of the light. State of Light Function Description Flash blue light Bluetooth waiting for pairing...
-
Page 4: Accessories
The one-handed keyboard can be connected to a computer or mobile device with USB-C cable or Bluetooth. Wired Connection ① Take out the USB cable from the package, and then connect Keydial mini to your computer; ② Please download the Keydial Driver from our website: Driver-Keydial mini;... - Page 5 HuionKeydial APP with your mobile device. ③ Press the Power button on your Keydial mini to start the one-handed keyboard (If no Bluetooth connection request is detected within 3 minutes, the one-handed keyboard will shut down automatically) ④...
- Page 6 Keydial mini Note: Press key functions can be customized in HuionKeydial APP. Please refer to HuionKeydial User Manual for tutorial. Besides, if you find no Bluetooth of the one-handed keyboard on your computer or mobile device, you can try the method below to force the pairing and connection:...
-
Page 7: Driver Installation
Keydial mini ① Enable Bluetooth on your computer or mobile device; ② Press the Power button on your Keydial mini to start the one-handed keyboard; ③ At the same time, press the Forced Bluetooth Pairing key on the one-handed keyboard and hold for 3s until the status light flashes, indicating that the device enters Forced Pairing mode;... - Page 8 ② Please make sure your computer operating system is Windows 7 or later. ③ Open the driver and a picture of Keydial mini will appear, indicating that the one-handed keyboard is successfully connected to your computer. Now you can use your keyboard.
- Page 9 Keydial mini 6. After the installation has been completed, click on “Try it now”. 7. A picture of Keydial mini will appear on the driver interface to indicate a successful connection. Now you can use your keyboard. 9 / 29...
-
Page 10: Mac
1. Please make sure your computer operating system is macOS 10.12 or later. 2. Open the driver and a picture of Keydial mini will appear, indicating that the keyboard is successfully connected to your computer. Now you can use your keyboard. - Page 11 Keydial mini 3. Click Driver-Keydial mini to download it. 4. Unzip the driver file and drag the HuionTablet driver application into the “Applications” folder. 5. Open the folder and then find and double-click the HuionTablet driver application. 6. Connect the pen display to your Mac, and click “Open System Preferences" when prompted.
- Page 12 Keydial mini 7. A picture of Keydial mini will appear on the driver interface to indicate a successful connection. Now you can use your keyboard. 12 / 29...
-
Page 13: Driver
Keydial mini Driver Driver Interface Overview 13 / 29... - Page 14 Dial function/ sensitivity and other functions. See Section 2. Store Huion Store is where you can get the latest information about the product such as its FAQ or sales promotion. In addition, you can also purchase Huion’s other products or accessories here.
-
Page 15: Keydial Setting
Keydial mini ③ When you select “All programs”, the functions of press keys that you set are valid for every program. By clicking Add a Program from the drop-down list, you can set the functions for a specific program and hence have unique settings for different programs. After that, when you launch a specific program, the Driver will automatically recognize it and the setting features will change to its corresponding ones. -
Page 16: Keys Function Setting
Keydial mini Select "Custom Function" and "RaDial", and then you can set Dial Functions. Section. When select "None", Dial will have no function and will not execute any order while rotating. 3. Dial Sensitivity In "Custom Function" mode, click to adjust the sensitivity of Dial from level 1 to level 5, among which level 1 represents the slowest and level 5 represents the fastest. - Page 17 Keydial mini click the key to select the functional property of the key and customize its function. 17 / 29...
- Page 18 Keydial mini Please refer to the setting list to help you decide whether or not to change the specified setting. Note: Driver function may vary with system and driver version. Please refer to the actual version. . And this table is subject to change without notice.
- Page 19 Keydial mini Off, Show/Hide Desktop, Task View, Start Menu, and Calculator. Multimedia You can apply these functions to press keys: Previous Song, Next Song, Play/Pause, Volume up, Volume down, and Muted. Settings Preview The key can be set with the function of settings preview.
- Page 20 Keydial mini Picture 1 Picture 2 Picture 3 20 / 29...
-
Page 21: Dial Setting
Keydial mini Dial Setting You can use Dial alone, or you can use it in Radial module of Windows. Set in HuionTablet driver to change or customize Dial function. Please jump to Windows setting>device>wheel to change or customize Radial function. - Page 22 Keydial mini ① Custom Function: Open the driver interface and click "Dial Function" Select "Customize the Feature" 22 / 29...
- Page 23 Keydial mini Click Dial on Keydial mini picture. Select the function you want to set for Dial. 23 / 29...
- Page 24 Keydial mini Rotate the knob clockwise/counterclockwise, then you can use Dial. Please refer to the table below for specific functional properties for your understanding and usage. Default The default three functions of a dial controller are “Zoom in/out”, “Adjust Brush Size”, and “S Multimedia You can turn the dial controller to play the previous song or next song.
-
Page 25: Driver Setting
Keydial mini Open Windows Setting>Device>Wheel. Select default tool or custom tool of the wheel. Rotate the knob clockwise/counterclockwise, then you can use Dial. ③ None: Dial has no function and will not execute any order while rotating. Driver Setting 1. Device Here you can view the firmware version and click to run the device diagnostic tool. - Page 26 Keydial mini 2. Backup The Driver can import and export your custom settings, which helps to avoid repeated settings when launching a different program. 26 / 29...
- Page 27 Keydial mini 3. General Setting Language: Click the drop-down button to select a language. Color: You can select the color of the Driver interface among Dark, Blue, and Light according to your preference. Start Menu: Click to enable or disable “Auto-Start”, “New Message Alert”, “Share diagnostic and usage data”, “Low Battery Warning”, and “Automatic Updates”.
- Page 28 Keydial mini 4. About Users can check the Driver version here. Click “Check for Updates” to find the latest Driver version and then follow the prompts to update the Driver if needed. 28 / 29...
- Page 29 Keydial mini 29 / 29...
