Huion KD100 Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Contents
Product Overview .................................................. 2
........................................................ 2
Product Connection ................................................ 3
Driver ............................................................. 4
....................................................... 4
..................................................... 7
...................................................... 8
Function Setting .................................................. 12
Specifications ..................................................... 20
................................................. 2
.............................................. 5
............................................... 12
................................................ 17
KD100
1 / 21

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the KD100 and is the answer not in the manual?

Questions and answers

Related Manuals for Huion KD100

Summary of Contents for Huion KD100

  • Page 1: Table Of Contents

    KD100 Contents Product Overview ..........2 Product Introduction ..........2 Accessories ............2 Product Connection ..........3 Driver ............. 4 Install Driver ............4 Driver Interface Preview ..........5 Keydial Setting ............. 7 Driver Setting ............8 Function Setting ..........12 Keys Function Setting ..........

  • Page 2: Product Overview

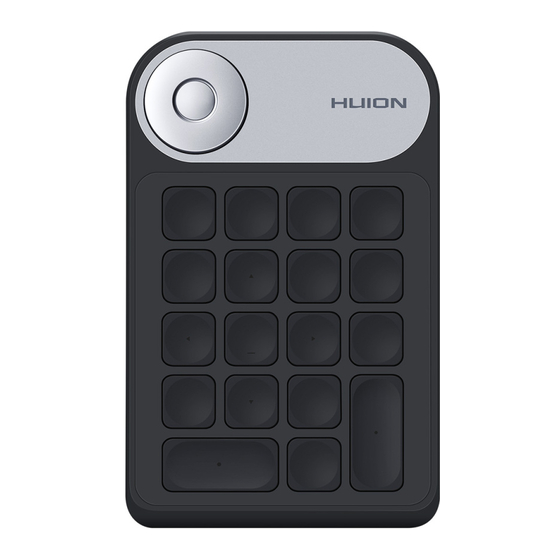

    Product Overview Product Introduction Thanks for choosing HUION mini Keydial KD100. This is a first generation of professional mini keyboard, which can greatly improve your work efficiency of painting and creation, and full of fun. You can freely define the function of the button, which brings you a real shock experience.

  • Page 3: Product Connection

    1. Take out the USB cable from the package, then connect Keydial to your computer. 2. Please download the Keydial Driver from our website:Driver-KD100. Besides, you don't need to download the driver anymore if you already installed the other display or tablet driver(V15).

  • Page 4: Driver

    KD100 button on again to wake the tablet up. 3. LED Light You can judge the working status of the product by observing the color of the light. 1. Blue light: Working 2. Flash red light: Low battery 3. Red light: Charging 4.

  • Page 5: Driver Interface Preview

    KD100 3. Please make sure your computer OS are as following: Windows 7 or later, macOS 10.12 or later. 4. Run the tablet driver program and complete the installation according to the instruction. After the download is successful, double-click to open the driver, Connect the device to your computer.
  • Page 6 Press Key and Dial. See Section 2. Store Huion Store, where you can get the latest information about the product such as its FAQ or sales promotion. Additionally, you can also purchase other products or accessories on Huion Store. 3. Add Programs You can customize different functions on the current device for different programs.

  • Page 7: Keydial Setting

    KD100 program and hence have unique settings for different programs. After that, when launching a specific program, the Driver will automatically recognize it and the setting features will change to its corresponding one. 4. Setting The users can set the Driver function on this interface. About Device Information, Backup Setting, General Setting and Driver Update.

  • Page 8: Driver Setting

    KD100 Click to adjust the brightness of the LED light from level 1 to level 5, among which level 1 represents the darkest and level 5 represents the brightest. 2. Dail Function Settingigital You can select Customize mode, Radial mode, or Off mode under the Features of Dial. In Customize mode, you can customize the features of the Dial.
  • Page 9 KD100 2. Backup The Driver can import and export your custom settings, which helps to avoid repeated settings when launching a different program. 9 / 21...
  • Page 10 KD100 3. General Setting [1] Language: Click the drop down menu to select a language. [2] Color: You can select the color of the Driver interface among Dark, Blue, and Light according to your preference. [3] Start Menu: Click to enable or disable AutoStart, New Message Alert, Automatic Updates.
  • Page 11 KD100 4. About Users can check the Driver version number here. Click Check for Updates to view the latest Driver version and then follow the prompts to update the Driver if needed. 11 / 21...

  • Page 12: Function Setting

    KD100 Function Setting Keys Function Setting Press Key You can customize the functions of these buttons according to your own habits, and you can uncheck "Enable press keys" in the lower left corner to turn off the button function. Place the cursor on a key to check its default value. Click the key for a pop-up dialog box and then set the function.
  • Page 13 KD100 1. Keyboard Key Click on the input box above and enter a valid key combination to creat a shortcut. For example "Ctrl+A", "Ctrl+Z", and so on. 13 / 21...
  • Page 14 KD100 2. Mouse Key Select the function of a Mouse or Wheel. Please see the picture below for detailed functions. Mouse: Left Button, Right Button, Middle Button. Wheel: Wheel Forward, Wheel Backward. Double-Left Click. 14 / 21...
  • Page 15 KD100 3. Switch Select Switch Screen or Switch Brush. Note: Some software does not support the "Switch Brush" function. 4. Run Program Browse and select a program that you want to launch quickly. After the setting, you can launch that program with just a single press.
  • Page 16 KD100 5. System Application The table below are the functions of Windows and Mac Systems that can be customized on the Keys. 6. Multimedia 16 / 21...

  • Page 17: Dail Function Setting

    KD100 To realize the functions such as previous song, next song, play/pause, volume up, volume down. 7. None When select None, the keys will have no function. Dail Function Setting You can customize the features of the Dial, and you can uncheck "Enable Dial" in the lower left corner to turn off the Dial function.
  • Page 18 KD100 1. Default Features You can zoom in/out on canvas, Adjust Brush Size, Scroll Up/Down. 18 / 21...
  • Page 19 KD100 2. Multimedia To realize the functions such as previous song, next song, play/pause, volume up, volume down. 3. Customize Features 19 / 21...

  • Page 20: Specifications

    KD100 Input the features under rotate right / rotate left. After the setting, you can rotate the Dial to realize corresponding features. 4. None When select None, the keys will have no function. Specifications Here are the product specifications for you to learn more about the KeyDial. If you have any questions, please feel free to contact us.
  • Page 21 KD100 Interface: USB-C Technical Specifications Wireless Connection: 2.4G Ergonomics: Support left and right hands Communication Distance: 5-10m (depending on the use environment) Press Keys: 18 Press Keys+Dial OS Compatibility Windows 7 or later macOS 10.12 or later 21 / 21...
