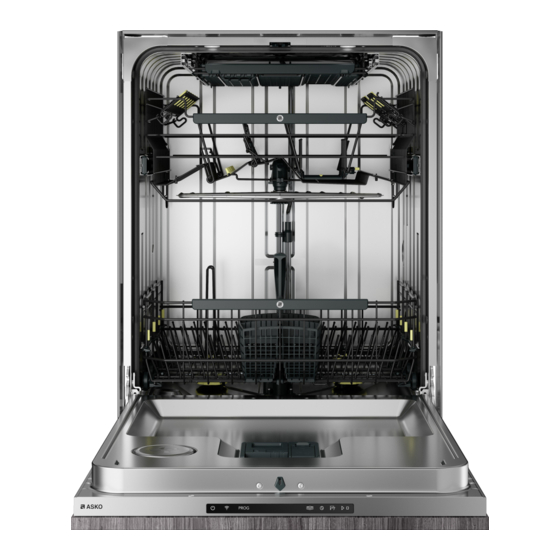

- Page 1 USER MANUAL DFI564XXL.U Dishwasher...
-
Page 2: Table Of Contents
Typical load ..........Items excluded from warranty ..... Using the dishwasher ........ Disclaimer ............ Add detergent ..........ASKO Customer Care ........On/Off ............Service after expiration of limited warranty ... Select program ..........Number of cycles ........Select program mode ........ -
Page 3: Your Dishwasher
Install the dishwasher; see the chapter Installation instructions. Then open the door and press "Welcome to your ASKO. First time setup." is shown on the display the first time the dishwasher is switched on. It is important that you choose the right settings to ensure good dishwashing results. -
Page 4: Important Safety Instructions
Important safety instructions SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE WARNING! When using your dishwasher, follow basic precautions, including the following: • Read all instructions before using the dishwasher. • Use the dishwasher only for its intended purpose. • Use only detergents or rinse agents recommended for use in a dishwasher and keep them out of the reach of children. -
Page 5: Child Safety
Important safety instructions Child safety • Always keep small children away from the machine when it is open. There may be some detergent residue left inside the machine. • Always close the door and start the dishwasher as soon as you put in the detergent. •... -
Page 6: Disposal
Important safety instructions Disposal The dishwasher is manufactured and labeled for recycling. When the machine has reached the end of its service life and is to be disposed of, it should immediately be made unusable. Pull out the power cord and cut it as short as possible. Contact your municipality for information about where and how your dishwasher can be recycled correctly. -
Page 7: Before Washing For The First Time
In general, more rinse aid and detergent are needed for hard water. Basic settings Open the door. Press "Welcome to your ASKO. First time setup." is shown on the display. It is important that you choose the right settings to ensure good dishwashing results. Select setting with . -
Page 8: Add Rinse Aid
Before washing for the first time Add rinse aid Fill up the rinse aid compartment with rinse aid if you have selected Rinse aid 1 - 5. Lift up to open Press to close 1. Open the rinse aid compartment lid. 2. -
Page 9: Greener Dishwashing
Greener dishwashing Save energy and water When using a dishwasher in a residential setting, less energy and water are generally used compared to washing the dishes by hand. Do not rinse under running water Do not rinse the dishes under running water as this will lead to increased energy and water consumption. -
Page 10: Loading The Dishwasher
Loading the dishwasher Fragile dishes Some cookware is not dishwasher safe. This can be for several reasons. Some materials cannot withstand high temperatures, others can be damaged by dishwasher detergent. Use caution with, for example, handmade items, China, crystal/glassware, silver, copper, tin, aluminum, wood, and plastic. -
Page 11: The Dishwasher's Baskets
Loading the dishwasher The dishwasher's baskets The dishwasher includes a top cutlery tray, an upper basket, and a lower basket with a cutlery basket. The basket appearance may differ depending on the configuration. Top cutlery tray The top cutlery tray accommodates cutlery, ladles, whisks, and other utensils. Avoid placing tall objects in the top cutlery tray. -
Page 12: Upper Basket
Loading the dishwasher Upper basket Place glasses, cups, bowls, side plates, and saucers in the upper basket. Place all soiled surfaces face down. Place wine glasses on the wine glass shelf. Place knives in the knife stand on the right. Knife stand Raising and lowering the upper basket 1. -
Page 13: Lower Basket
Loading the dishwasher Lower basket Place plates, side plates, serving dishes, pots, and cutlery (in the cutlery basket) in the lower basket. Adjustable plate supports The adjustable plate supports can be adjusted to suit the dishes. Release the plate supports by pushing them inward before repositioning them. - Page 14 Loading the dishwasher Adaptable power zones The dishwasher's two adaptable power zones can be opened in two different positions or turned off. For vases and slim items For pots and pans For higher spray pressure in the lower spray arm Default: Off Leave the power zones open if you want an increased water flow where, for example, you have placed pots and pans or vases and slim items.
-
Page 15: Cutlery Basket
Loading the dishwasher Accessory Buy a wine glass shelf with space for six tall wine glasses. The wine glass shelf is designed to ensure optimal washing and drying results with tall wine glasses. The wine glass shelf is placed in the rear section of the lower basket. -
Page 16: Typical Load
Loading the dishwasher Typical load Recommended for daily, regular, or typical use. Upper basket Lower basket... -
Page 17: Using The Dishwasher
Using the dishwasher Add detergent Follow the instructions on the detergent packaging. Too much detergent can result in less effective dishwashing and lead to greater environmental impact. Detergent compartment The detergent compartment must be dry when adding detergent. If powder or liquid dishwasher detergent is used, add a small amount of the detergent to the compartment for prewash detergent. -
Page 18: On/Off
Using the dishwasher On/Off Start/Stop Select program Select program mode Select option On/Off Open the door and press . Also turn on the water supply valve if it is turned off. Select program To select a program, press until the desired program is shown on the display. Select a program to suit the type of dishes and how dirty they are. -
Page 19: Select Program Mode
Using the dishwasher Sanitize This program is recommended for baby bottles and cutting boards when additional sanitation is required. The temperature is high in the main wash and in the final rinse. Rinse and hold Use to rinse dishes while you wait for the dishwasher to become fully loaded. Self-cleaning Self-cleaning program for sanitizing the dishwasher tub, spray arms, and spray pipes. -
Page 20: Start/Stop
Using the dishwasher NOTE! For the best drying results, do not close the door before the drying phase has finished and the machine has automatically switched off. WARNING! The dishwasher door must not be blocked or closed when opened automatically. Doing so may damage the door lock mechanism. -
Page 21: Status Light
Using the dishwasher Status light The status light at the bottom on the dishwasher provides information by means of 3 different colors. Status light Blue - Load more The program has started, but you can still load more dishes. Red - Do not load You should not load more dishes (can result in poor dishwashing). -
Page 22: The Best Drying Results
Using the dishwasher Once the dishwasher door is opened and the program has finished, "Program done" appears on the display. The dishwasher switches off automatically after the program ends. To minimize the risk of leaks, we recommend that you turn off the water supply valve if away from home for an extended period of time. -
Page 23: Program Chart
Program chart... -
Page 24: Settings
Settings Open the door and press To open the dishwasher's Settings menu, press until Settings menu is shown on the display and confirm your selection with To exit the dishwasher's Settings menu, select Exit and confirm your selection with Select setting Confirm current setting Settings Alternatives... - Page 25 Settings Settings Alternatives • If the dishes have a sticky white/blue film. • If the dishes are streaked. • Heavy foaming. If you have very soft water, the rinse aid can be diluted 50:50 with water. On/Off Activate this setting when using an all-in-one detergent that contains rinse aid.
-
Page 26: Care And Maintenance Instructions
Care and maintenance instructions Add rinse aid When the rinse aid needs filling up, the above symbol lights on the display. Lift up to open Press to close 1. Open the rinse aid compartment lid. 2. Carefully fill up with rinse aid to the level marked MAX. 3. -
Page 27: Cleaning The Spray Arms
Care and maintenance instructions Fine filter 1. Turn the lock ring counterclockwise and lift the fine filter straight up. 2. Clean the fine filter. 3. Refit the fine filter and turn the lock ring clockwise to its stop position. Check that the edges seal properly. -
Page 28: Clean The Outside Of The Dishwasher
Care and maintenance instructions Top spray arm • Pull out the top cutlery tray. Push up on the top spray arm while turning it counterclockwise to release it. Upper spray arm • Pull out the upper basket. • Unscrew the spray arm bearings counterclockwise to remove the spray arm from the upper basket. -
Page 29: Run Self-Cleaning
Care and maintenance instructions Control panel Keep the control panel clean. If necessary, wipe it with a dry or slightly damp cloth. Never use cleaning products they may scratch the surface. Run Self-cleaning Dishwasher tub The dishwasher tub is made of stainless steel and is kept clean through normal use (when used regularly). -
Page 30: Troubleshooting
Troubleshooting Error messages Action Overfilling water 1 Unblocking the drain pump. See the chapter Care and maintenance instructions. If the problem persists, contact your nearest Customer Care Center. Water outlet fault See "Water remains in the dishwasher above the filters" under "Problem"... - Page 31 Troubleshooting Problem Possible causes Action Cannot close door. The baskets are not correctly Check that the baskets are positioned. correctly positioned horizontally. Check that the dishes are not blocking the baskets from sliding properly into place. The door lock does not click into Check the door lock.
- Page 32 Troubleshooting Problem Possible causes Action The dishes are not clean. The spray arms do not rotate. Check that the dishes are not blocking the spray arms. Spray arm holes or bearings Clean the spray arms. See the blocked. chapter Care and maintenance instructions.
- Page 33 Troubleshooting Problem Possible causes Action Spots or films on the dishes. Incorrect rinse aid dosage See the chapter Settings. setting. The TAB setting is activated and Switch all-in-one detergents or all-in-one detergent with deactivate the TAB setting and insufficient drying effect is being fill up with separate rinse aid.
- Page 34 Troubleshooting Problem Possible causes Action Water remains in the dishwasher The filters are clogged. Clean the coarse and fine filters. above the filters. The filters are not fitted correctly. Check that the filters are fitted correctly. See the chapter Care and maintenance instructions.
- Page 35 Troubleshooting Problem Possible causes Action The dishes are not dry enough. The Auto door open option is not Activate the Auto door open activated. option. The dishwasher is not fully Fully load the dishwasher. loaded. Rinse aid needs filling up or Fill up the rinse aid compartment dosage is set too low.
-
Page 36: Installation Instructions
Installation instructions It is important that you read through and follow the instructions and directions below. Conduct installation and connection in accordance with the separate installation instructions. *Remove lock nuts for an installed height of 33 13/16'' (859 mm). Integrated door panel length. *** Fit the trim kit if the widths of 24'' (609 mm) is required. -
Page 37: Setup
Installation instructions Setup • The recess and connection dimensions are included in the separate installation instructions. Check that all dimensions are correct before starting the installation. Note that the height of the integrated door panel can be adjusted to match other fittings. •... -
Page 38: Connection To Water Supply
Installation instructions The drain hose can also be connected to a connection nipple on the sink unit's water trap. The connection nipple must have an internal diameter of at least 1/2'' (14 mm). The drain hose may be extended by a maximum of 87" (2.2 m) (the total length of the drain hose must not exceed 177"... - Page 39 Installation instructions Grounding instructions This appliance must be grounded. In the event of a malfunction or breakdown, grounding will reduce the risk of electric shock by providing a path of least resistance for electric current. This appliance is equipped with a power cord fitted with an equipment grounding conductor and a grounding plug. The plug must be plugged into an appropriate power outlet that is installed and grounded in accordance with all local codes and ordinances.
-
Page 40: Service And Warranty
2. Service calls to correct the installation of the ASKO Product, to instruct you on how to use the ASKO Product, to replace or repair house fuses, or to correct house wiring or plumbing. -
Page 41: Asko Customer Care
THAN ACTUAL DAMAGES AND IN NO EVENT FOR DAMAGES IN EXCESS OF THE PRICE PAID FOR THE ASKO PRODUCT AS TO WHICH A CLAIM IS MADE. Some jurisdictions do not allow the exclusion or limitation of incidental, consequential or other damages, so these limitations and exclusions may not apply to you. -
Page 42: Technical Information
Technical information Technical data Height: 33 13/16 - 35 15/16" (859-912 mm) Width: 23 1/2'' (596 mm) Depth: 21 13/16'' (554 mm) Weight: 110 lb (50 kg) Water pressure: 4.2-140 psi (0.03-1.0 MPa) Electrical connection: See serial number plate Rated power: See serial number plate 24'' (609 mm) with the trim kit. - Page 43 US.ASKO.COM • CA.ASKO.COM • ASKO.COM/MX 876001 We reserve the right to make changes.
