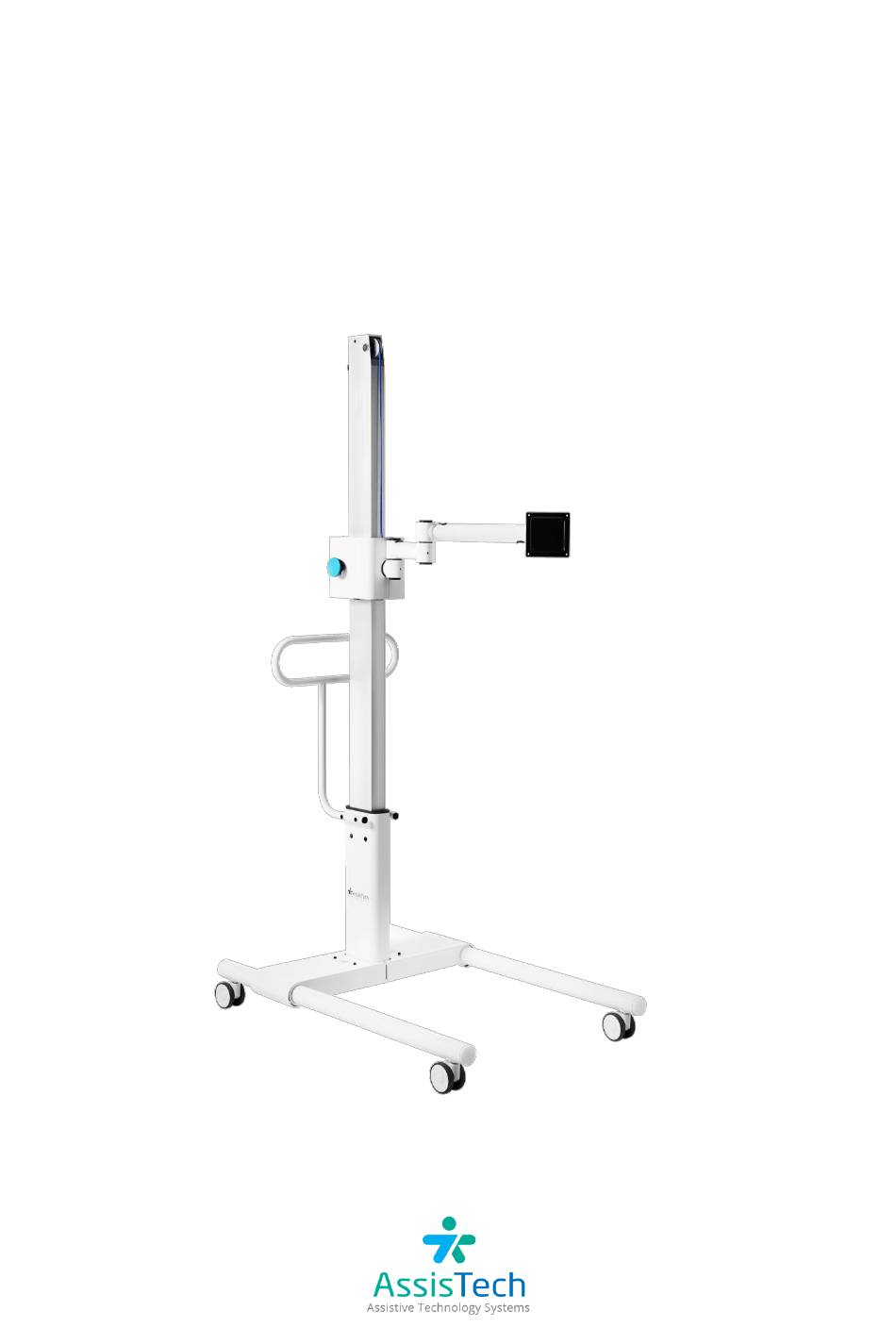

- Page 1 Operation Manual Mobile Stand PRO 2.0...
-
Page 2: Table Of Contents
Preparation for work ........................8 Assembly of the product ........................8 Product life ............................13 Warranty ............................13 Exclusion from warranty ........................ 13 Explanation of symbols on the product ..................14 Page 1 of 14 VERSION 2_01.10.2021 © AssisTech Sp. z o.o. 2021... -
Page 3: Product Description
Otherwise the product may be damaged or the user may be injured. Making technical changes to the stand or its improper use will void the warranty. Page 2 of 14 VERSION 2_01.10.2021 © AssisTech Sp. z o.o. 2021... -
Page 4: Contents Of The Package
C - Mast with head F1, F2 - Base Covers Screws Spanner and allen wrenches S1 - 8 pcs S3 - 4 pcs S2 – 4 pcs S4 – 4 pcs Page 3 of 14 VERSION 2_01.10.2021 © AssisTech Sp. z o.o. 2021... -
Page 5: Indications For Use
(8 kg) is not exceeded and the assembly method is observed. 6. System positioning relative to the patients Remember to always tighten the brake on the head when moving with stand when approaching the patient. Page 4 of 14 VERSION 2_01.10.2021 © AssisTech Sp. z o.o. 2021... - Page 6 Position the stand for optimal placement of the device patient as shown in the figure below. Page 5 of 14 VERSION 2_01.10.2021 © AssisTech Sp. z o.o. 2021...
-
Page 7: Contraindications
The product must not be: used in areas where flammable gases or vapours of flammable substances are present, exposed to weather conditions, exposed to moisture and liquids, Page 6 of 14 VERSION 2_01.10.2021 © AssisTech Sp. z o.o. 2021... -
Page 8: Technical Data
It is forbidden to stand on the stand during operation, storage and transport of the kit between rooms. Transport tripod with folded arm (indicated in the picture below). 11. Technical data Weight: 35 kg Maximum load: 8 kg Page 7 of 14 VERSION 2_01.10.2021 © AssisTech Sp. z o.o. 2021... -
Page 9: Disposal
1) Connect the column (A) to the base skids (B1 and B2) by sliding pieces B1 and B2 over the column. ✔ 2) To bolt the column (A) to the base skids (B1 and B2) use eight S1 bolts, four for each skid with wheels. Page 8 of 14 VERSION 2_01.10.2021 © AssisTech Sp. z o.o. 2021... - Page 10 4) Screw the handle (D) to the column (A) with four screws S3 (two screws on each side; into the upper holes). ✔ Page 9 of 14 VERSION 2_01.10.2021 © AssisTech Sp. z o.o. 2021...
- Page 11 B1, and then connect the cables from the bottom of the item. 7) Attach the base covers (F1 and F2) using two screws S2 for each cover. Page 10 of 14 VERSION 2_01.10.2021 © AssisTech Sp. z o.o. 2021...
- Page 12 To immobilize the stand lock the castor set by stepping on the brake lever in both rear castors. Lift the brake levers in both castors to unlock the castors. Page 11 of 14 VERSION 2_01.10.2021 © AssisTech Sp. z o.o. 2021...
- Page 13 To install the device on the arm, fasten it with four screws as shown in the figure below. Use only the supplied screws. Screws that are too long can damage the computing unit. Page 12 of 14 VERSION 2_01.10.2021 © AssisTech Sp. z o.o. 2021...
-
Page 14: Product Life
use of spare parts other than original spare parts, mechanical damage caused by using the product with excessive load. Page 13 of 14 VERSION 2_01.10.2021 © AssisTech Sp. z o.o. 2021... -
Page 15: Explanation Of Symbols On The Product
Information important for user safety Read the operation manual The product complies with the requirements of the EU Regulation (EU) 2017/745 (MDR) for medical devices Page 14 of 14 VERSION 2_01.10.2021 © AssisTech Sp. z o.o. 2021...
